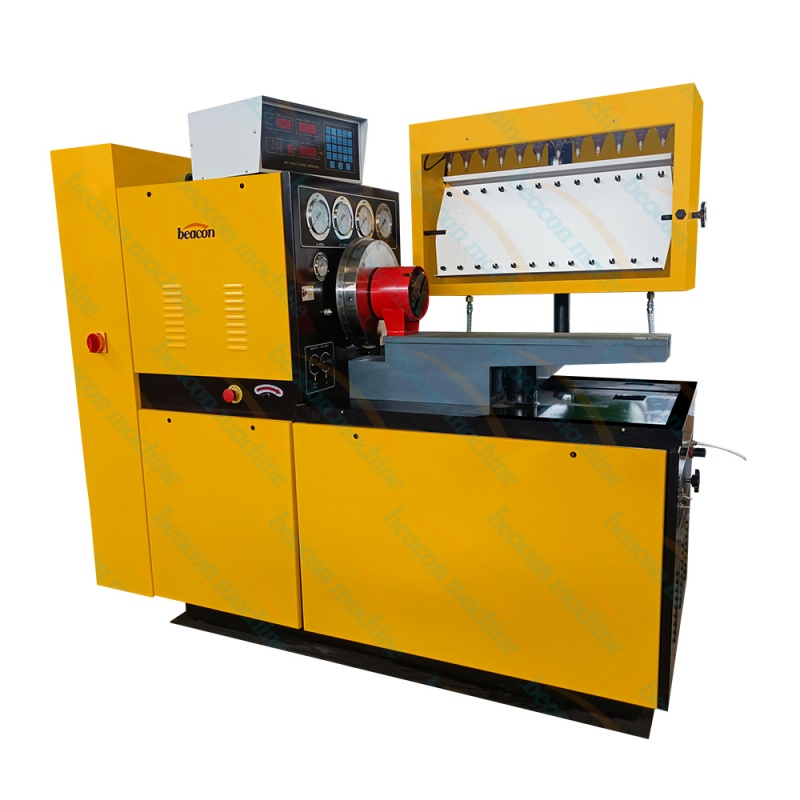

12 Psb Calibration diesel Fuel Injector Pump test Bench Testing Equipment 12PSB

12 Psb Calibration diesel Fuel Injector Pump test Bench Testing Equipment 12PSB

12PSB MAIN FUNCTION

1.Measurement of each cylinder delivery at any speed.

2.Test point and interval angle of oil supply of injection pump.

3.Checking and adjust the mechanical governor.

4.Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump.
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device. (on request)

10. Checking the sealing of injection pump body

11. Install tube of auto-sucking oil supply can check on oil supply pump.(including VE pump)

12. Checking the travel of stroke.(on request)

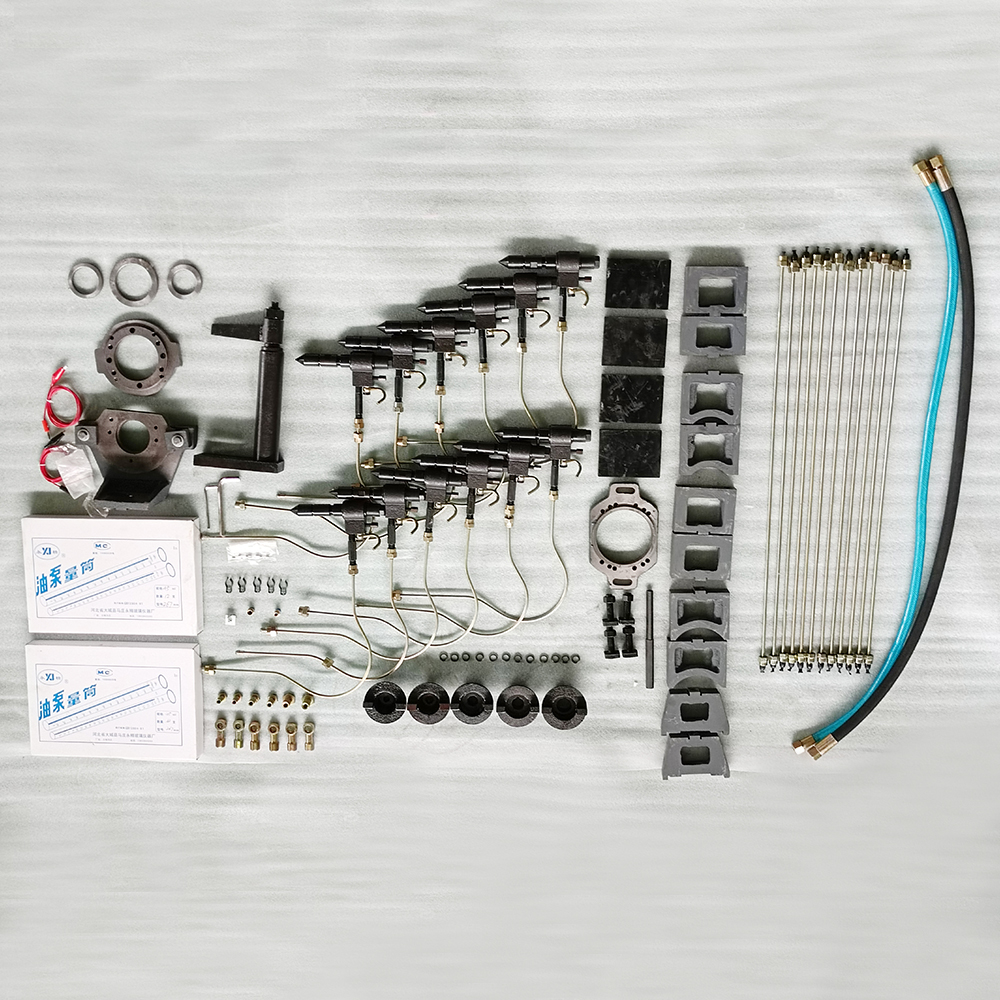

Accessories

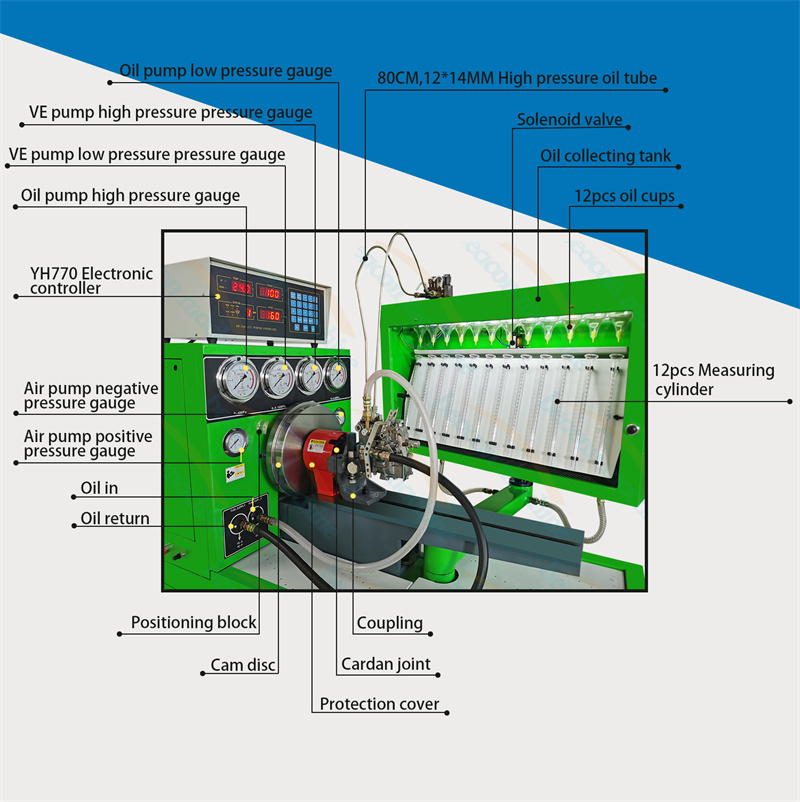

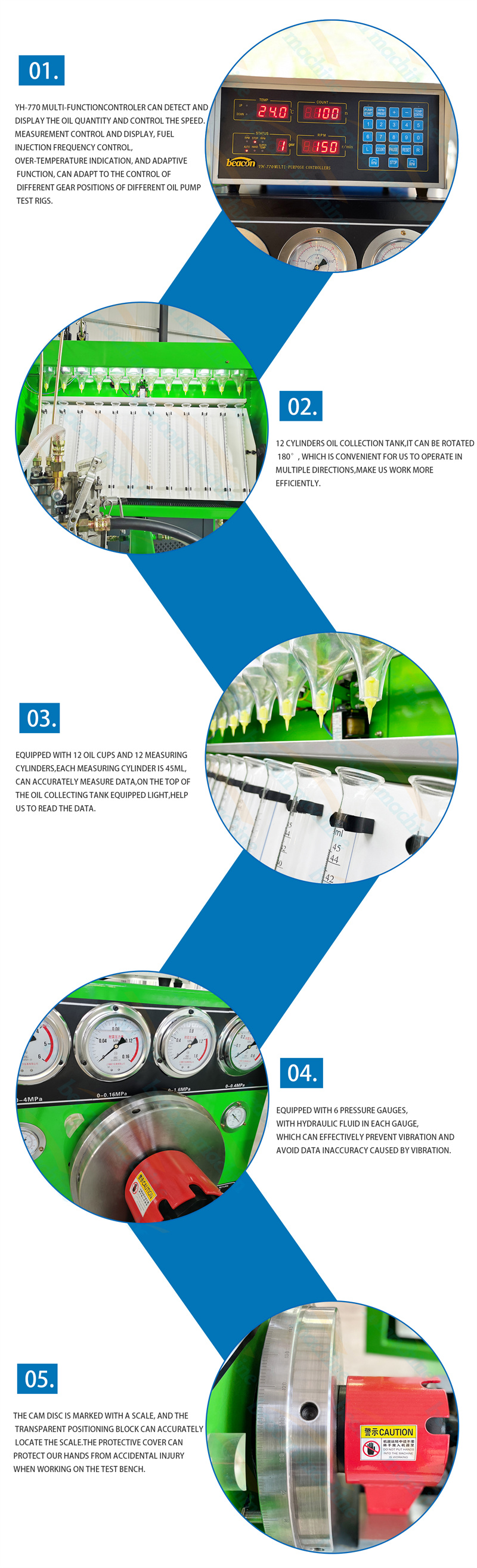

Details

Compatible Pump & Injector Reference

The Euro II mechanical injection pump calibration test bench is the classic platform for in-line and distributor mechanical fuel injection pumps, with optional cam boxes that extend coverage to unit injectors and common rail. Use this list to confirm coverage before quoting customers.

Capabilities, Power Options & Optional Modules

This is the classic 12-cylinder Euro II mechanical pump test bench, the workhorse of diesel injection shops worldwide. It calibrates mechanical in-line and distributor pumps, and with optional cam boxes it extends into unit injector and common rail territory.

Standard Capabilities

• In-line mechanical pump calibration (Euro II standard)

• Distributor pump testing (VE type)

• 12-cylinder drive for large mechanical pumps

• Built-in oil supply, measuring, and temperature control

• Digital tachometer and stroke measurement

Power Options (12 cylinders)

• 7.5KW / 11KW / 15KW / 18.5KW / 22KW

• 380V 3-phase or 220V single-phase (country dependent)

Optional Extensions

• TU-A / TU-B cam boxes: Detroit 60 series unit injectors (125mm)

• TU-C / TU-D / TU-E cam boxes: EUI EUP unit injectors (VW T5 PD, MAN, Mercedes, Cummins)

• Beijing system (BEI-B) with screen: EUI EUP data + remote capability

• Common rail option: Bosch 0445110183 / 0445110369 / 0445110441 / 0445110557 / 0445110698, Denso 095000-6471, Delphi 28353991

• Full Euro II accessory kit (BH6PA110 / 127-8207)

Note: as a mechanical Euro II platform this bench is not remotely operable (no Beijing system on the mechanical side). The optional BEI-B system adds screen + data for EUI EUP work.

Euro II Mechanical Injection Pump Test Bench - Frequently Asked Questions

1. What pumps does this bench calibrate?

It is the classic Euro II mechanical in-line and distributor pump calibration platform - BH6PA110, 127-8207 (CAT in-line), and VE-type distributor pumps. With optional cam boxes it extends to EUI EUP unit injectors (VW T5 PD, Detroit 60, MAN / Mercedes, Cummins).

2. What power options are available?

12-cylinder drive with motor options: 7.5KW / 11KW / 15KW / 18.5KW / 22KW, in 380V 3-phase or 220V single-phase. Note: there is no 17.5KW motor - customers asking for 17.5KW usually mean 18.5KW.

3. Can this bench test common rail injectors?

With the optional common rail capability it covers Bosch 0445110183 (Fiat 1.3 Multijet), 0445110369, 0445110441, 0445110557, 0445110698, Denso 095000-6471 (John Deere 6090), and Delphi 28353991 (Mercedes).

4. Can it test EUI EUP unit injectors?

Yes, with a cam box (TU-A/TU-B for Detroit 60, TU-C/TU-D/TU-E for VW/MAN/Mercedes/Cummins) plus the Beijing system (BEI-B with screen recommended) for the test data.

5. Is this bench remotely operable?

No. As a mechanical Euro II platform it does not support remote operation. Machines with the Beijing system (CR919, CR708, EPS205 etc.) support remote operation; the 12PSB-style mechanical bench does not.

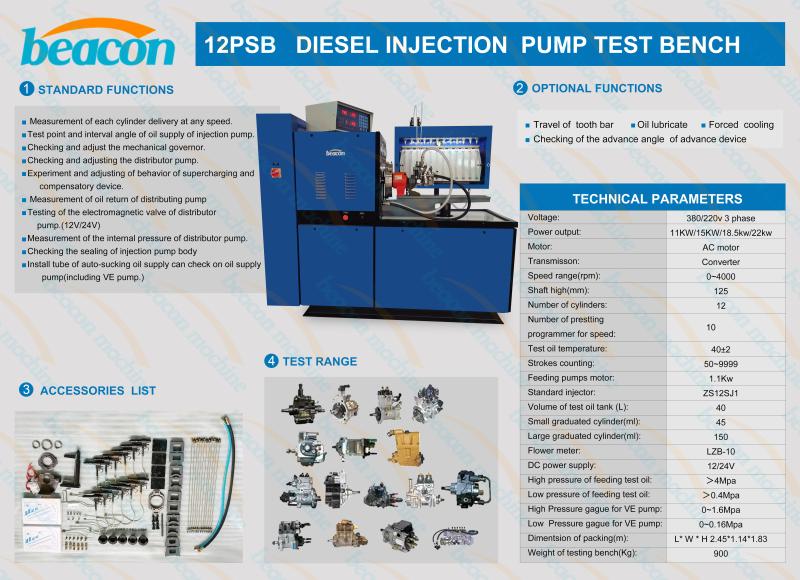

12PSB

11 KW 380/220V 1/3 phase 12 cylinder

Standard function:

1.Measurement of each cylinder delivery at any speed.

2.Test point and interval angle of oil supply of injection pump.

3.Checking and adjust the mechanical governor.

4.Checking and adjusting the distributor pump.

5..Experiment and adjusting of behavior of supercharging and compensatory device.

6.Measurement of oil return of distributing pump.

7.Testing of the electromagnetic valve of distributor pump.(12V/24V)

8.Measurement of the internal pressure of distributor pump.

9.Checking of the advance angle of advance device. (on request)

10.Checking the sealing of injection pump body

11.Install tube of auto-sucking oil supply can check on oil supply pump.(including VE pump)

12.Checking the travel of stroke.(on request)
