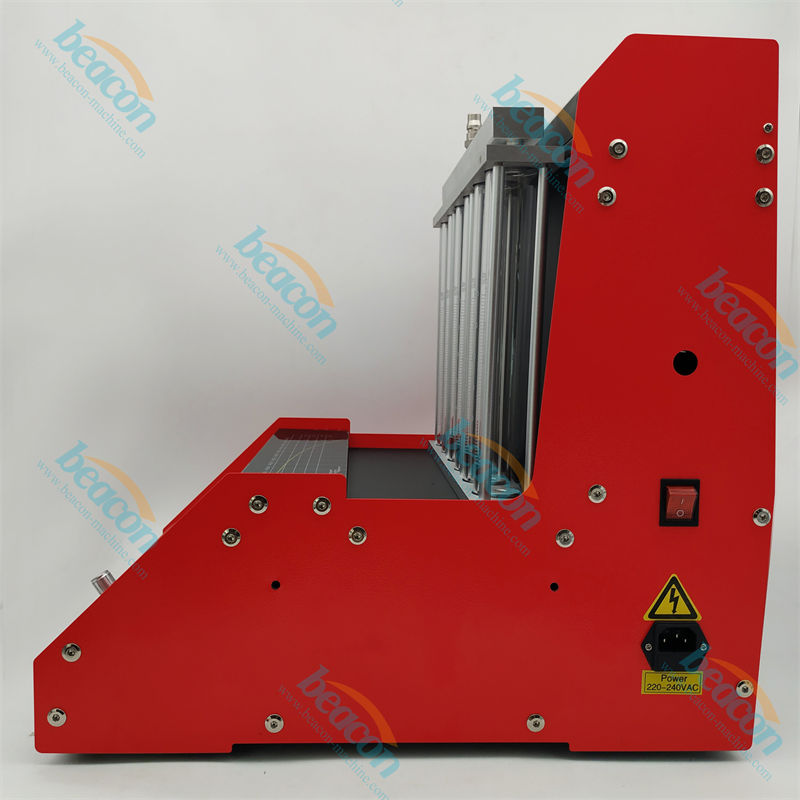

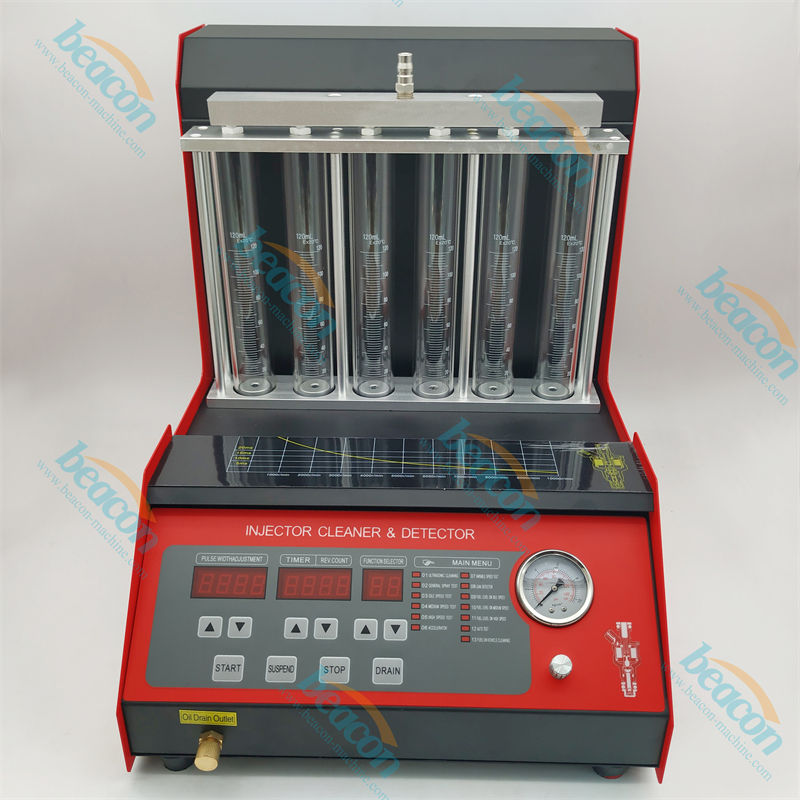

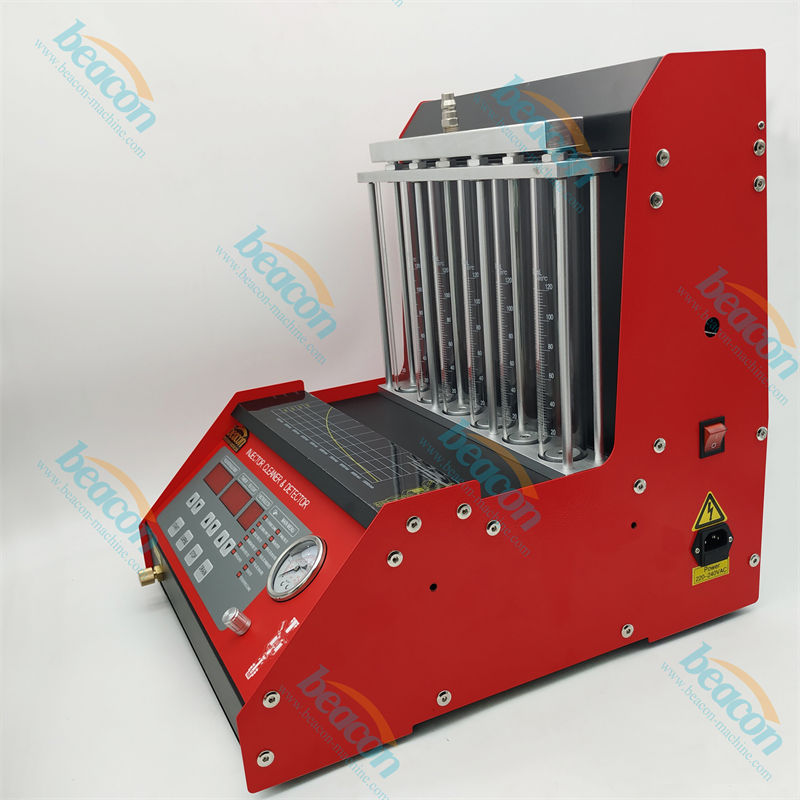

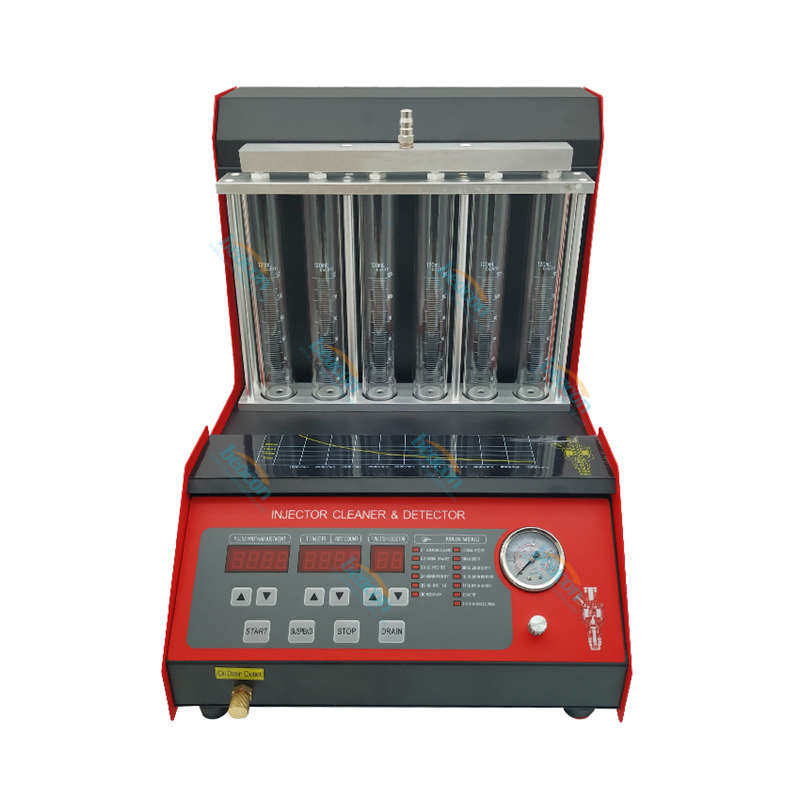

BC-6C Auto 6 Cylinders Ultrasonic Gasoline Fuel Injector Cleaner and Tester

  • {BC-6C Auto 6 Cylinders Ultrasonic Gasoline Fuel Injector Cleaner and Tester}
  • {BC-6C Auto 6 Cylinders Ultrasonic Gasoline Fuel Injector Cleaner and Tester}
  • {BC-6C Auto 6 Cylinders Ultrasonic Gasoline Fuel Injector Cleaner and Tester}
  • {BC-6C Auto 6 Cylinders Ultrasonic Gasoline Fuel Injector Cleaner and Tester}

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

BC-6C Auto 6 Cylinders Ultrasonic Gasoline Fuel Injector Cleaner and Tester

The BC-6C Auto 6 Cylinders Fuel Injector Cleaner and Tester is a high-performance diagnostic system designed to clean and test fuel injectors of various cars manufactured worldwide. It integrates ultrasonic cleaning technology with advanced fuel injector diagnostic capabilities to improve engine stability, reliability, and reduce pollution. The machine can automatically simulate engine conditions under various pulse widths and rotation speeds, allowing for a thorough observation of injector performance during acceleration and deceleration.



BC-6C Auto 6 Cylinders Ultrasonic Gasoline Fuel Injector Cleaner and Tester Advantage

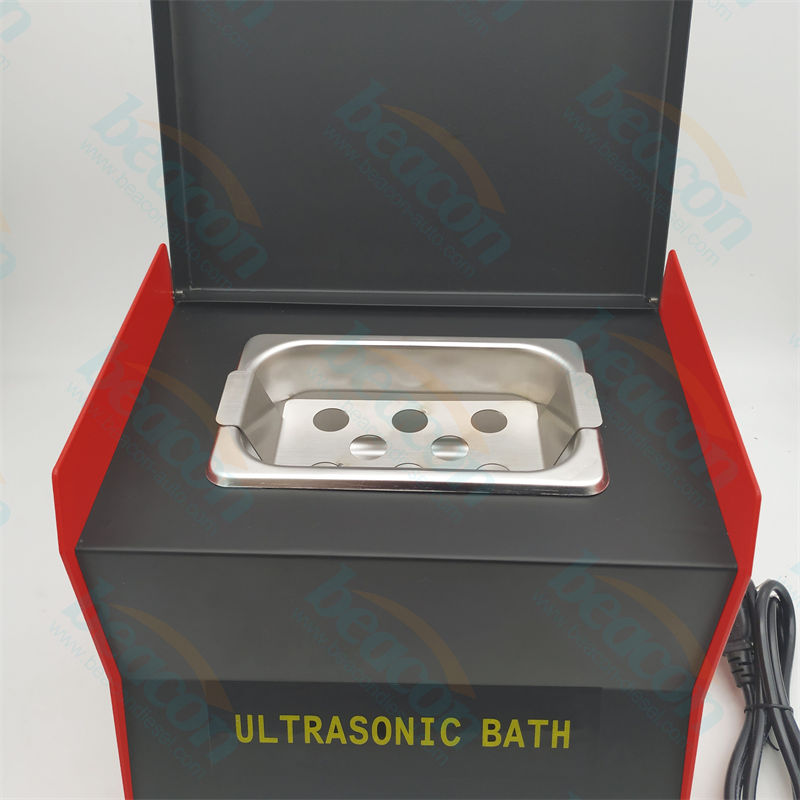

Multifunctional Cleaning: Supports various cleaning modes including reverse flushing, flush-back cleaning, ultrasonic flushing, and disaffiliation-free flushing.


6-Cylinder Simultaneous Testing: Can test and clean up to six fuel injectors at once, significantly improving work efficiency.


Automatic Simulation: Automatically simulates the overall engine process under different pulse widths and speeds (0-10,000 r/min).


Manual Customization: Allows users to manually set time, pulse width, and rotation speed for specialized performance observation.


High Precision Diagnostics: Can accurately determine the shortest on-off cycle and the overall quality of each injector.


Environmentally Friendly: Designed to reduce vehicle pollution by restoring injectors to optimal working condition through deep ultrasonic cleaning.


parameter

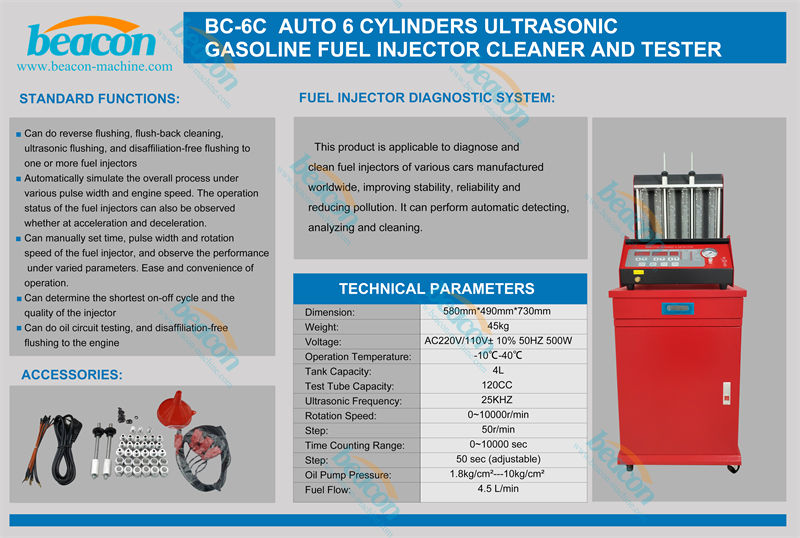

Technical ParameterSpecifications (Model BC-6C)
Dimension580mm * 490mm * 730mm
Weight45 kg
Voltage / PowerAC 220V/110V ± 10% 50Hz, 500W
Ultrasonic Frequency25 KHZ
Rotation Speed Range0 ~ 10,000 r/min (Step: 50 r/min)
Time Counting Range0 ~ 10,000 sec (Step: 50 sec)
Pulse Width Range0.1 ~ 20 ms (Step: 0.1 ms)
Tank Capacity4 L

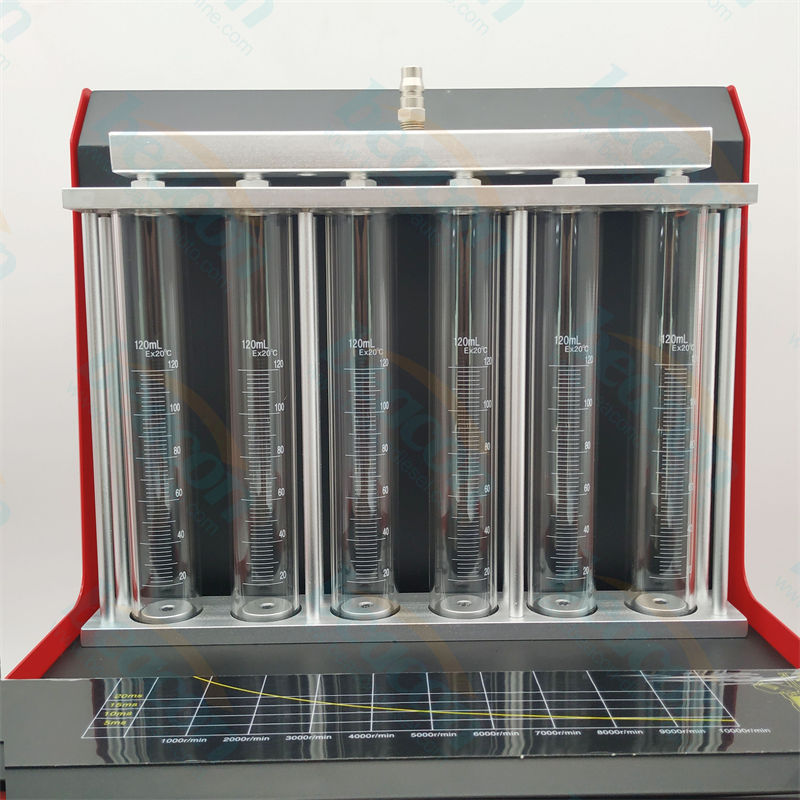

Test Tube Capacity120 CC
Operation Temperature-10°C ~ 40°C
