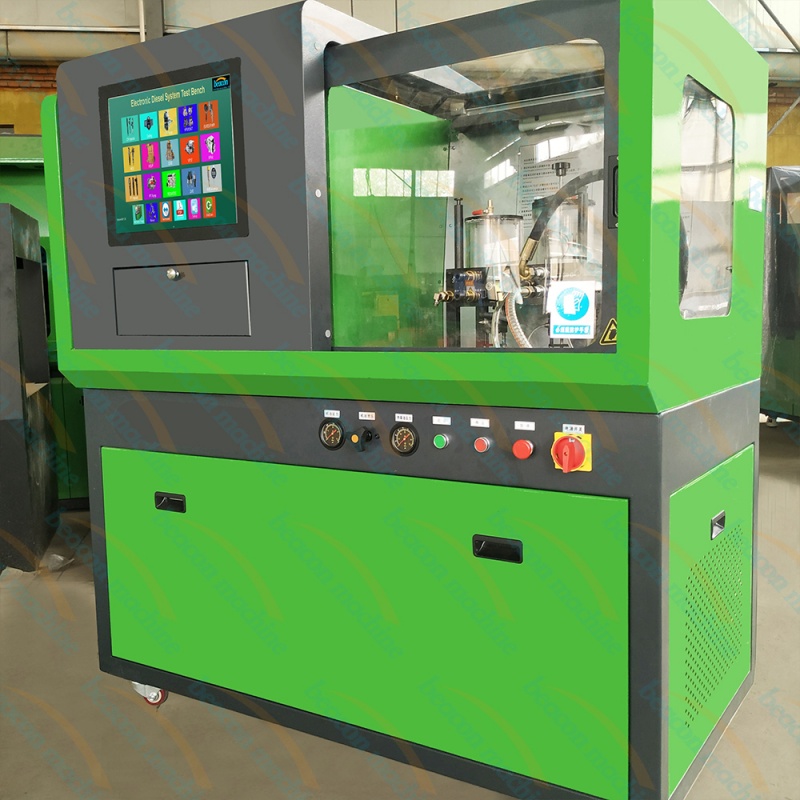

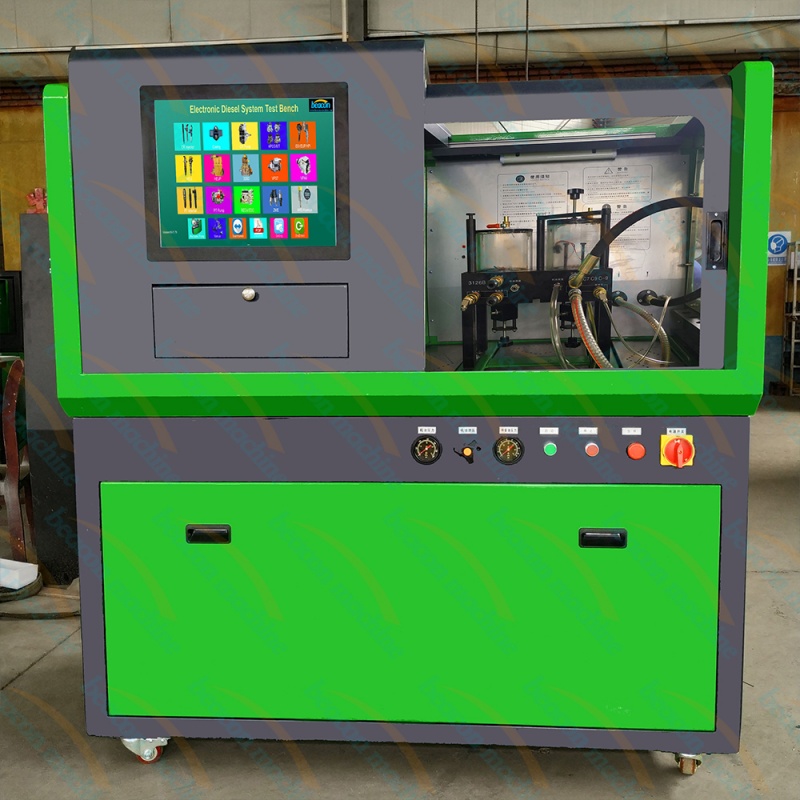

BC-CR318S Professional HEUI and High Pressure Common Rail Injector Test Bench

BC-CR318S Professional HEUI and High Pressure Common Rail Injector Test Bench
The BC-CR318 / BC-CR318S is a high-performance diesel fuel system diagnostic platform featuring a unique dual-motor configuration (4KW+4.5KW). It is specifically designed to test both high-pressure common rail injectors and HEUI (Hydraulic Electronic Unit Injectors), such as those found in Caterpillar C7/C9 engines. Controlled by an industrial computer with a Windows-based interface, it provides a stable rail pressure up to 240Mpa. The BC-CR318S model offers an upgraded removable screen for better workshop flexibility, making it a comprehensive tool for advanced diesel engine fuel system maintenance and calibration.

Supported High-Frequency Injectors, Engines and Pumps

Brand Coverage

• Bosch CR Systems: CP1, CP2, CP3 — Mercedes Actros, FAW J6P, VW

• Denso CR Systems: HP3, HP4 — Toyota Hilux, Isuzu, Hino

• HEUI Systems (CAT): HEUI C7/C9, 3126B, FORD 6.0 — Caterpillar C7 C9 C-9 3126, Ford 6.0 Powerstroke, Navistar DT466

• Siemens / VDO: Piezo injectors — Ford 6.0, Cummins

Frequently Asked Questions

What makes the BC-CR318S different from other test benches?

It features a unique dual-motor configuration (4KW + 4.5KW) that tests both high-pressure common rail injectors and HEUI injectors in a single machine.

Which HEUI engines are supported?

HEUI systems from Caterpillar C7/C9 engines and Ford 6.0 Powerstroke are supported.

What rail pressure can it provide?

The machine provides stable high rail pressure controlled by an industrial computer with a Windows-based interface.

Can it test both solenoid and piezo injectors?

Yes, it supports standard common rail solenoid injectors and piezoelectric injectors from Bosch, Denso, Delphi and Siemens.

Is a computer included?

Yes, it comes with an industrial computer running a Windows-based interface for professional testing.

• HEUI & Common Rail Dual Support: Specialized capabilities for testing HEUI systems (Caterpillar, etc.) alongside standard high-pressure common rail injectors.

• Dual Motor Power System: Equipped with dual motors (4KW + 4.5KW) to ensure independent and stable pressure control for different fuel systems.

• Removable Display (BC-CR318S): Features a high-definition removable screen for improved ergonomics and operator convenience in the workshop.

• Wide Pressure Range: Delivers a maximum rail pressure of 180-240Mpa, meeting the testing standards of the latest diesel technologies.

• Advanced Cooling System: Integrated with a strong cooling wind and heating system to maintain a constant oil temperature (40±2°C) for accurate results.

• Global Brand Compatibility: Comprehensive database for testing and calibrating Bosch, Denso, Delphi, Siemens, and Caterpillar fuel injectors.

• Industrial Reliability: Built with a robust frame (526kg) and industrial-grade electronics for long-term, heavy-duty workshop use.

• High-Frequency Coverage: Compatible with Bosch 0445116018, 0445110183, 0445110352, 0445110369, 0445110441, 0445110557, 0445110698, 0445120288, Denso 094000-0342, 095000-0760, 095000-5471, 095000-7950, 23670-30450, Delphi 28353991, EJBR0181A, 21569200, 28230973 and Siemens BK2Q-9K546-AG, 5WS4xxxx — the most searched injector models for Google visibility.
