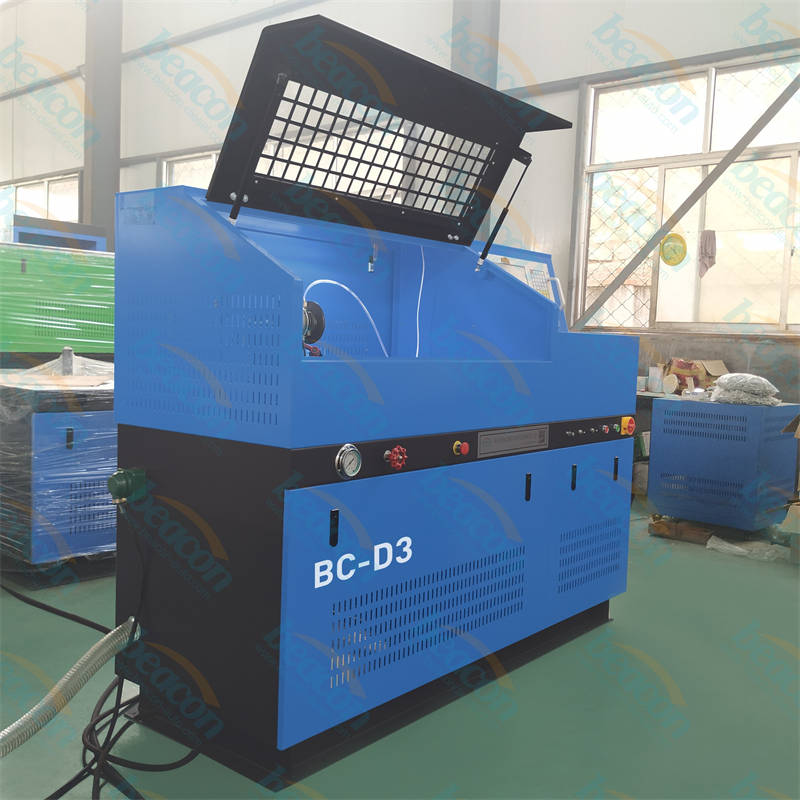

BC-D3 High Speed VSR Turbocharger Core Balancing Machine

BC-D3 High Speed VSR Turbocharger Core Balancing Machine

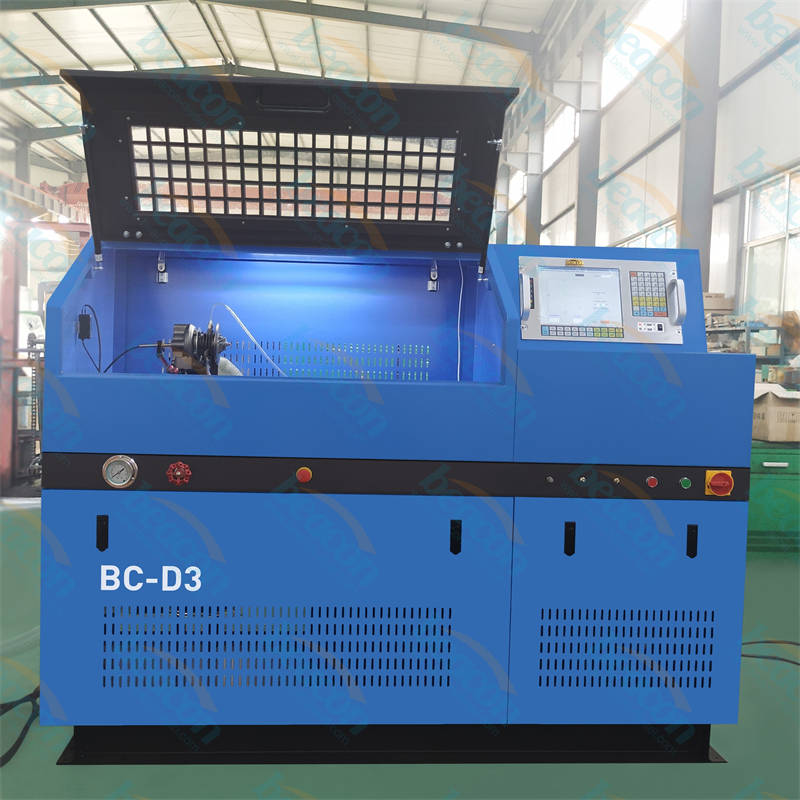

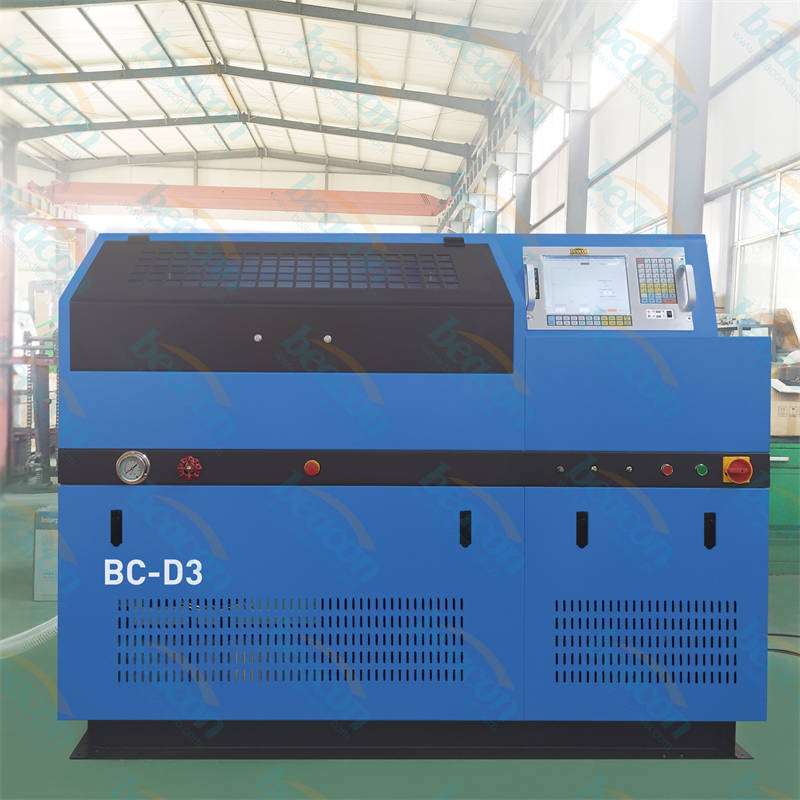

The BC-D3 is a fully automated, high-speed VSR (Vibration Sorting Rig) balancing machine specifically designed for turbocharger shafts and cores. By eliminating manual operator variances, the BC-D3 ensures high repeatability and compatibility in testing results. It features a sophisticated digital control system based on an industrial computer and a 15-inch LCD monitor, allowing operators to achieve precision balancing at speeds up to 200,000 RPM.

Balancing Applications Across Industries

Engineered for production workshops, repair shops, and remanufacturing lines, the balancing platform supports turbocharger rotors, micro-motor armatures, fan impellers, pump impellers, and various high-speed rotating parts. Hard-bearing and soft-bearing configurations cover light to heavy workpieces.

Hard-Bearing and Soft-Bearing Technology

Hard-bearing balancing operates at or below the first resonance of the suspension, providing high stability and tolerance for heavy workpieces. Soft-bearing balancing runs above resonance with higher sensitivity, ideal for lightweight rotors and small high-speed components such as turbocharger cores.

Universal Joint Drive and Gimbal Drive

Universal joint drive enables accurate balancing of long shafts and irregular workpieces by transmitting rotation through flexible couplings. Gimbal drive supports a wider range of rotor geometries including pulleys, flywheels, and multi-stage impellers.

Precision Measurement and Unbalance Reduction

Calibrated measuring instrumentation achieves residual unbalance levels of typically ≤1 g.mm/kg, with unbalance reduction ratio ≥95 percent. Real-time display of magnitude and phase supports single-plane and dual-plane correction.

FAQ — Frequently Asked Questions

Q1. What is the difference between hard-bearing and soft-bearing balancing?
Hard-bearing operates below the first suspension resonance and offers greater stability for heavier rotors. Soft-bearing operates above resonance and provides higher sensitivity for lightweight components such as turbocharger cores.

Q2. Which drive method suits long shafts and irregular rotors?
Universal joint drive and gimbal drive handle long shafts, pulleys, and irregular geometries. Belt drive is typically used for compact lightweight rotors.

Q3. What workpiece mass range is supported?
The platform covers a wide mass range from sub-kilogram rotors up to heavy industrial workpieces depending on the model selected.

Q4. Can the balancing speed be adjusted during testing?
Yes. Balancing speed is continuously variable across the supported RPM range to match the rotor design and weight distribution.

Q5. What is the typical unbalance reduction ratio?
Unbalance reduction ratio of 95 percent or higher is achievable under standard calibration conditions, with residual unbalance typically below 1 g.mm/kg.

Ultra-High Speed: Frequency-controlled speed ranging from 0 to 200,000 R/Min, adjustable based on specific turbocharger requirements.

Fully Automated: Minimizes human error, ensuring highly accurate and stable test results every time.

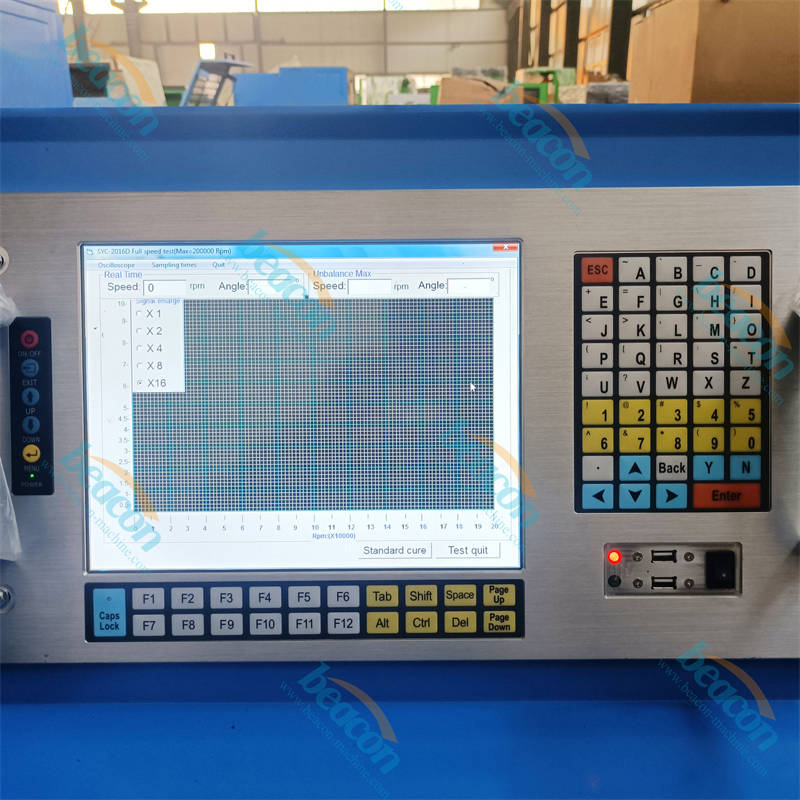

Advanced Interface: Equipped with a 15-inch LCD color monitor and professional software for direct human-machine dialogue.

Custom Memory Mode: Allows free choice of parameters and custom memory recording for efficient repetitive testing.

Pneumatic Handwheel: Includes a compact pneumatic handwheel for de-emphasis, making the balancing process easy and efficient.

Universal Compatibility: Comes with complete parts and accessories to meet the requirements of the vast majority of turbochargers on the market.

Remote Diagnostics

The balancing platform supports remote diagnostics sessions, allowing our engineers to connect via secure remote link for parameter calibration, vibration analysis review, and unbalance correction tuning. Operators receive live guidance on test setup, single-plane and dual-plane balancing procedures, and preventive maintenance scheduling without interrupting production.

12 Months Warranty

Standard warranty covers 12 months from the date of commissioning, including replacement of defective electronic and mechanical components, drive system repair, and measuring sensor calibration. Extended warranty and on-site service packages are available for high-utilization production environments.

Installation and Training

On-site installation includes foundation alignment, drive system calibration, vibration sensor calibration, and operator training. Training covers single-plane and dual-plane correction methods, unbalance reduction ratio evaluation, and preventive maintenance routines.
