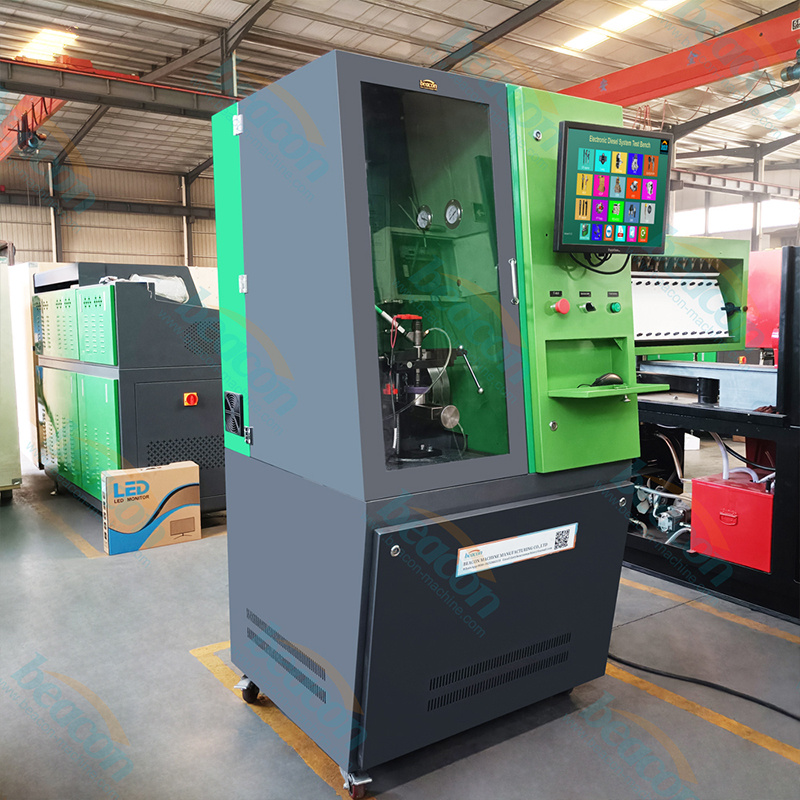

BC300 Full Function Common Rail Injector Pump and EUI EUP Test Bench

Full Function Common Rail Injector Pump and EUI Test Bench EUP
el BC300 Series (CR300) is a comprehensive diagnostic platform designed for advanced diesel service centers. It integrates multiple testing capabilities into a single machine, covering High Pressure Common Rail Injectors, Common Rail Pumps and EUI/EUP (Electronic Unit Injectors/Pumps). Controlled by an industrial computer with an easy-to-use interface, it simulates engine ECU signals in real time to evaluate performance under all working conditions. The system features high-precision flow sensors, automatic data logging and an extensive database, making it the ultimate all-in-one solution for calibrating Bosch, Denso, Delphi, Siemens and fuel systems. Caterpillar.

␟TAG 31␟

␟T AG42␟

Supported High-Frequency Injectors, Engines and Pumps

Brand Coverage

• Bosch CR Systems: CP1, CP2, CP3, CP4 — Mercedes Actros, FAW J6P, VW

• Denso CR Systems: HP3, HP4, HP0 — Toyota Hilux, Isuzu, Komatsu

• EUI/EUP Systems: CAT C13/C15, Detroit 60, Cummins M11/ISX — Caterpillar, Detroit Diesel, Cummins

• HEUI Systems: C7/C9, 3126 — Caterpillar, Ford 6.0

Frequently Asked Questions

What can the BC300 test?

The BC300 series integrates high-pressure common rail injectors, common rail pumps and EUI/EUP injectors into one comprehensive platform.

Does it simulate ECU signals?

Yes, controlled by an industrial computer, it simulates engine ECU signals in real time to evaluate performance under all working conditions.

Which brands are supported?

Bosch, Denso, Delphi, Siemens common rail injectors plus CAT, Detroit, Cummins EUI/EUP systems.

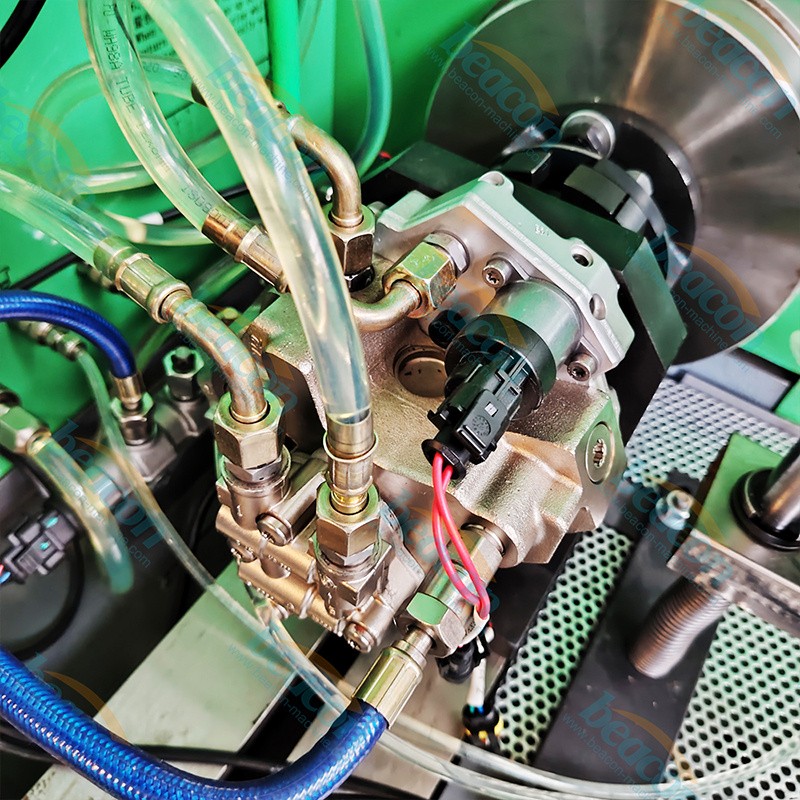

Can it test common rail pumps?

Yes, it includes common rail pump testing capability alongside injector testing.

Is it suitable for advanced diesel service centers?

Yes, it is designed for advanced diesel service centers requiring multi-system diagnostic capability in one machine.

• All-in-one diagnostic solution: Combines tests for common rail injectors, high pressure pumps and EUI/EUP systems in one testing station work.

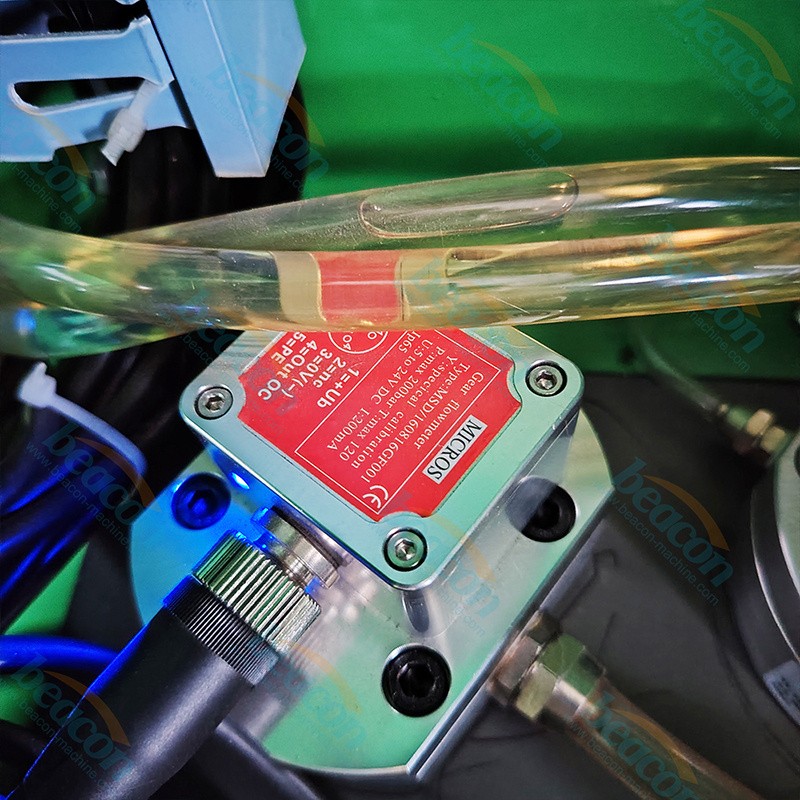

• Precision Flow Measurement: Uses high-precision electronic sensors for automatic recording of oil quantity, ensuring repeatable accuracy and laboratory.

• Extensive database: Preloaded with miles of standard test drawings for major global brands, supporting search and data editing simple.

• Automated test modes: Features "Normal test" for a complete analysis and "Quick Test" for quick diagnostics, significantly improving workshop efficiency.

• EUI/EUP Offset Coding: Support the production and input of original offset codes for EUI/EUP systems to restore the performance of factory.

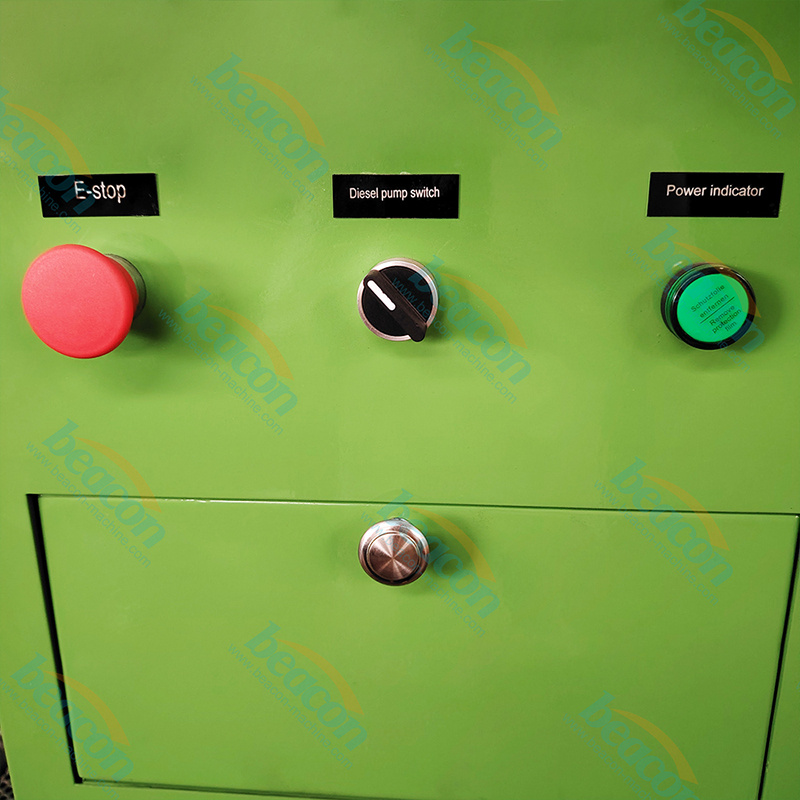

• Robust Protection System: Integrated safety protocols including pressure overload protection and electrical connection monitoring to ensure operator and customer safety. equipment.

• Easy-to-use software: Windows-based operating system with real-time monitoring of pressure, temperature and delivery volume of the rail.

• High-Frequency Coverage: Compatible with Bosch 0445116018, 0445110183, 0445110352, 0445110369, 0445110441, 0445110557, 0445110698, 0445120288, Denso 094000-0342, 095000-0760, 095000-5471, 095000-7950, 23670-30450, Delphi 28353991, EJBR0181A, 21569200, 28230973 and Siemens BK2Q-9K546-AG, 5WS4xxxx — the most searched injector models for Google visibility.
