CR303 Precision Common Rail Injector Test Bench for Piezo and Solenoid Injectors

CR303 Precision Common Rail Injector Test Bench for Piezo and Solenoid Injectors

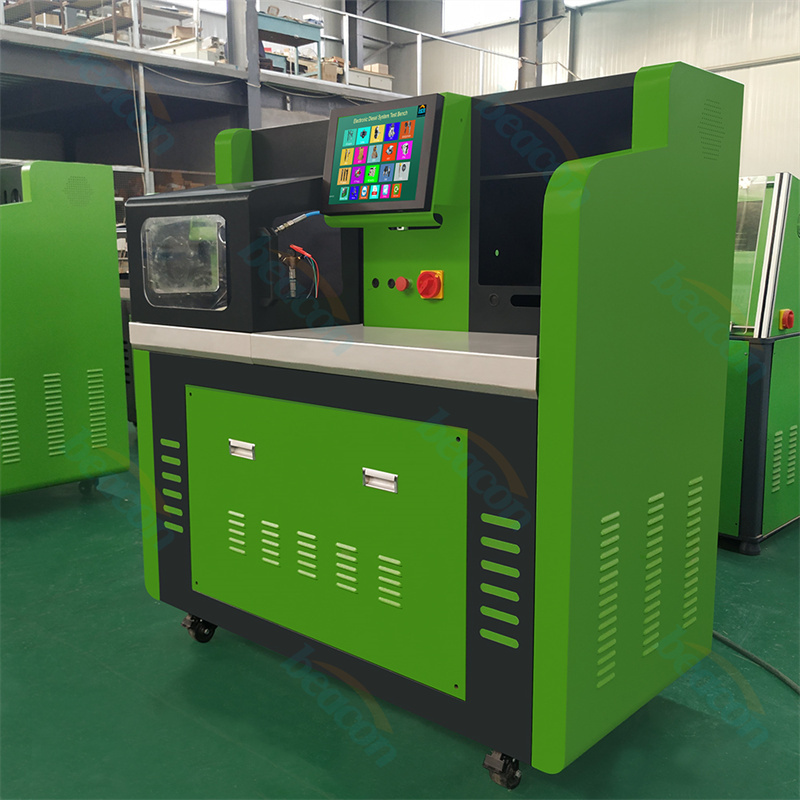

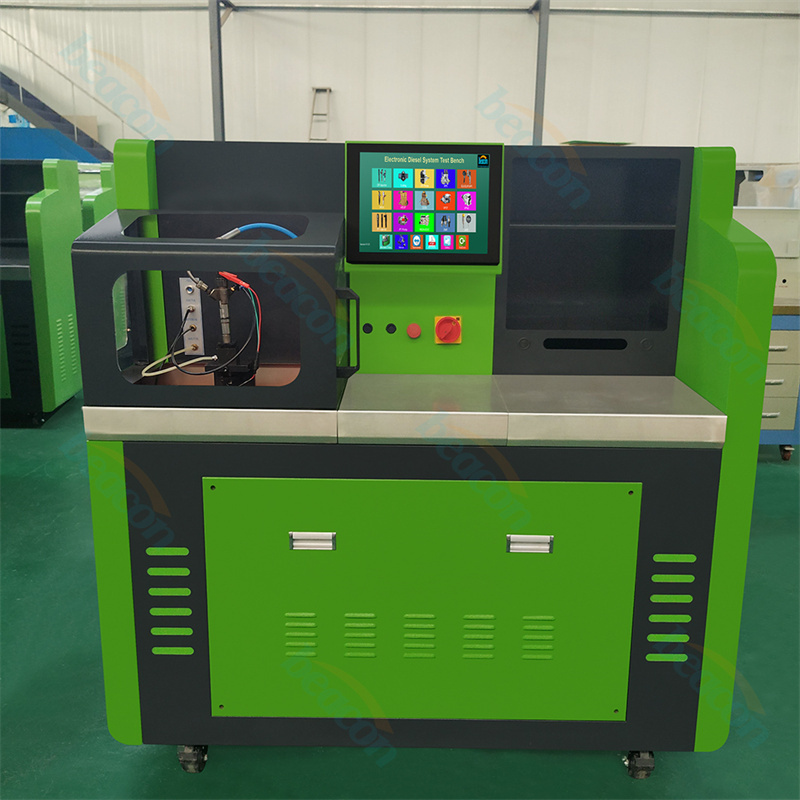

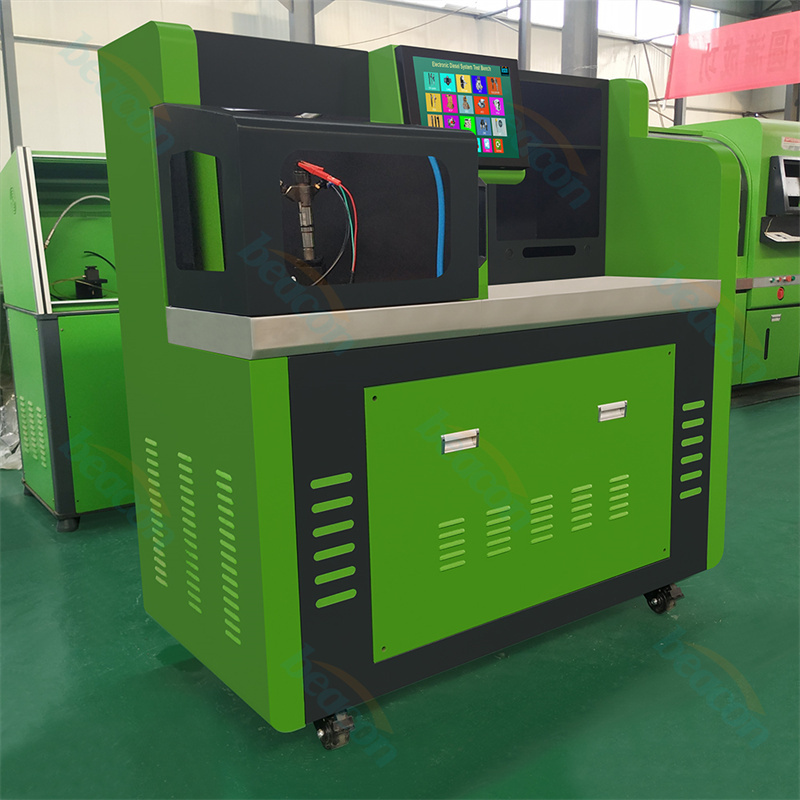

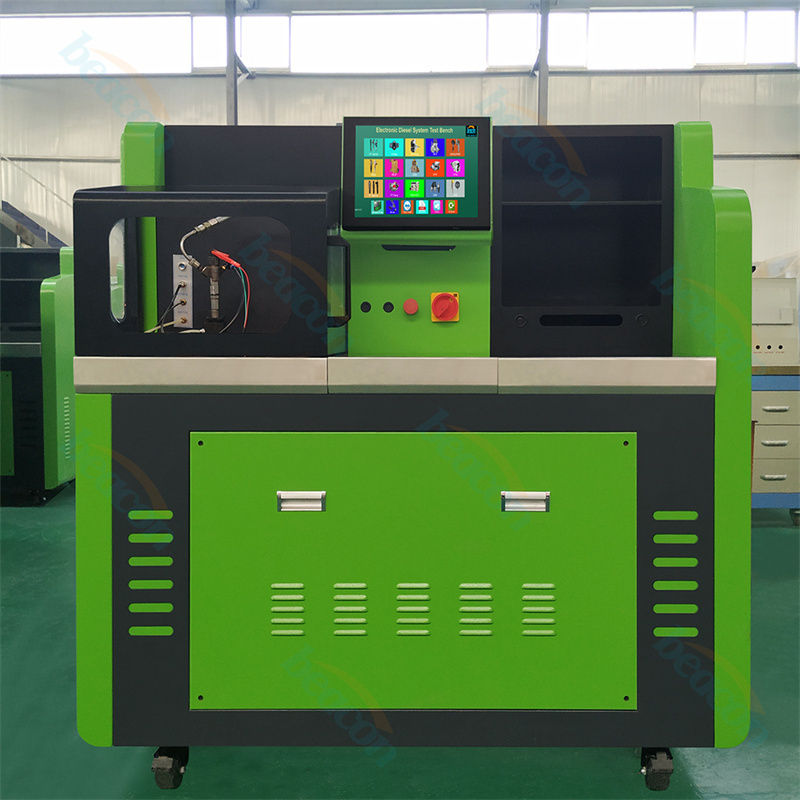

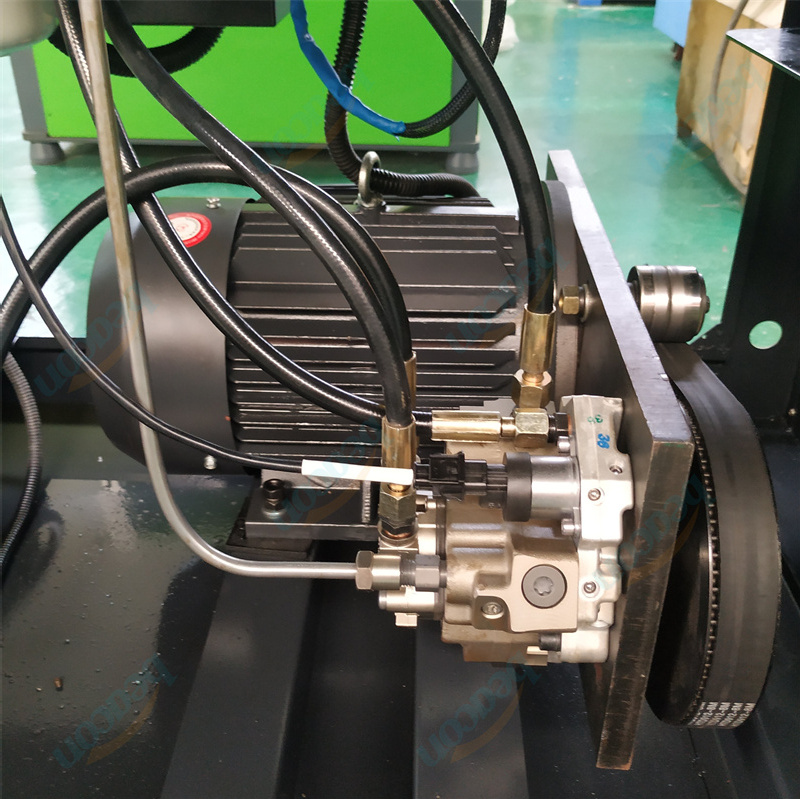

The CR303 Common Rail Injector Test Bench is a professional diagnostic solution designed to accurately simulate the Electronic Control Unit (ECU) of diesel engines. It provides high-precision control signals for a wide range of common rail systems, including Bosch, Denso, Delphi, and Piezoelectric ceramics. With its 4KW main engine power, the CR303 allows technicians to set and save custom drive signal parameters based on real-world conditions. This enables precise performance evaluation and maintenance of high-pressure common rail injectors, ensuring they meet factory standards for fuel delivery and timing.

Supported High-Frequency Injectors, Engines and Pumps

Brand Coverage

• Bosch CR Systems: CP1, CP2, CP3 — Mercedes Actros, VW, FAW J6P

• Denso CR Systems: HP3, HP4 — Toyota, Isuzu, Hino

• Delphi CR Systems: C2i/C3i, 2835 — Volvo, DAF

• Piezoelectric Ceramics: Piezo injectors — Siemens VDO, Continental

Frequently Asked Questions

What is the power of the CR303?

The CR303 has a 4KW main engine providing high-precision control signals for common rail injectors.

Which injectors does it support?

It supports both piezoelectric and solenoid injectors from Bosch, Denso, Delphi and Siemens.

Does it simulate ECU signals?

Yes, it accurately simulates the Electronic Control Unit of diesel engines for realistic testing.

Can I save drive parameters?

Yes, technicians can set, group and save custom drive signal parameters for different maintenance requirements.

Is it a precision bench?

Yes, it is designed for precision testing with high-precision control signals for professional workshops.

• Comprehensive Compatibility: Fully supports testing for Bosch, Denso, Delphi, Siemens, and advanced Piezoelectric injectors.

• User-Defined Parameters: Allows maintenance personnel to set, save, and modify drive signal parameters (pulse width, frequency) to suit specific testing needs.

• Advanced Database Management: Features a built-in searchable database where users can add, delete, or edit injector part numbers and test plans.

• Dual Testing Modes: Offers both "Standard Startup" for comprehensive step-by-step diagnostics and "Quick Startup" for rapid injector evaluation (recommended 20s per condition).

• Professional Reporting: Automatically generates detailed test reports after all working conditions are measured, facilitating customer communication and record-keeping.

• Industrial Stability: Designed for reliable operation within a wide temperature range (-10°C to 50°C) with a robust 400KG frame for vibration-free testing.

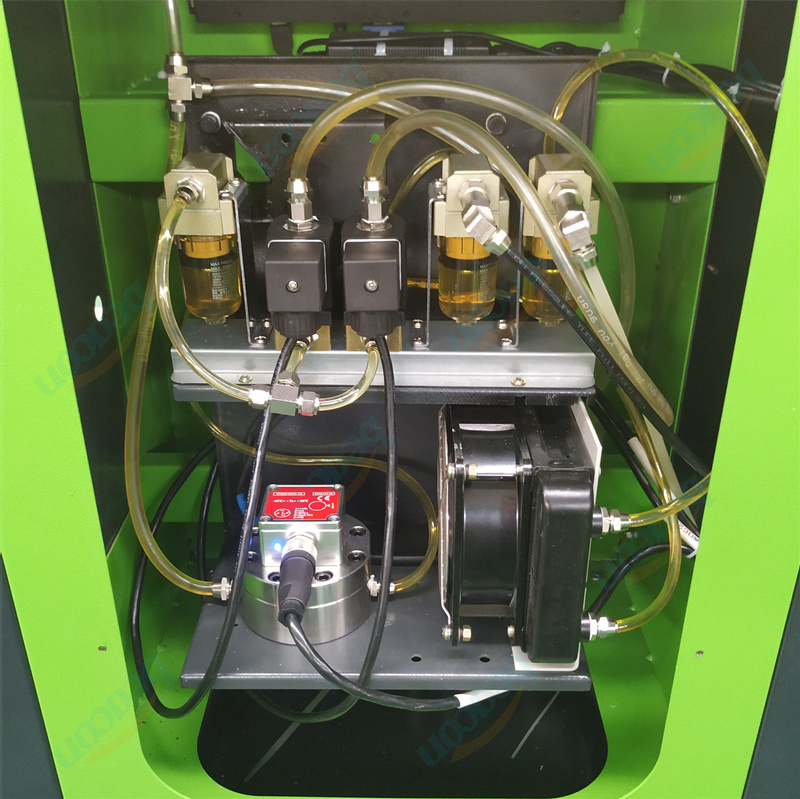

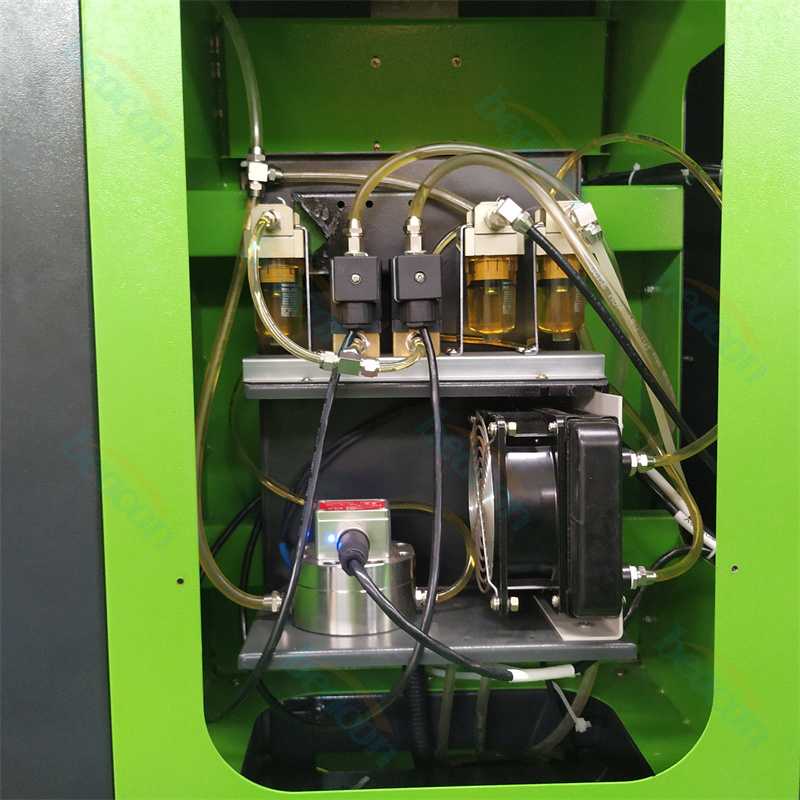

• Precision Measurement: Equipped with electronic sensors to monitor fuel flow, backleak, and injection volume under various load conditions.

• High-Frequency Coverage: Compatible with Bosch 0445116018, 0445110183, 0445110352, 0445110369, 0445110441, 0445110557, 0445110698, 0445120288, Denso 094000-0342, 095000-0760, 095000-5471, 095000-7950, 23670-30450, Delphi 28353991, EJBR0181A, 21569200, 28230973 and Siemens BK2Q-9K546-AG, 5WS4xxxx — the most searched injector models for Google visibility.
