CR317S Precision Common Rail Injector Test Bench with AHE Dynamic Stroke Measurement

CR317S Precision Common Rail Injector Test Bench with AHE Dynamic Stroke Measurement

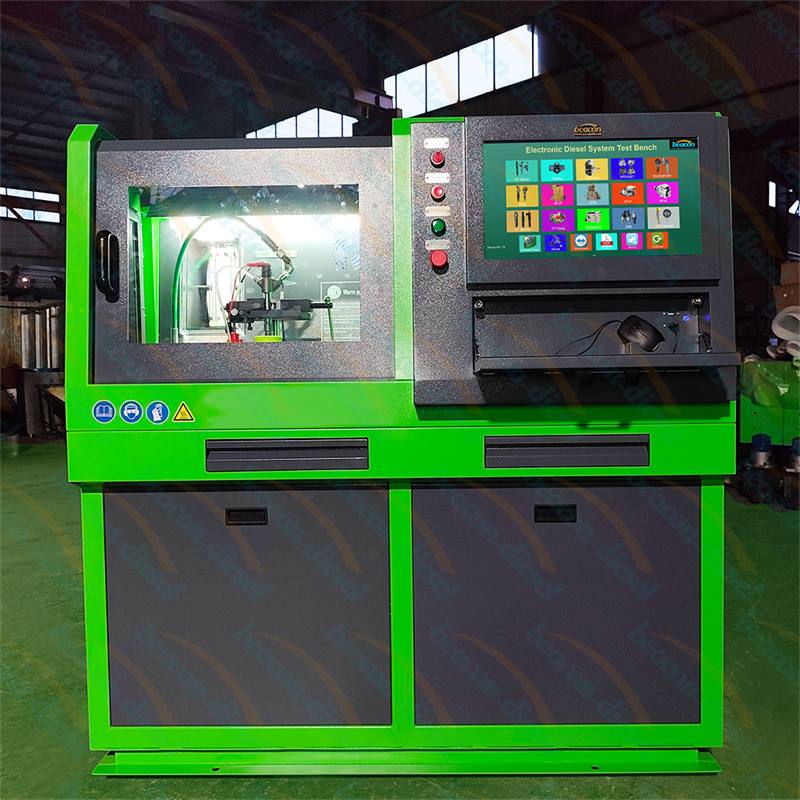

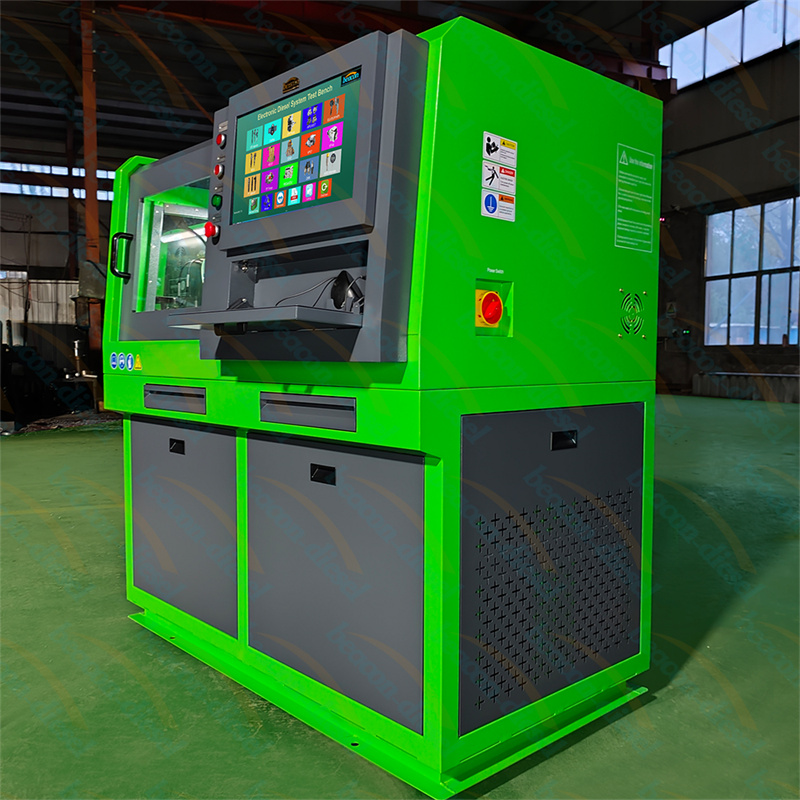

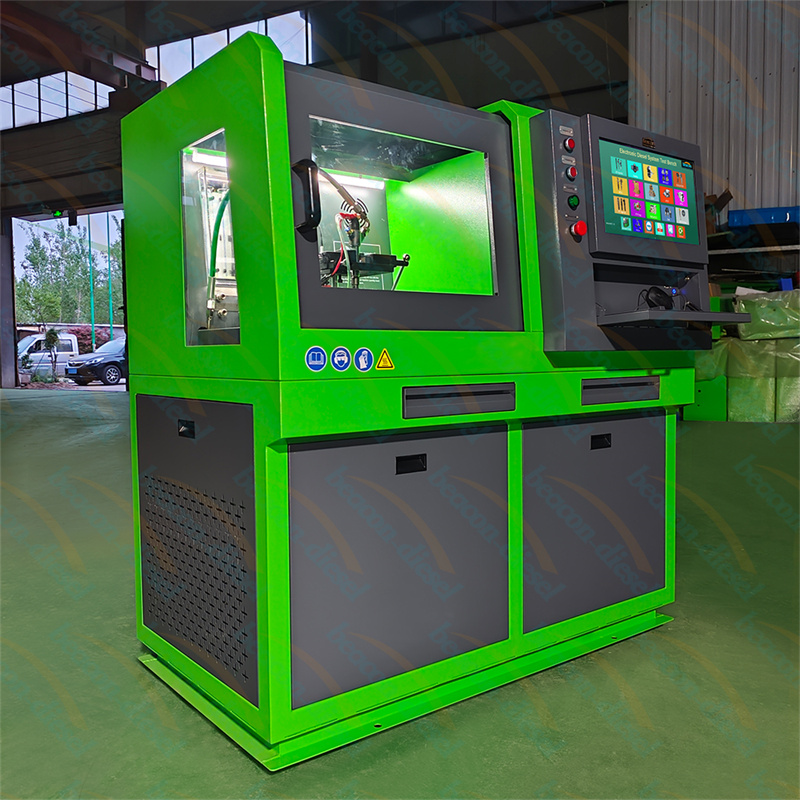

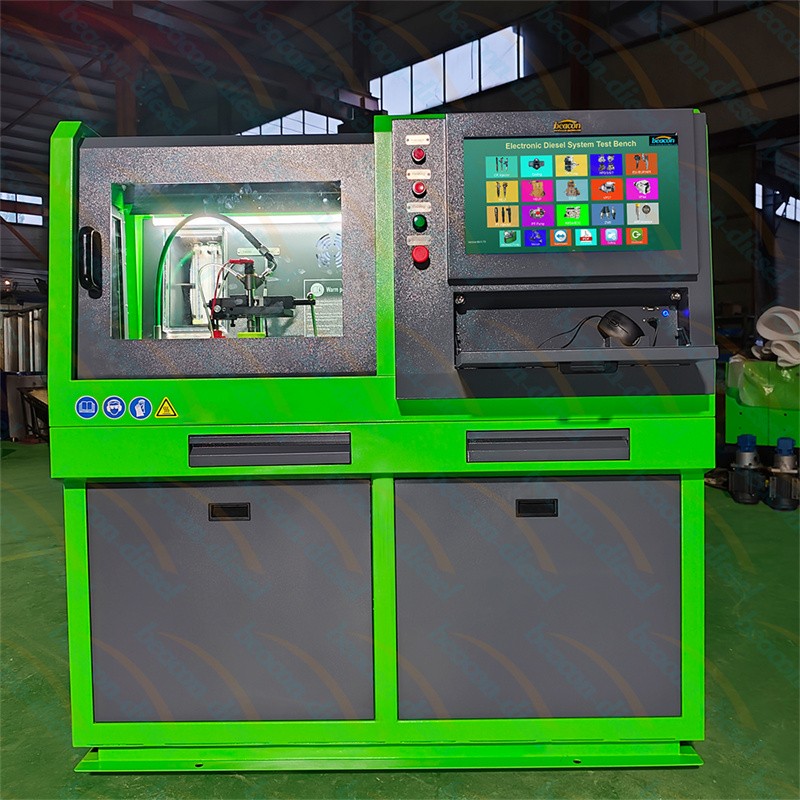

The CR317S Common Rail Injector Test Bench is a high-precision diagnostic solution designed for modern diesel service centers. Powered by a 4KW motor and capable of generating up to 2400 Bar rail pressure, it offers comprehensive testing for Bosch, Denso, Delphi, and Siemens injectors. A standout feature of the CR317S is its support for AHE dynamic stroke measurement (compatible with Bosch 110 and 120 tools), ensuring laboratory-grade accuracy. It also specializes in testing Bosch 4-pin injectors, rail pressure sensors, and DRV/HPV valves, making it a versatile powerhouse for fuel system calibration.

Supported High-Frequency Injectors, Engines and Pumps

Brand Coverage

• Bosch CR Systems: CP1, CP2, CP3, CP4, 0445 series injectors — Mercedes Actros, FAW J6P, Dongfeng Tianlong, VW Audi Seat Skoda

• Denso CR Systems: HP3, HP4, HP0, 095000/094000 series — Toyota Hilux, Isuzu 4JJ1, Hino, Komatsu

• Delphi CR Systems: DFP1, C2i/C3i, 2835 series — Volvo D12, DAF XF, Detroit Diesel

• Siemens / VDO: Piezo injectors, 5WS series — Ford 6.0 Powerstroke, Cummins ISX

Frequently Asked Questions

Does the CR317S support AHE dynamic stroke measurement?

Yes, it supports AHE dynamic stroke measurement compatible with Bosch 110 and 120 tools, allowing precise measurement of injector needle stroke.

What maximum pressure can the CR317S generate?

The CR317S can generate up to 2400 Bar rail pressure with a 4KW motor, meeting the testing requirements of the latest common rail systems.

Which injectors can the CR317S test?

It tests Bosch, Denso, Delphi and Siemens common rail injectors, including solenoid and piezoelectric types, covering over 7000 injector models with the built-in database.

Is the CR317S suitable for a small diesel workshop?

Yes, it is designed for modern diesel service centers with professional-grade accuracy while remaining compact enough for daily workshop use.

Can I test EUI/EUP injectors with the CR317S?

The CR317S is optimized for common rail injectors; for EUI/EUP testing please check our BC300 or BC808 comprehensive test benches.

• High-Pressure Capability: Supports a maximum system pressure of 2400 Bar, meeting the testing requirements of the latest high-pressure injectors.

• AHE Dynamic Stroke Support: Specifically designed to measure injector dynamic stroke with Bosch 110/120 measuring tools and dial indicators.

• Bosch 4-Pin Testing: Fully compatible with advanced Bosch 4-pin injectors, expanding your workshop's service range.

• Versatile Diagnostic Tool: Capable of testing not only injectors but also rail pressure sensors, DRV/HPV valves, and solenoid valves.

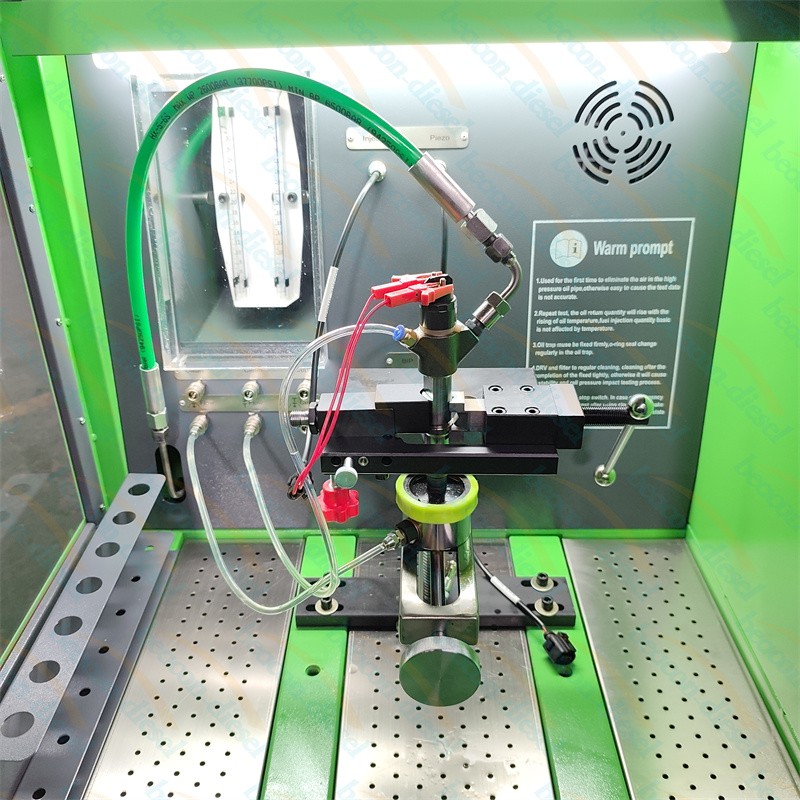

• Precision Measurement: Equipped with an electric flip measuring cylinder and high-accuracy sensors for repeatable results.

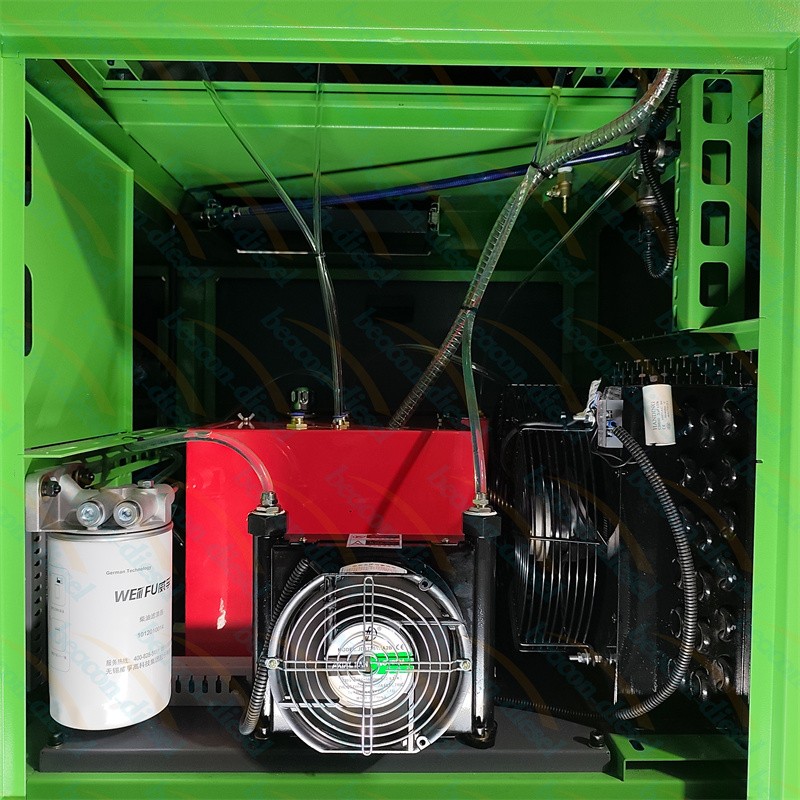

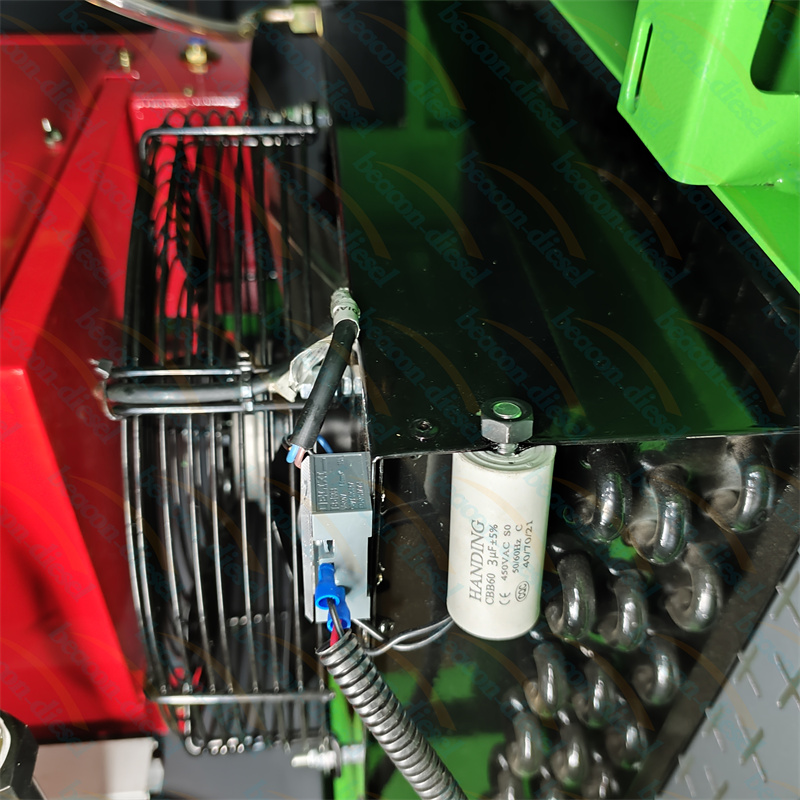

• Robust & Stable: Features a 4KW main motor and a sophisticated temperature control system (40±2°C) for consistent performance during long operations.

• Comprehensive Database: Includes a vast library of test plans that are easily searchable and updated for the latest fuel systems.

• High-Frequency Coverage: Compatible with Bosch 0445116018, 0445110183, 0445110352, 0445110369, 0445110441, 0445110557, 0445110698, 0445120288, Denso 094000-0342, 095000-0760, 095000-5471, 095000-7950, 23670-30450, Delphi 28353991, EJBR0181A, 21569200, 28230973 and Siemens BK2Q-9K546-AG, 5WS4xxxx — the most searched injector models for Google visibility.
