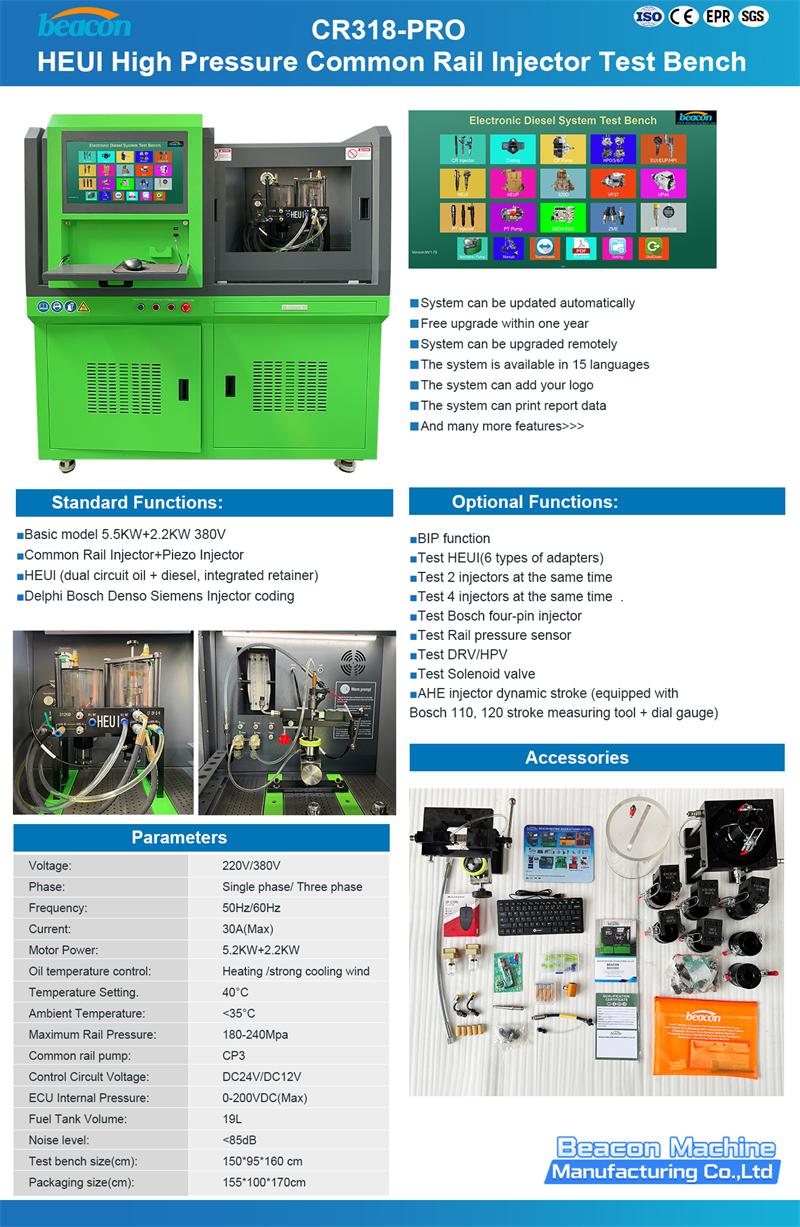

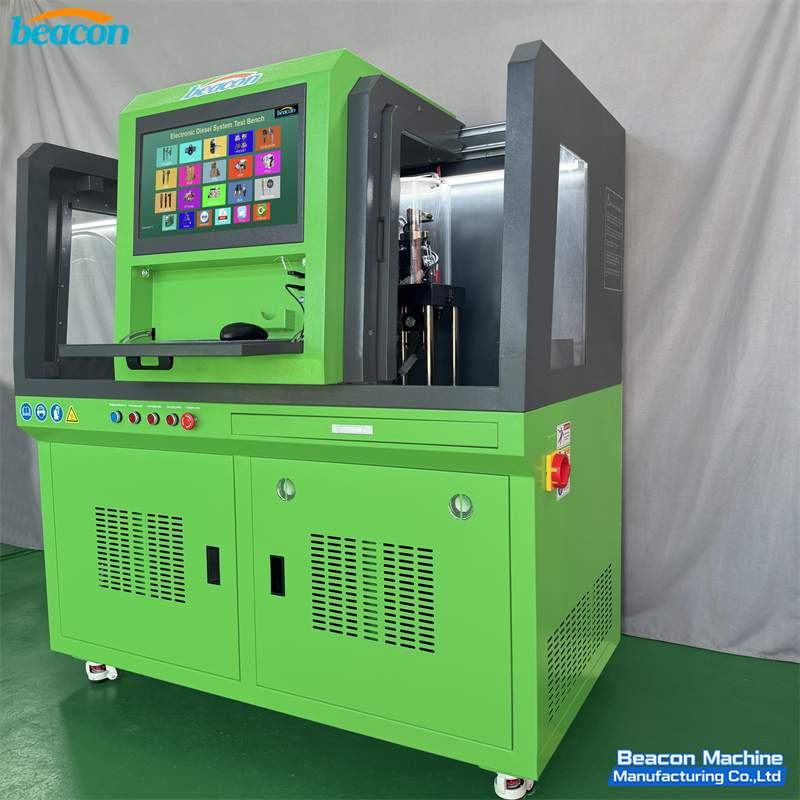

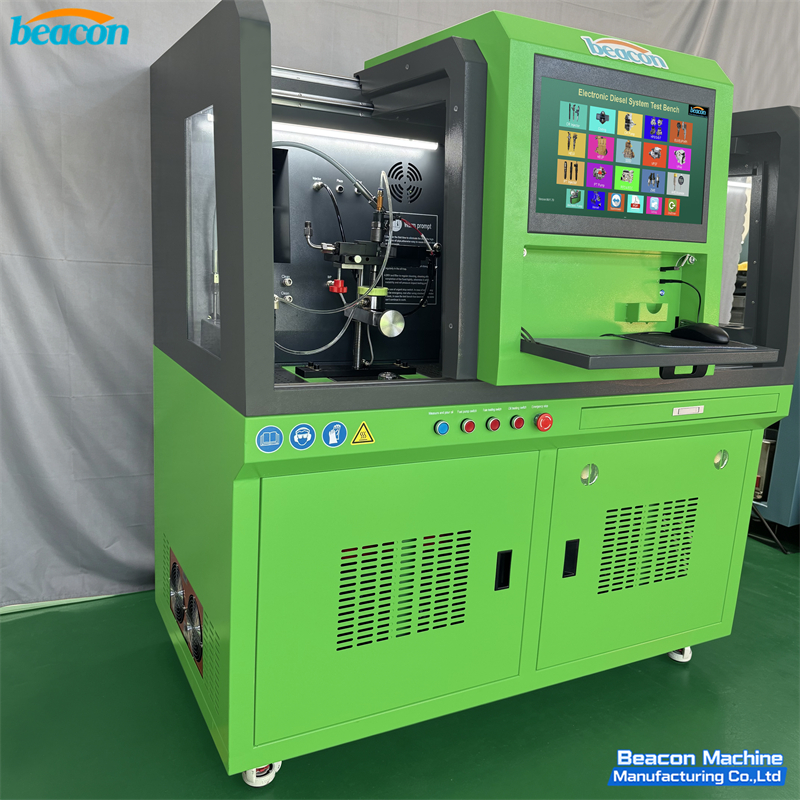

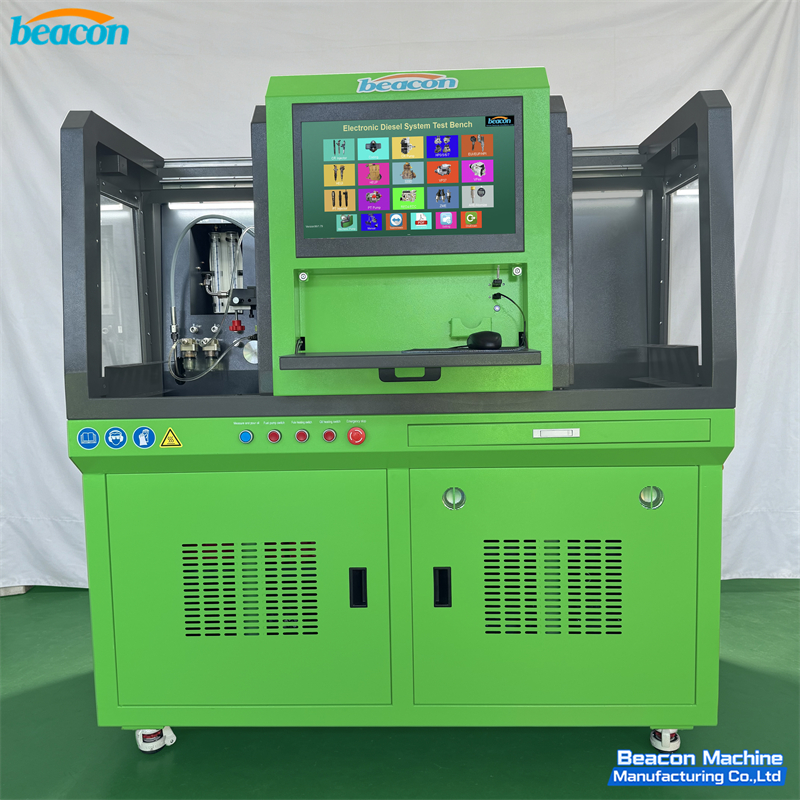

CR318-PRO High Pressure Common Rail & HEUI Injector Test Bench

The CR318-PRO High Pressure Common Rail & HEUI Injector Test Bench is an advanced, multi-functional diagnostic solution designed for precise testing and coding of diesel fuel injection systems. Equipped with a dual-motor standard configuration (5.5kW + 2.2kW), it provides robust pressure control up to 240 MPa. This test bench supports comprehensive testing for Common Rail solenoid and Piezo injectors (Bosch, Denso, Delphi, Siemens, CAT, Cummins, MTU) as well as HEUI injectors (CAT C7/C9/3126B/3116, 3412E, Navistar, Isuzu, Ford G2.8/G2.9). Featuring built-in databases with over 7,700 common rail test plans and 4,200 coding data files, the CR318-PRO delivers high-accuracy performance, automated report generation, and multi-language support for modern electronic diesel repair workshops.

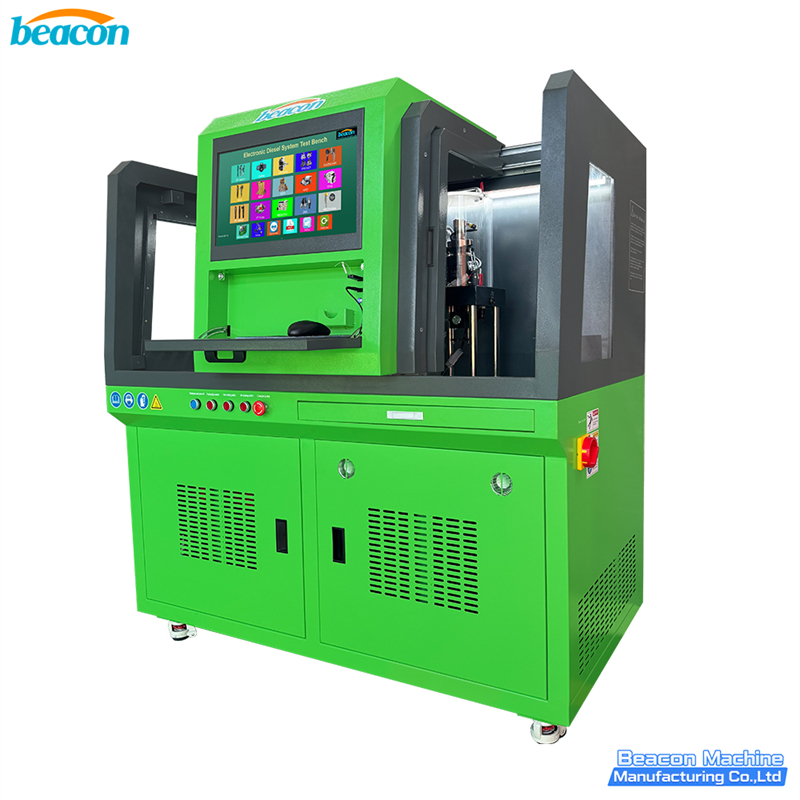

Common Rail Injector Test Bench, HEUI Test Bench, Diesel Injector Tester

Compatible Common Rail Injector Brands

OEM Reference	Injector Family	Typical Vehicle
0445110 series	Bosch CP1 / CP3 solenoid	Mercedes A-Class, VW Golf, Hyundai H-1
0445116 series	Bosch CRI2-16 solenoid	BMW 320d, Volvo V50, Renault Laguna
095000-0760	Denso ECD-U2P	Toyota Hilux, Mitsubishi Triton
EJBR01501Z	Delphi EUI	Land Rover Defender, Ford Transit
A2C59511601 / 5WS40539	Siemens Continental piezo	Ford Transit, Peugeot 308, Citroën C4

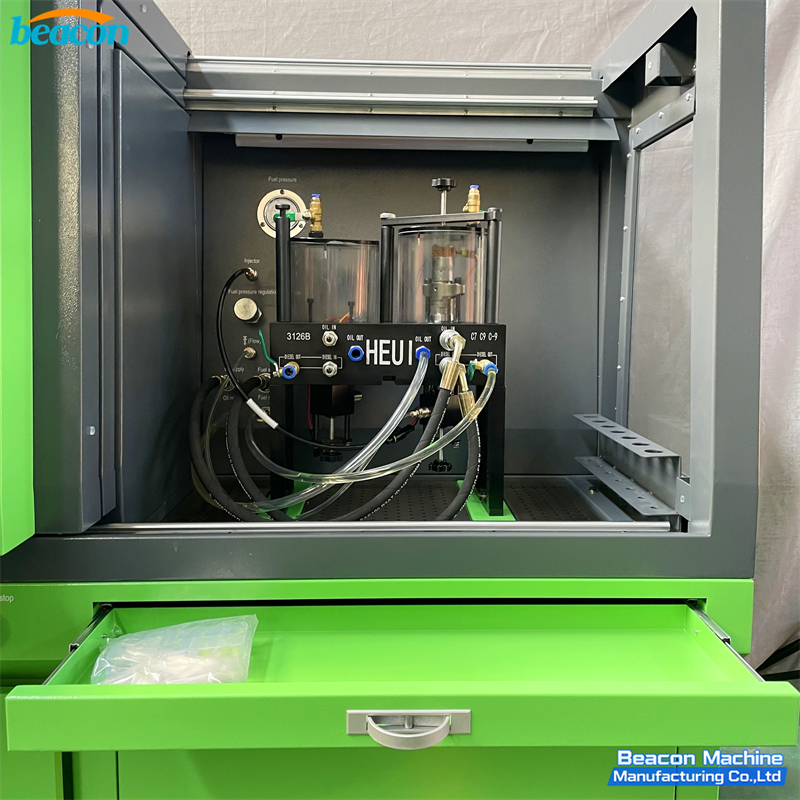

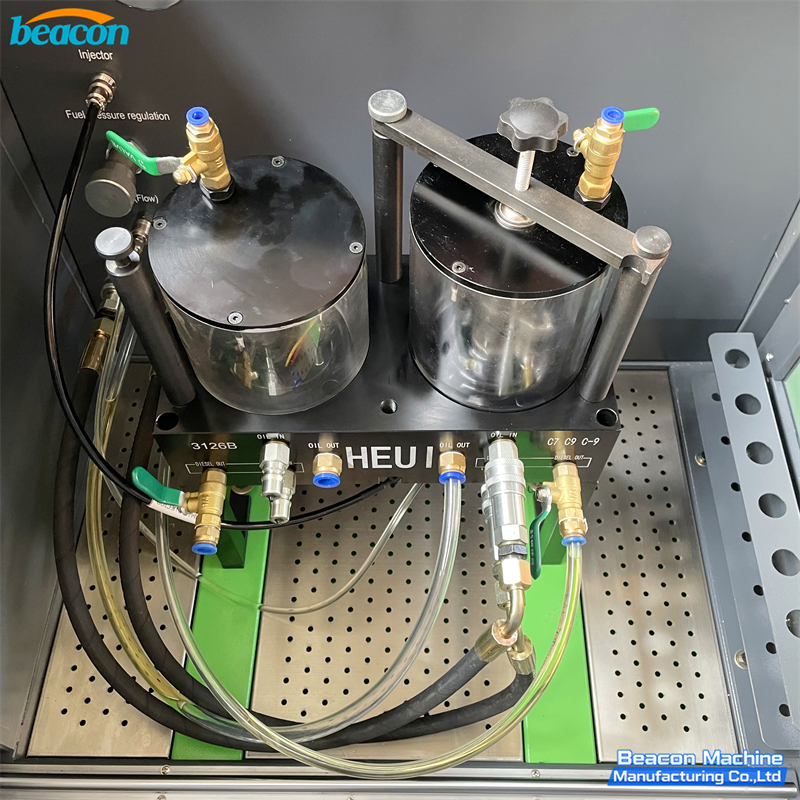

CAT C7 / C9 / 3126B	Caterpillar HEUI	Caterpillar excavators, Navistar, Isuzu

High Pressure Coverage and Applications

The dual-motor standard configuration (5.5kW + 2.2kW) provides robust pressure control for the most demanding diagnostic workloads. Comprehensive testing covers Common Rail solenoid and Piezo injectors (Bosch, Denso, Delphi, Siemens, CAT, Cummins, MTU) and HEUI injectors (CAT C7/C9/3126B/3116, 3412E, Navistar, Isuzu, Ford G2.8). The integrated coding capability supports calibration of IQA, IMA and ISA compensation codes for global diesel service centers.

Frequently Asked Questions

Q1. What injector families does the CR318-PRO cover?
Common Rail solenoid and Piezo injectors (Bosch, Denso, Delphi, Siemens, CAT, Cummins, MTU) and HEUI injectors (CAT C7/C9/3126B/3116, 3412E, Navistar, Isuzu, Ford G2.8).

Q2. What does the dual-motor configuration do?
The dual-motor setup (5.5kW + 2.2kW) provides robust pressure control for high-pressure diagnostic cycles across all supported injector families.

Q3. Does it support IQA / IMA / ISA coding?
Yes. The integrated coding capability supports calibration of compensation codes for modern common rail injectors.

Q4. Is it suitable for heavy-duty and off-road machinery?
Yes. The HEUI coverage extends to Caterpillar 3412E, Navistar, Isuzu and Ford G2.8 engines.

Q5. Can it test Cummins and MTU injectors?
Yes. The platform supports professional driving signals for Cummins and MTU injector families.

CR318-PRO High Pressure Common Rail & HEUI Injector Test Bench Advantage

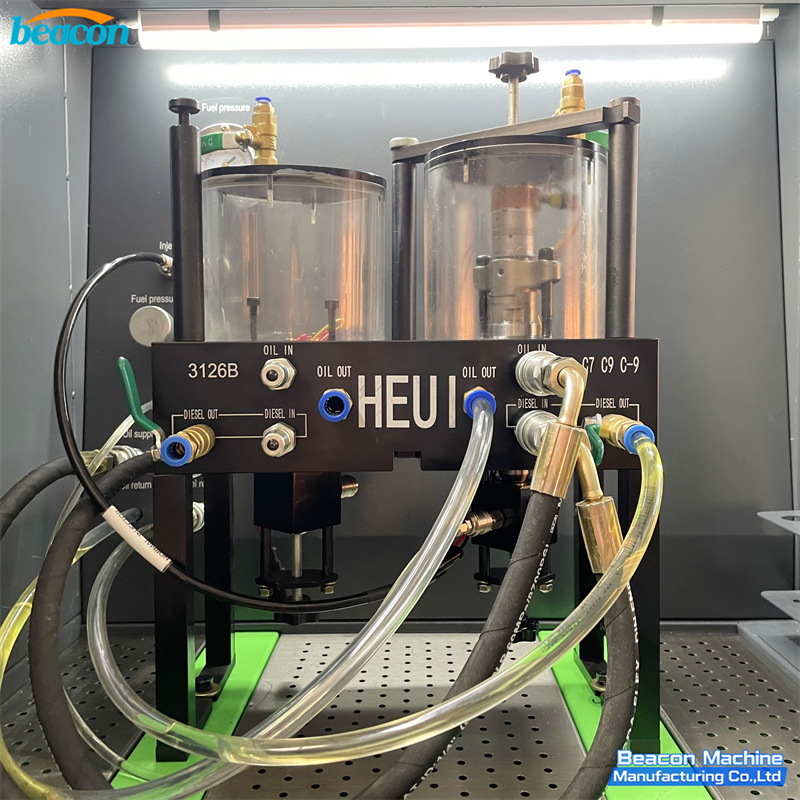

Dual-System Testing Capability: Seamlessly tests both High-Pressure Common Rail (CRI/CRIN, Piezo) and HEUI injectors in one compact unit.
Extensive Database & Free Updates: Pre-loaded with over 7,725 injector test data records, 4,204 injector coding profiles (Bosch IMA/IQA, Denso QR, Delphi C2I/C3I, Siemens IIC), and 1 year of free software updates.
High-Pressure Precision: Reaches maximum rail pressure of 180–240 MPa powered by a genuine CP3 common rail pump and dual-motor drive (5.5kW + 2.2KW).
User-Friendly Multi-Language Interface: Supports 15 international languages, customizable customer logos, remote diagnostic upgrades via TeamViewer, and printable PDF test reports.
Versatile & Expandable Functions: Supports optional upgrades including dual/quadruple simultaneous injector testing, BIP response time testing, AHE dynamic stroke measurement, rail pressure sensor testing, and DRV/HPV valve diagnostics.

Remote Diagnostics Support: Online remote assistance is available for installation, calibration and software upgrades.
12 Months Warranty: Full machine warranty covers spare parts and remote support for one year after delivery.

parameter

Item / Parameter	Specification
Power Supply / Voltage	220V / 380V (Single Phase / Three Phase, 50Hz/60Hz)
Max Current	30A

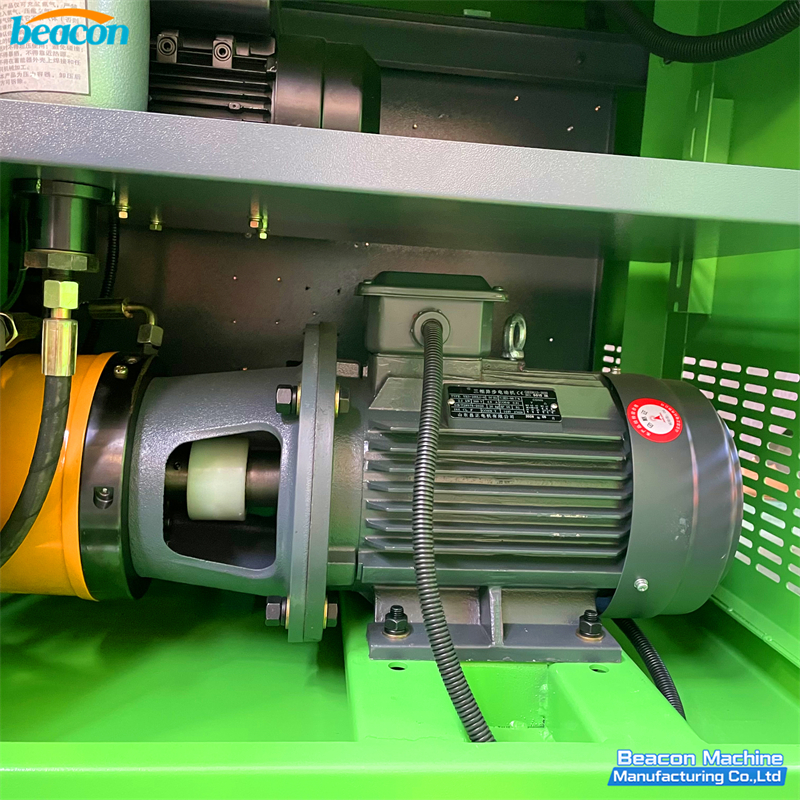

Motor Power	5.5 kW + 2.2 kW (Dual Motor)
Maximum Rail Pressure	180 – 240 MPa

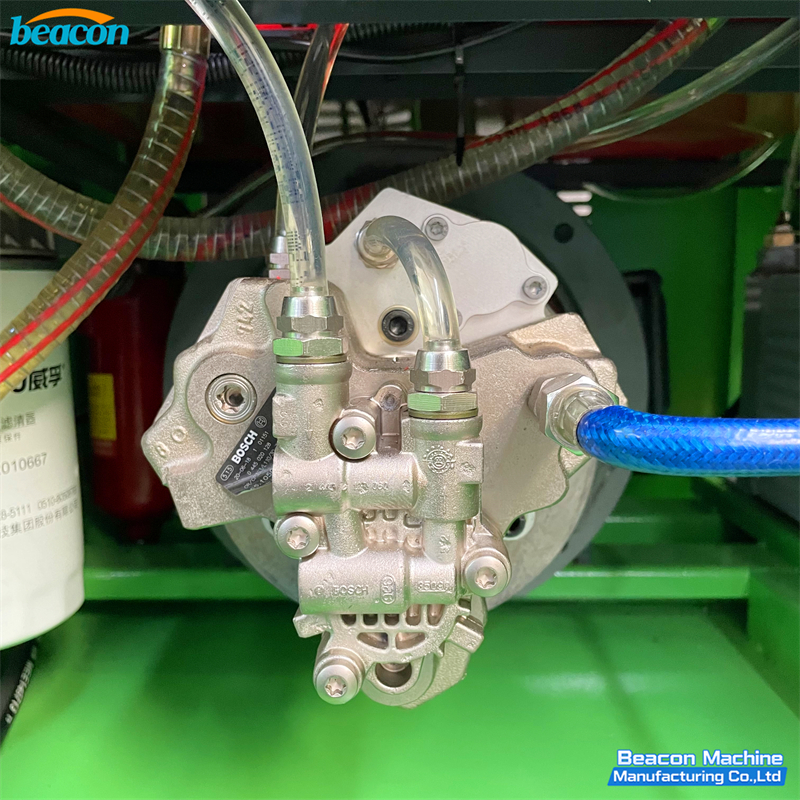

Common Rail Pump	Bosch CP3
ECU Internal Pressure	0 – 200 VDC (Max)
Control Circuit Voltage	DC 24V / DC 12V

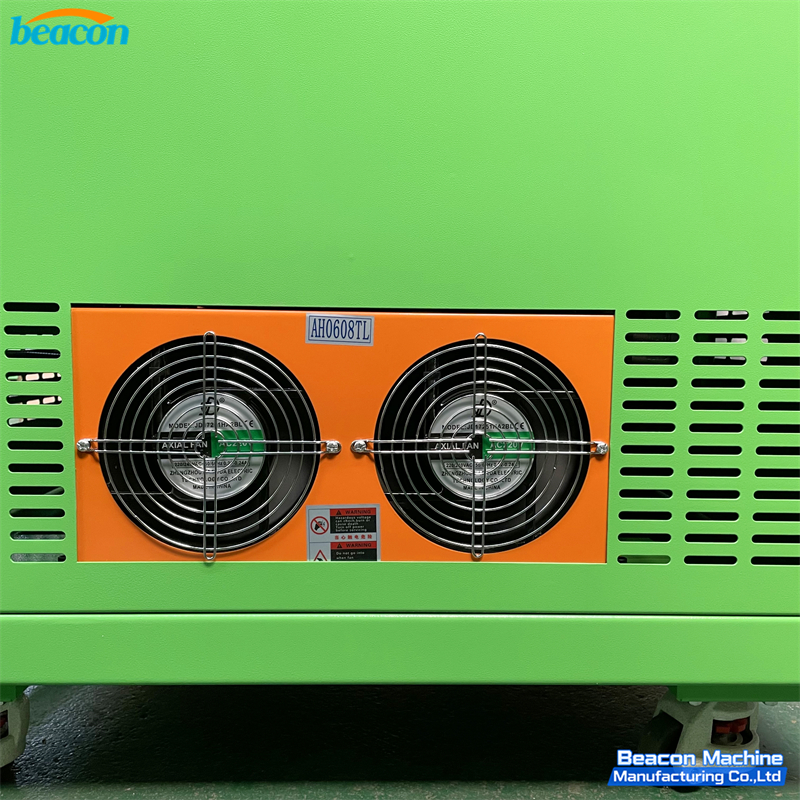

Oil Temperature Control	Heating / Air cooling fan (Setting: 40°C)
Fuel Tank Capacity	19 L
Noise Level	< 85 dB
*Machine Dimensions (LWH)*	150 * 95 * 160 cm
*Packing Dimensions (LWH)*	155 * 100 * 170 cm (Plywood Case)
