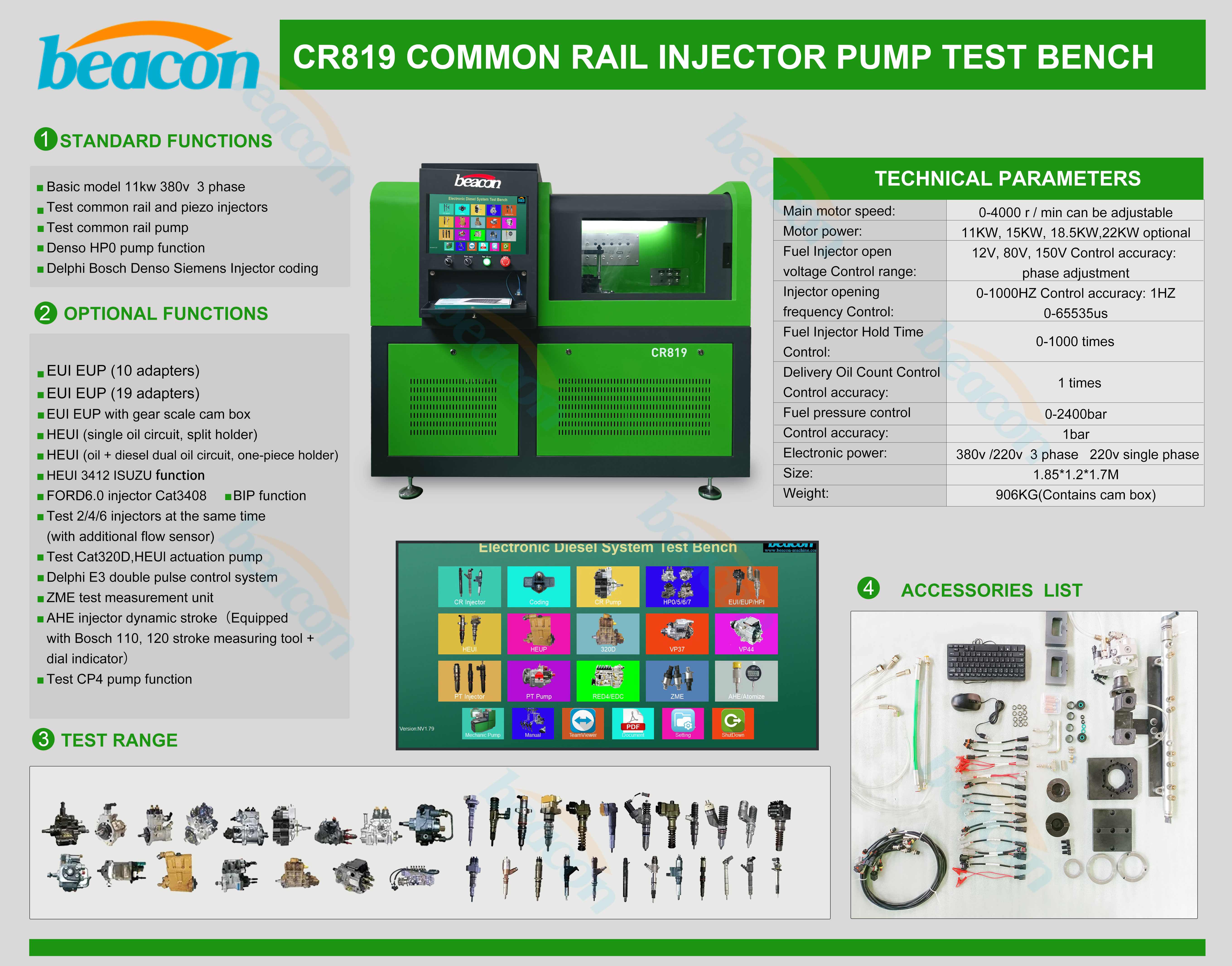

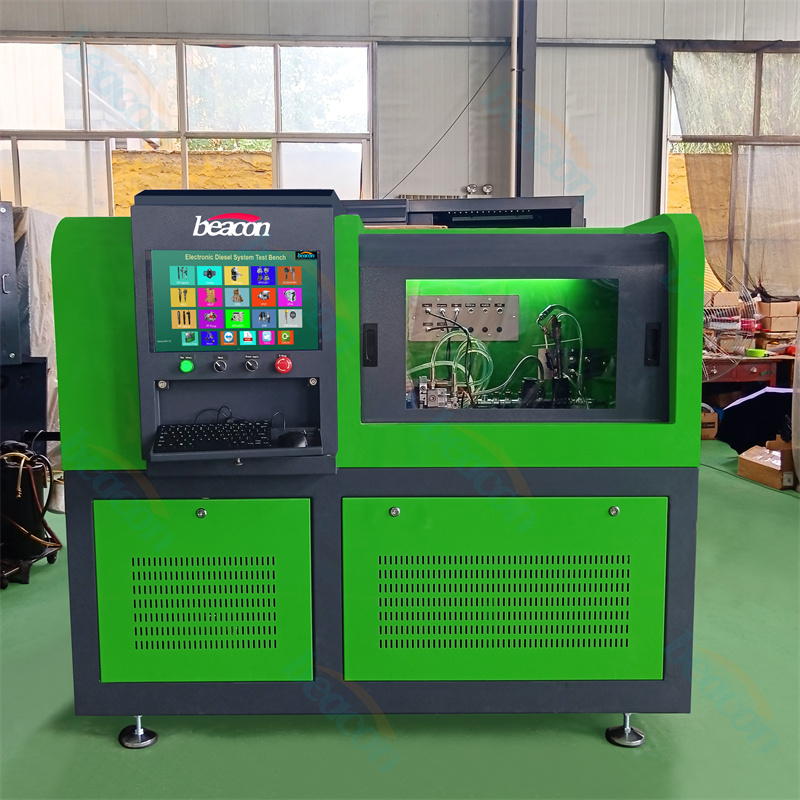

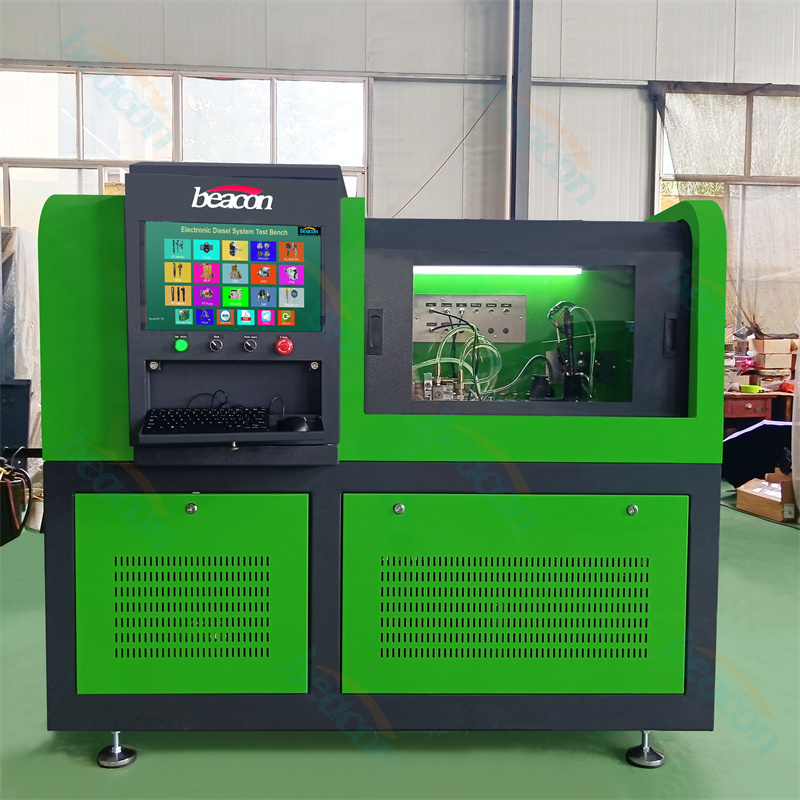

CR819 Common Rail Injector and Pump test Bench with HEUI C7 C9

CR819 Common Rail Injector and Pump test Bench with HEUI C7 C9

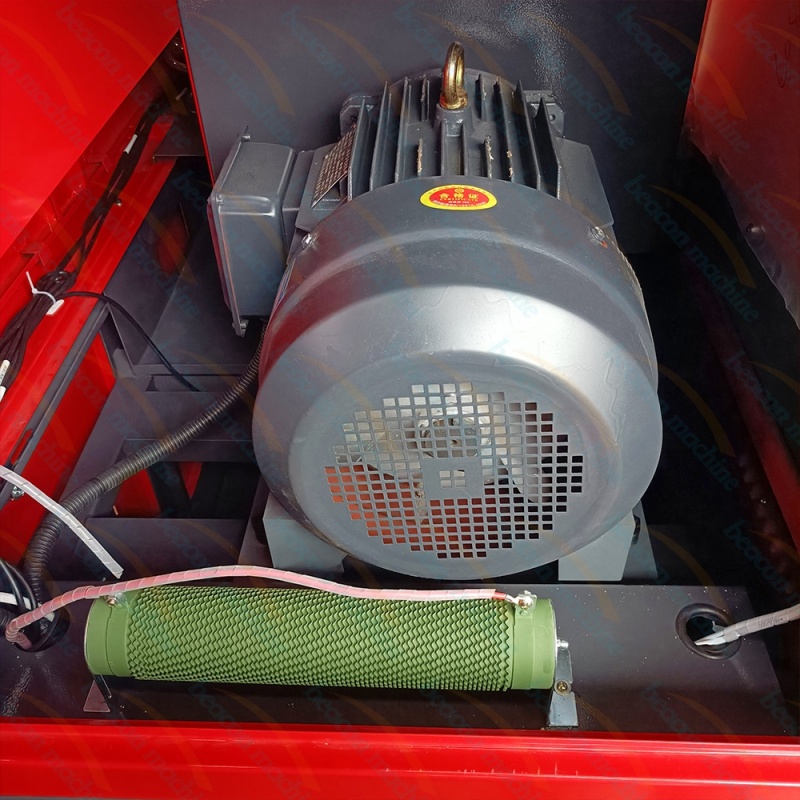

11 KW 380/220V 1/3 phase

Standard Function:

1.Common rail fuel injector test

2.Piezo injector test

3.Common rail pump test

4.Test Denso HP0 pump

5.Delphi Denso Siemens Bosch injector coding

Accessories


Details

Compatible Injector OEM Reference

This common rail injector and pump test bench with HEUI dual oil circuit covers OEM injector part numbers across major brands. Use this list to confirm coverage before quoting customers.

Compatible Engines, Vehicles & Optional Modules by Brand

This mid-range bench stands out with its HEUI dual oil circuit included as standard (CAT C7/C9/3126 holders), making it the natural choice for shops specializing in Caterpillar HEUI and Ford 6.0 Powerstroke service.

Caterpillar (HEUI - Standard)

• HEUI dual oil circuit standard: C7 / C9 / C-9 / 3126 / 3236 (new & old style holders)

• Additional: 3126A / 3412E / NAVISTAR / ISUZU G2.8 / G2.9 (optional)

• 3406 / C13 / C15 (with TU-D/TU-E cam box)

• 320D pump with dedicated holder (optional)

Bosch (Common Rail & Piezo)

• CP1 / CP3 common rail pumps (standard)

• Euro 6 piezo injectors: 0445116018, 0445120288

• PD Pumpe-Duse unit injectors (TU-C cam box option): VW T5, Golf, Jetta, Passat, Audi

Cummins (EUI EUP, PT, HPI)

• Heavy duty: QSK19 / QSK38 / QSK50 / G50 / K50 (2867147 / 2867148 / 2867149)

• PT injector & PT pump (5,000 option, needs large cam box)

• Cummins HPI Q60 X15 (6,500 option)

• NTA855 PT (3054218) and ISM11 / QSM11 / M11 / N14 PT (4954877)

Denso (HPO and HP Pump)

• HPO pump: Komatsu SAA6D140E-3 (094000-0342)

• HP5 / HP6 / HP7 pump

Ford (HEUI)

• 6.0 Powerstroke HEUI injectors (4C3Z9E527AA / BRM) with dual oil circuit

• FORD 6.0 / 3412 holders (optional)

Optional Add-On Modules (most common)

• TU-C / TU-D / TU-E cam boxes for EUI EUP testing (9,000 / 8,000 / 10,000)

• BIP function (350)

• Delphi E3 dual-pulse control (500)

• Caterpillar HEUI actuator pump (1,500, requires dual oil)

• Measure 2 / 4 / 6 / 8 injectors simultaneously (with or without flow sensors)

• ZME metering unit test (500) and AHE dynamic stroke (600)

• Free coding for Delphi / Denso / Siemens / Bosch injectors

Common Rail Injector and Pump Test Bench with HEUI - Frequently Asked Questions

1. Does the bench include HEUI testing as standard?

Yes. Unlike most entry-level benches, HEUI dual oil circuit with CAT C7 / C9 / 3126 holders (new & old style) is included as standard equipment. This is the key differentiator for shops servicing Caterpillar HEUI injectors.

2. Can it test EUI EUP unit injectors?

Not with the base configuration. EUI EUP requires adding a TU-C / TU-D / TU-E cam box (8,000 - 10,000 depending on adapter count). With the cam box installed it tests VW T5 PD injectors, MAN / Mercedes EUI EUP, and PT injectors.

3. Which Ford injectors does it support?

Ford 6.0 Powerstroke HEUI injectors (4C3Z9E527AA / BRM) with the dual oil circuit. FORD 6.0 / 3412 holders are available as options.

4. What is the difference between this bench and the compact entry model?

This is the mid-range model (220V single phase 24,500 CNY) with HEUI dual oil standard. The compact entry model (5.5KW) has BIP standard but no HEUI. The high-power models are built on the 12PSB mechanical pump platform with flow-sensor testing and distributor pump modules.

5. Can it test common rail pumps?

Yes. It tests common rail injectors and pumps, CP1/CP3, Denso HP5/HP6/HP7, and with the 320D holder option, the CAT 320D pump. PT pump testing is available as a separate option with its own fixture.

Main function
Test of all the manufacturers of common rail injector and pump
Test all of the manufacturers of piezo injectors
Test CAT HEUI (Oil common rail) injector
Test CAT HEUI enginer oil pump
Test CAT 320D common rail pump
EUI EUP CAMBOX Testing

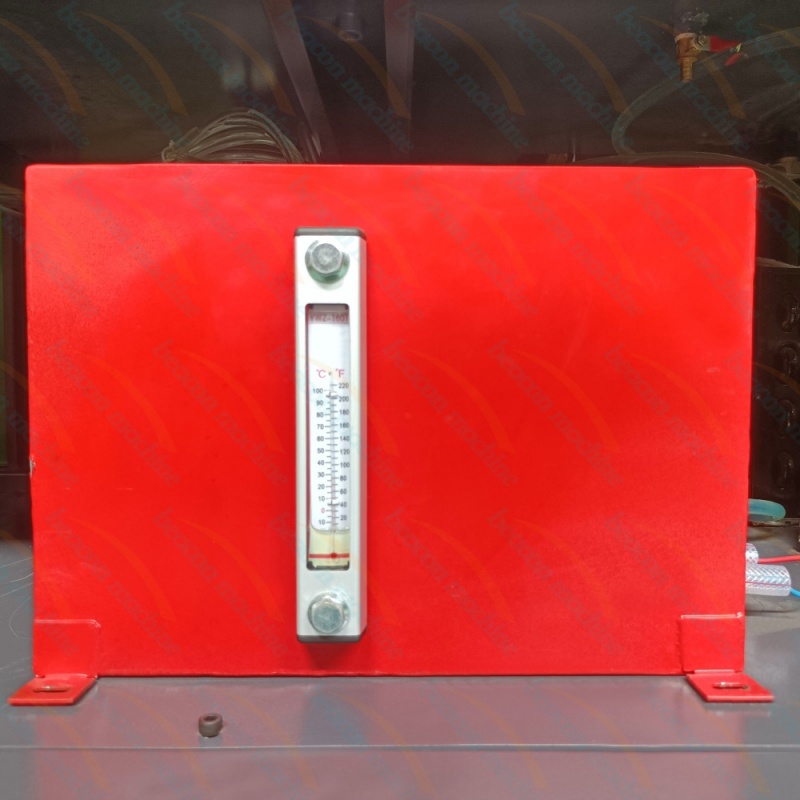

The machine is with two tank- oil tank and diesel tank ,double oil supply system
Introduction

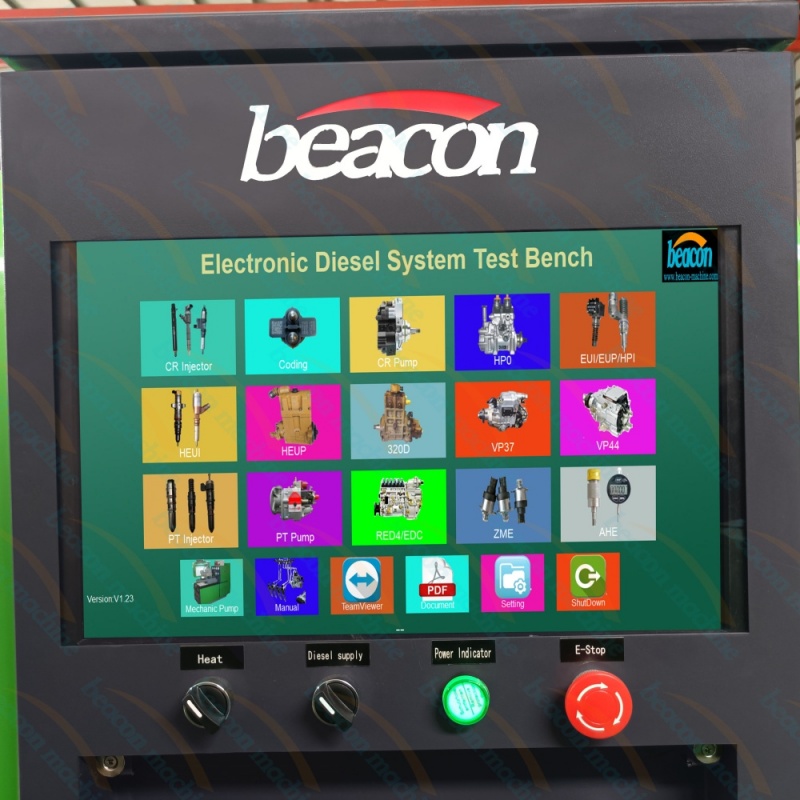

1. Industrial computer Windows operating system
2. With database, can can search, store, modify test data and generate new data.
3. Automatic measurement and generate QR code
4. Closed-loop control, which can automatically adjust the control rail pressure, the rail pressure is stable, and the fluctuation value is ±1 Mpa.
5. Display rail working pressure is 200Mpa,maximum pressure is 250Mpa
6. Common rail injection quantity, injection time, number of injections can be freely changed
7.With ultra high pressure protection, the rail pressure is more than 250 Mpa will automatic shutdown
8. Oil temperature automatic control ± 40℃
9. With glass protective door, safe operation and easy observation 10. Can detect HEUI engine oil circuit
11. Oil temperature control using compressor refrigeration (optional)
12. Support Internet connection for remote upgrade
13. With injector response time detection (optional)
