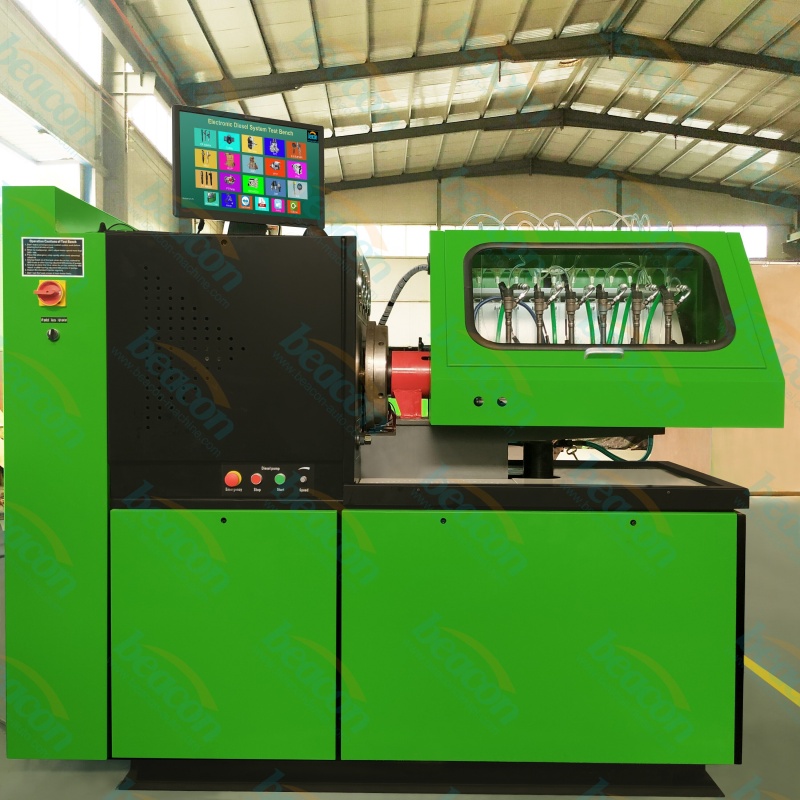

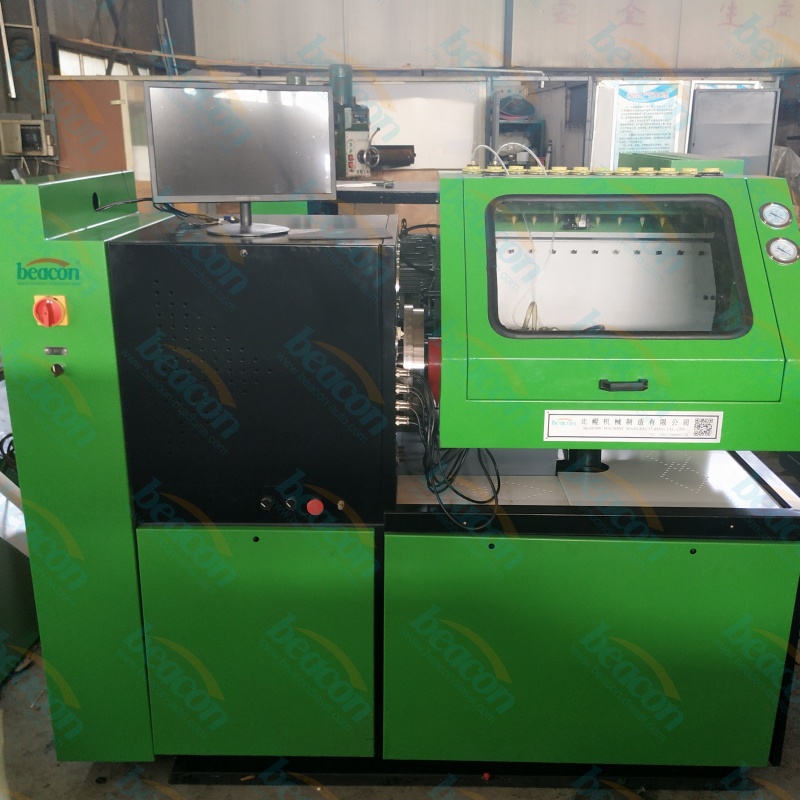

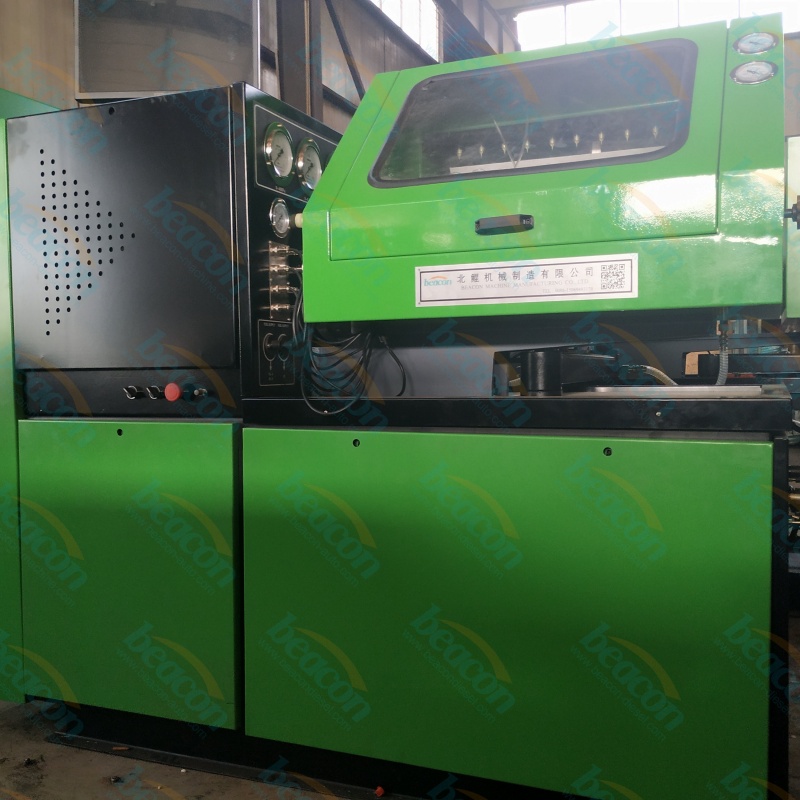

CRS300S High Pressure Common Rail Injector and Pump Test Bench

The CRS300S is a professional-grade diagnostic platform specifically designed for testing high-pressure common rail injectors and pumps. Powered by an industrial computer with a Windows operating system, it offers a reliable and intuitive user experience. The system excels in performance testing for a wide range of components from Bosch, Denso, and Delphi. With its advanced closed-loop control system, the CRS300S ensures stable rail pressure with minimal fluctuation (±1Mpa), allowing for precise measurement of injection quantity, pre-injection, and return flow. Its compact design and comprehensive database make it an ideal solution for workshops looking to provide high-quality diesel fuel system maintenance.

Common Rail Injector Tester, Diesel Pump Test Bench, Fuel System Diagnostic Tool

Compatible Common Rail Injector Brands

OEM Reference	Injector Family	Typical Vehicle
0445110 series	Bosch CP1 / CP3 solenoid	Mercedes A-Class, VW Golf, Hyundai H-1
0445116 series	Bosch CRI2-16 solenoid	BMW 320d, Volvo V50, Renault Laguna
095000-0760	Denso ECD-U2P	Toyota Hilux, Mitsubishi Triton
EJBR01501Z	Delphi EUI	Land Rover Defender, Ford Transit
0445117 series	Bosch CRI2-16 Piezo	Audi A4, Mercedes E-Class, VW Touareg
CAT C7 / C9 / 3126	Caterpillar HEUI	Caterpillar excavators, off-road machinery

High Pressure Coverage and Applications

Powered by a Windows industrial computer, the high pressure platform covers Bosch, Denso and Delphi common rail injectors and pumps. The closed-loop pressure control maintains stable rail pressure with minimal fluctuation for precise measurement of injection quantity, pre-injection and return flow. Its compact design and comprehensive database make it an ideal solution for workshops seeking high-quality diesel fuel system maintenance for passenger cars, commercial trucks and off-road machinery.

Frequently Asked Questions

Q1. Which injector families does the CRS300S cover?
Bosch, Denso and Delphi common rail injectors and pumps are covered through the integrated industrial computer database.

Q2. What is the closed-loop pressure control used for?
Closed-loop pressure control maintains stable rail pressure with minimal fluctuation, allowing precise measurement of injection quantity, pre-injection and return flow.

Q3. Is it suitable for compact workshops?
Yes. The compact design and comprehensive database make it ideal for workshops with limited floor space.

Q4. What operating system does it use?
The system runs on a Windows-based industrial computer for reliable and intuitive user experience.

Q5. Does it support pre-injection testing?
Yes. Pre-injection testing is part of the standard performance protocol alongside injection quantity and return flow analysis.

CRS300S High Pressure Common Rail Injector and Pump Test Bench Advantage

Precision Pressure Control: Advanced closed-loop system automatically adjusts rail pressure, keeping it stable with a fluctuation of only ±1Mpa.
Comprehensive Testing: Fully measures common rail injector performance, including starting, pre-injection, maximum injection, and fuel return quantity.
Smart Data Management: Built-in searchable database allows users to store, modify, and generate new test data for various injector models.
Real-Time Monitoring: High-definition LCD screen displays track pressure in real-time, providing immediate feedback during diagnostic procedures.
Safety-First Design: Features an automatic overpressure protection function that shuts down the system if rail pressure exceeds 1600 Bar.
Durable & Visible Operation: Equipped with a transparent plexiglass protective door for safe observation of the testing process.
Versatile Adjustability: Users can freely set injection times and frequency, as well as test the performance of rail pressure sensors and proportional solenoid valves.

Remote Diagnostics Support: Online remote assistance is available for installation, calibration and software upgrades.
12 Months Warranty: Full machine warranty covers spare parts and remote support for one year after delivery.

parameter

Technical Item	Specifications (Model CRS300S)
Control System	Industrial Computer (Windows Operating System)
Testing Range	Common Rail Injectors and Pumps (Bosch, Denso, Delphi, etc.)
Pressure Stability	Fluctuation Value ± 1 Mpa
Overpressure Protection	Automatic Shutdown > 1600 Bar
Display	LCD Real-time Pressure Display
Signal Adjustment	Adjustable Pulse Width and Frequency
Functions	Tightness Check, Injection Quantity, Return Flow, Solenoid Valve Test
Safety Shield	Plexiglass Protective Door
Data Storage	Query, Store, Modify, and Create Database
