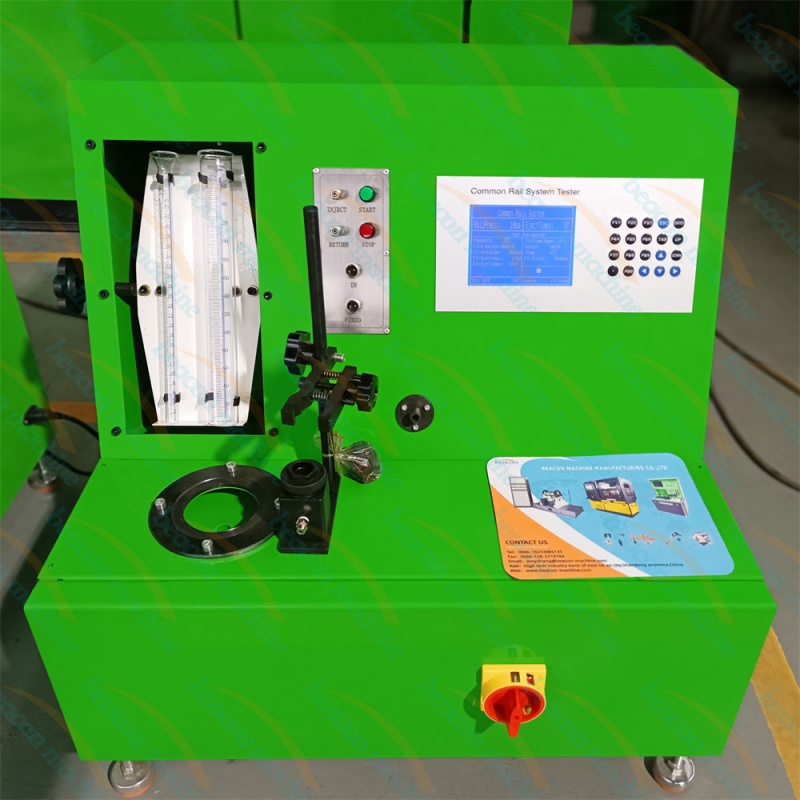

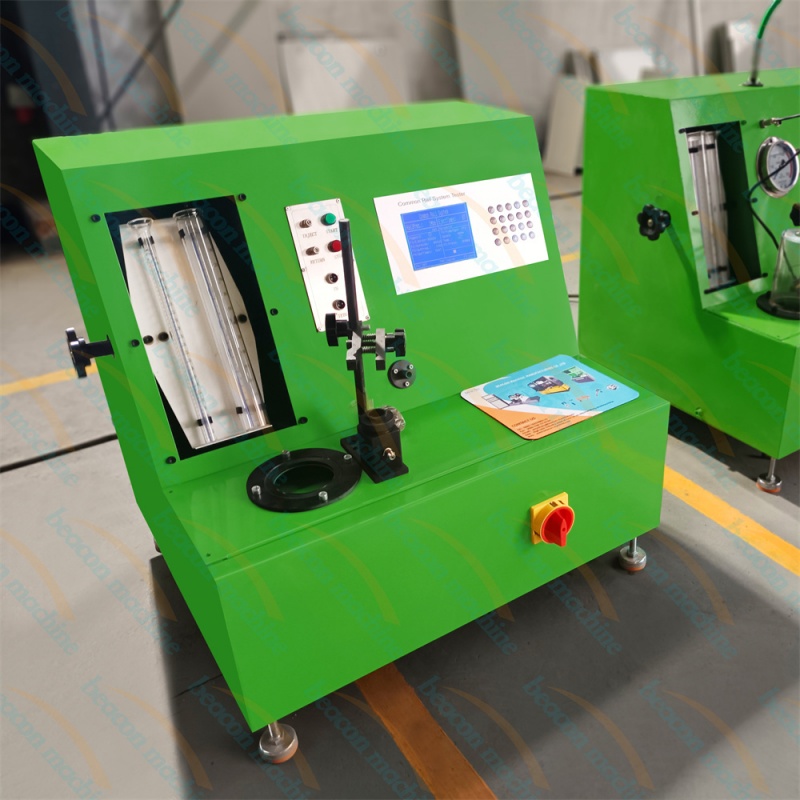

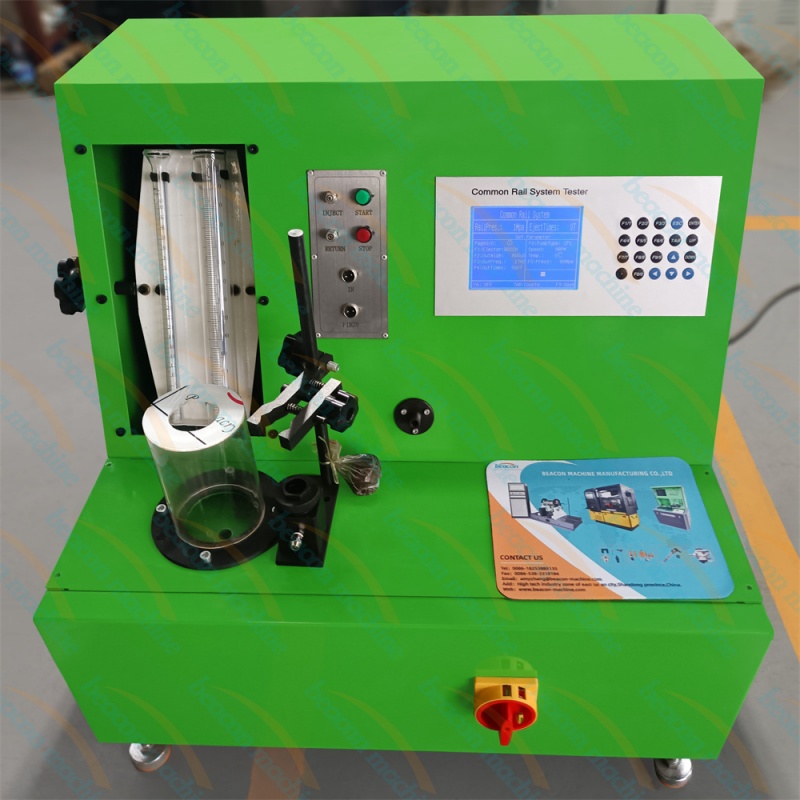

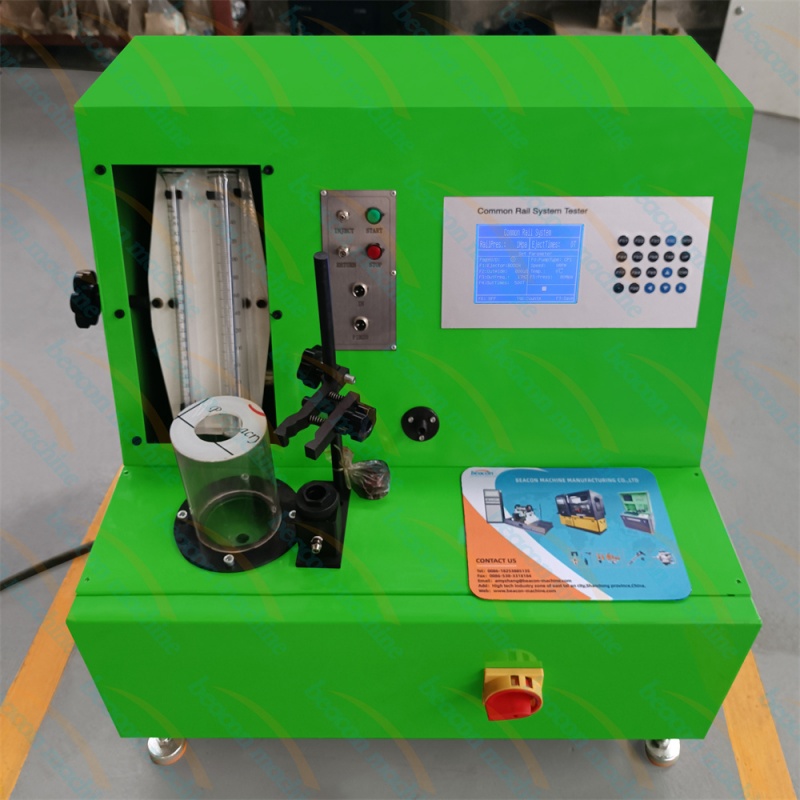

EPS100 EPS108 High Pressure Common Rail Injector Test Bench with 1.5KW Motor
The EPS100/EPS100S/EPS108 series is a compact and efficient high-pressure common rail injector test bench designed for professional diesel fuel system diagnostics. Powered by a 1.5KW single-phase 220V motor, it provides a stable test environment with oil pressure adjustable from 0 to 2000 bar. The system allows technicians to check nozzle spray patterns, sealability, and flow rates with high accuracy (0.1ml). While the EPS100 offers core testing capabilities, the EPS108 model features an additional pressure gauge and fuel port for enhanced monitoring and operational flexibility.

EPS100 Test Bench, Common Rail Injector Tester, EPS108 Calibration Machine

Compatible Common Rail Injector Brands

OEM Reference	Injector Family	Typical Vehicle
0445110 series	Bosch CP1 / CP3 solenoid	Mercedes A-Class, VW Golf, Hyundai H-1
0445116 series	Bosch CRI2-16 solenoid	BMW 320d, Volvo V50, Renault Laguna
0445117 series	Bosch CRI2-16 Piezo	Audi A4, Mercedes E-Class, VW Touareg
095000-0760	Denso ECD-U2P	Toyota Hilux, Mitsubishi Triton
EJBR01501Z	Delphi EUI	Land Rover Defender, Ford Transit
A2C59511601 / 5WS40539	Siemens Continental piezo	Ford Transit, Peugeot 308, Citroën C4

Compact Coverage and Applications

The compact and efficient high-pressure common rail injector test bench is designed for professional diesel fuel system diagnostics. Powered by a single-phase motor, it provides a stable test environment with adjustable oil pressure. Technicians can check nozzle spray patterns, sealability and flow rates with high accuracy across all common rail injectors. The EPS108 model features an additional pressure gauge for expanded monitoring.

Frequently Asked Questions

Q1. What is the difference between EPS100 and EPS108?
The EPS100 offers core testing capabilities; the EPS108 features an additional pressure gauge for expanded monitoring.

Q2. What can the test bench measure?
Nozzle spray patterns, sealability and flow rates with high accuracy across all common rail injectors.

Q3. Is the oil pressure adjustable?
Yes. The oil pressure can be adjusted across a wide diagnostic range to match different injector families.

Q4. Is it suitable for small workshops?
Yes. The compact footprint is ideal for small workshops and mobile diagnostic units.

Q5. Does it support solenoid and piezo injectors?
Yes. Both solenoid and piezo injector families are covered by the integrated driver signals.

EPS100 EPS108 High Pressure Common Rail Injector Test Bench with 1.5KW Motor Advantage

High Precision Measurement: Features a flow measurement accuracy of 0.1ml and a wide range of 0-600ml/1000 times for reliable data.
Powerful & Compact: 1.5KW motor power in a space-saving design (786775 cm), perfect for smaller workshops.
Variable Speed Control: Integrated frequency converter allows for stepless motor speed regulation from 0 to 3000 RPM.
Wide Pressure Range: Capable of generating up to 2000 bar rail pressure to simulate modern high-pressure diesel engine conditions.
Versatile Compatibility: Designed to test a variety of common rail injectors, including Bosch, Denso, and Delphi brands.
Upgraded Features: The EPS108 model includes an additional pressure gauge and fuel port compared to the base EPS100 model for more professional usage.

Remote Diagnostics Support: Online remote assistance is available for installation, calibration and software upgrades.
12 Months Warranty: Full machine warranty covers spare parts and remote support for one year after delivery.

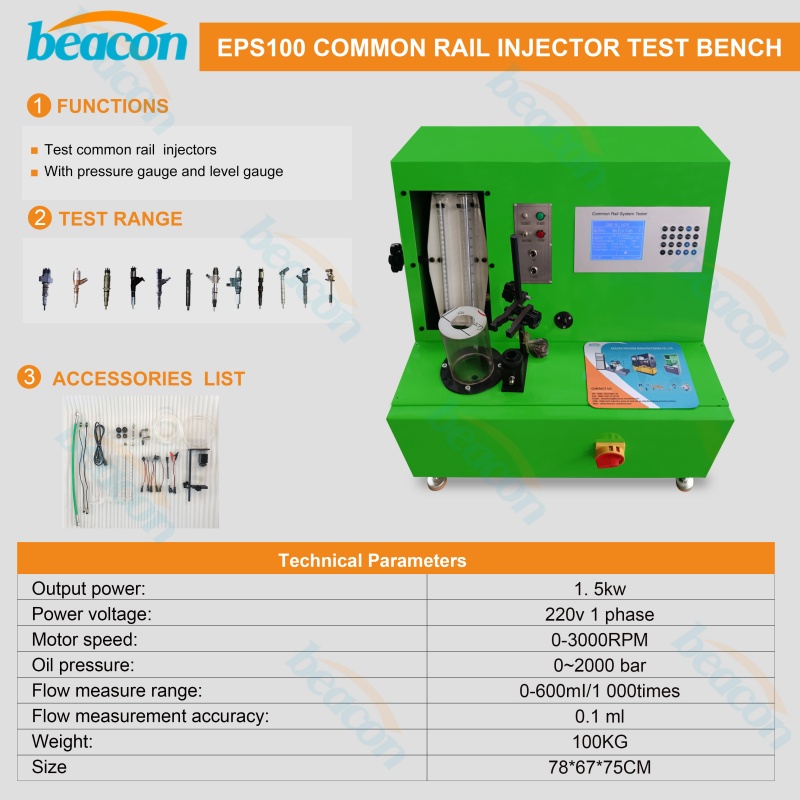

parameter

Technical Parameter	Specifications (EPS100 / EPS108)
Output Power	1.5 KW
Power Voltage	220V Single Phase
Motor Speed Range	0 - 3000 RPM
Oil Pressure Range	0 - 2000 Bar
Flow Measure Range	0 - 600 ml / 1000 times
Measurement Accuracy	0.1 ml
Machine Size (LWH)	78 * 67 * 75 cm
Net Weight	Approx. 100 KG
Model Difference	EPS108 adds an extra pressure gauge and fuel port
