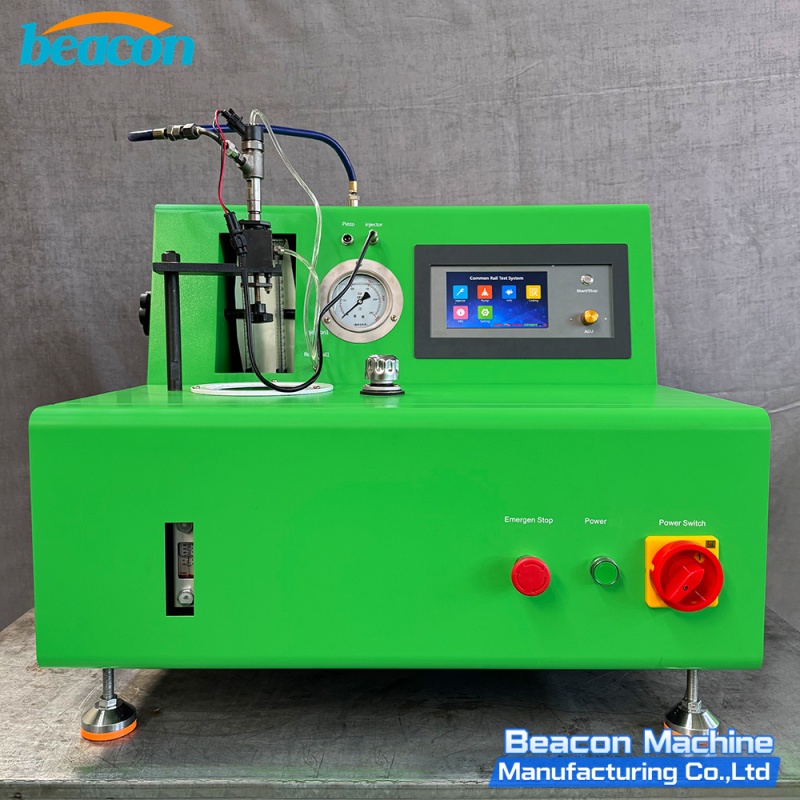

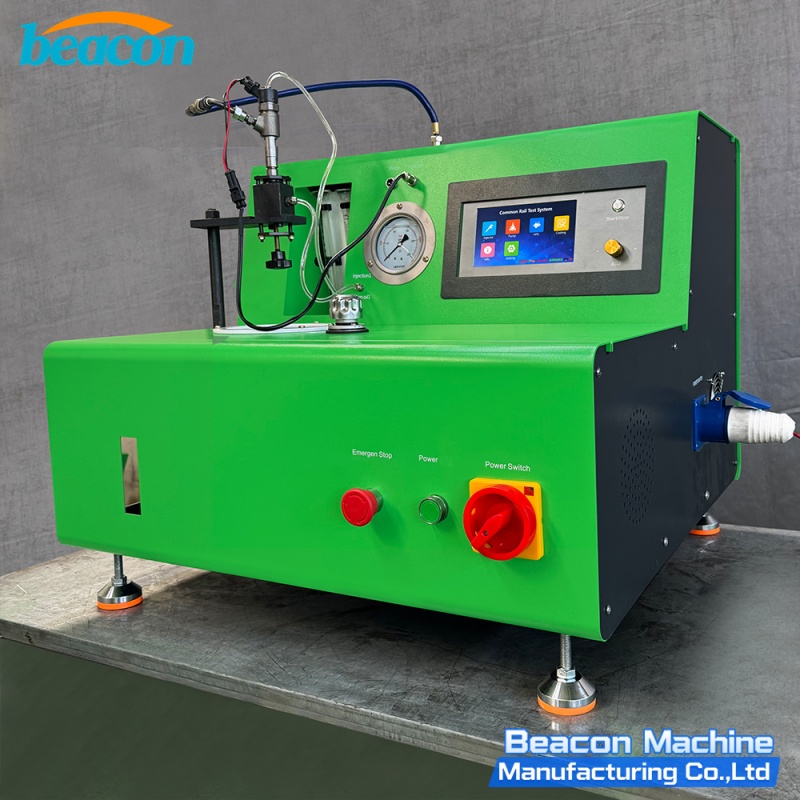

EPS106 Common Rail Injector Tester for Electromagnetic and Piezo Injectors

The EPS106 Series is a compact and highly efficient diagnostic tool designed for testing and calibrating both electromagnetic and piezoelectric injectors. Equipped with a high-precision flowmeter, it provides accurate fuel delivery data for a wide range of common rail injectors. The system features a built-in database with over 3,000 sets of standard data, allowing for real-time comparison and professional analysis. With its 7-inch color touch screen and intelligent closed-loop pressure control, the EPS106 simplifies complex testing procedures, making it an essential and affordable asset for modern diesel fuel system specialists.

Common Rail Injector Tester, Piezo Injector Test Rig, Fuel Injector Diagnostic Tool

Compatible Common Rail Injector Brands

OEM Reference	Injector Family	Typical Vehicle
0445110 series	Bosch CP1 / CP3 solenoid	Mercedes A-Class, VW Golf, Hyundai H-1
0445116 series	Bosch CRI2-16 solenoid	BMW 320d, Volvo V50, Renault Laguna
0445117 series	Bosch CRI2-16 Piezo	Audi A4, Mercedes E-Class, VW Touareg
095000-0760	Denso ECD-U2P	Toyota Hilux, Mitsubishi Triton
EJBR01501Z	Delphi EUI	Land Rover Defender, Ford Transit
A2C59511601 / 5WS40539	Siemens Continental piezo	Ford Transit, Peugeot 308, Citroën C4

Compact Coverage and Applications

The compact and highly efficient diagnostic tool is designed for testing and calibrating both electromagnetic and piezoelectric injectors. Equipped with a high-precision flowmeter, it provides accurate fuel delivery data for a wide range of common rail injectors. The built-in database with over 3,000 sets of standard data allows real-time comparison and professional analysis. With the 7-inch color touch screen and intelligent closed-loop pressure control, the platform simplifies diagnostic workflows for global workshops.

Frequently Asked Questions

Q1. What injector families does the EPS106 cover?
Both electromagnetic (solenoid) and piezoelectric injectors are supported on the same diagnostic platform.

Q2. How many standard data sets are included?
The built-in database contains over 3,000 sets of standard data for real-time comparison.

Q3. Does the touch screen help operations?
Yes. The 7-inch color touch screen simplifies diagnostics and provides clear visualization of test results.

Q4. How is pressure controlled?
Intelligent closed-loop pressure control maintains stable rail pressure for accurate diagnostic cycles.

Q5. Is it suitable for small workshops?
Yes. The compact design and built-in database make it ideal for small and medium-sized workshops.

EPS106 Common Rail Injector Tester for Electromagnetic and Piezo Injectors Advantage

Dual Injector Support: Capable of driving and testing both electromagnetic and high-end piezoelectric (Piezo) injectors simultaneously.
Extensive Database: Includes over 3,000 sets of standard injector data for comprehensive comparison and accurate diagnostics.
Advanced Flow Measurement: Features a dedicated flowmeter signal interface for precise detection of injector flow rates and return volume.
User-Friendly Interface: Equipped with a 7-inch industrial color touch screen for intuitive operation and real-time data visualization.
Smart Pressure Control: Supports both open-loop and closed-loop pressure regulation via ZME and DRV control signals for stable testing environments.
Compact & Space-Saving: Its optimized design makes it perfect for workshops with limited space without sacrificing professional functionality.
Safety & Reliability: Built-in short-circuit and over-pressure protection ensures the safety of the technician and the equipment.

Remote Diagnostics Support: Online remote assistance is available for installation, calibration and software upgrades.
12 Months Warranty: Full machine warranty covers spare parts and remote support for one year after delivery.

parameter

Technical Item	Specifications (Model EPS106)
Output Power	2.6 KW
Input Voltage	220V Single Phase
Injector Types	Electromagnetic and Piezoelectric
Display	7-inch Color Touch Screen
Data Storage	3000+ Standard Data Sets
Pump Control	ZME and DRV Signal Control
Pressure Control	Open-loop & Closed-loop Intelligent Control
Oil Measurement	Electronic Flowmeter Detection
Optional Functions	QR Code Generation Function
