EPS212 Common Rail Injector Test Bench for Solenoid and Piezo

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

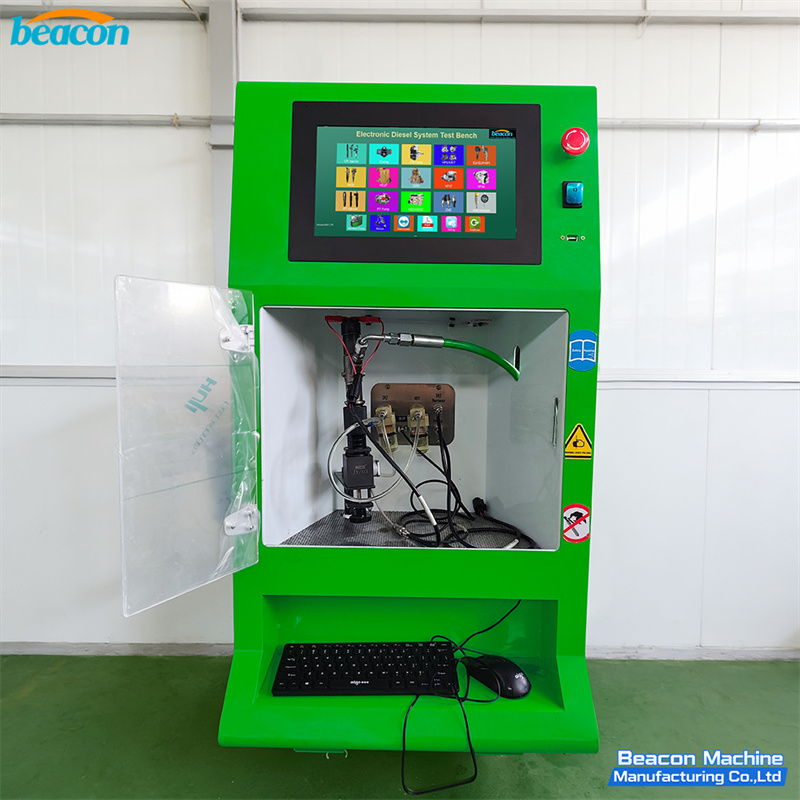

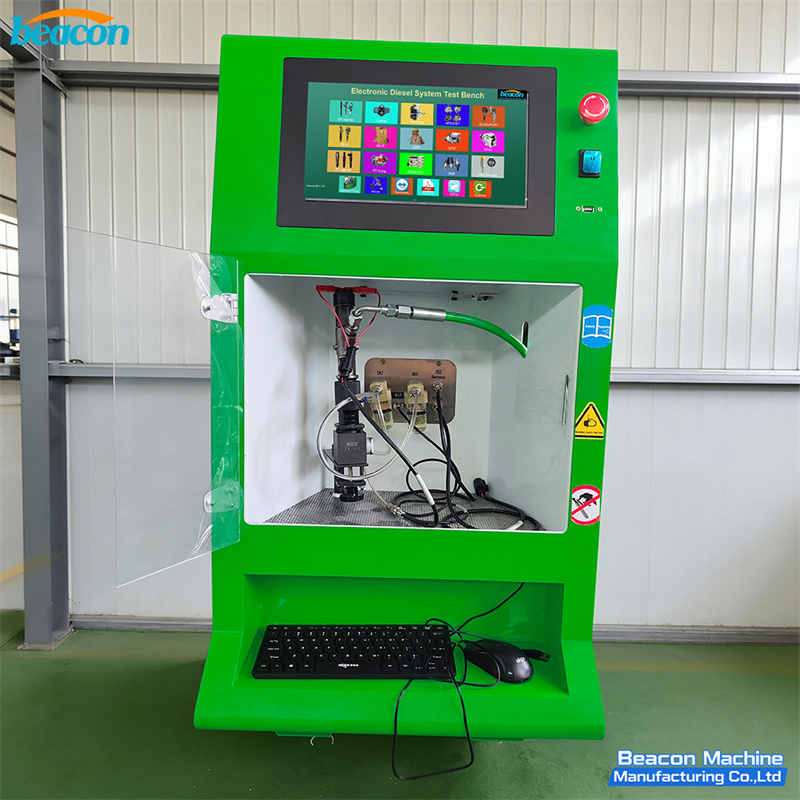

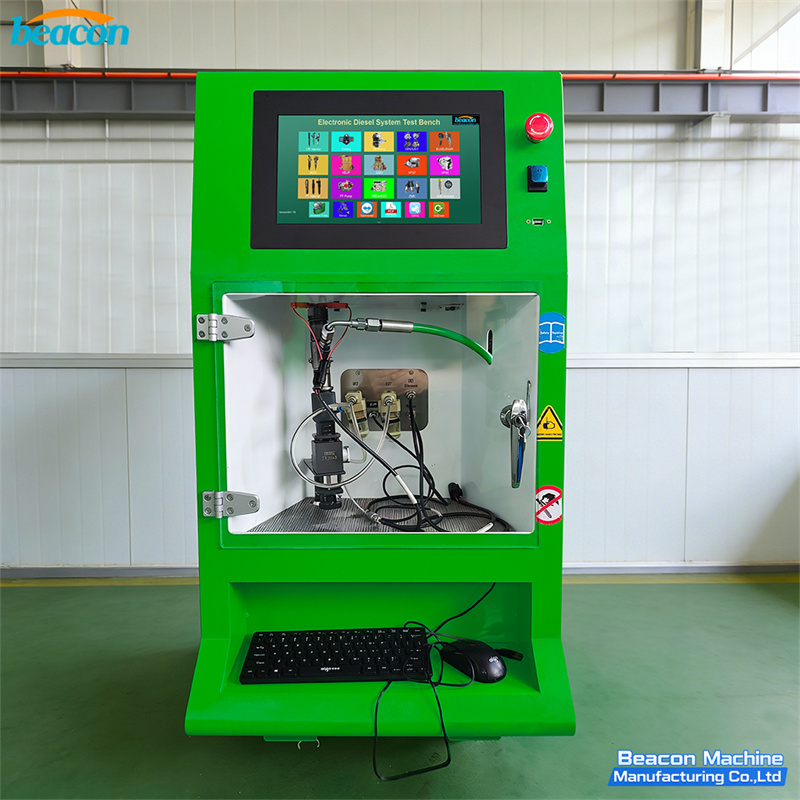

EPS212 Common Rail Injector Test Bench for Solenoid and Piezo Injectors

The EPS212 Common Rail Injector Test Bench is a professional diagnostic solution designed for modern diesel service shops. It supports a wide range of high-speed solenoid valve injectors and the third-generation piezoelectric crystal (Piezo) technology. Operating on a standard 220V single-phase power supply, it is highly adaptable to various workshop environments. The machine utilizes an intelligent PID algorithm for precise rail pressure control up to 200MPa. With its integrated flow sensor and built-in database of thousands of test plans, the EPS212 ensures accurate measurement of fuel delivery and back-leakage for Bosch, Denso, Delphi, and Siemens injectors.

Common Rail Injector Tester, Diesel Injector Test Bench, Piezo Injector Test Machine

Supported High-Frequency Injectors, Engines and Pumps

The EPS212 compact common rail injector test bench tests both solenoid and piezo injectors up to 200 MPa (2000 bar) using a Bosch CP1H pump. It covers the most searched injectors: Bosch 0445116018, 0445120288, Denso 094000-0342, Delphi 28353991, and supports Toyota Hilux 1KD 2KD, Isuzu 4JJ1, Mercedes, Volvo and Ford 6.0 Powerstroke systems.

Brand	High-Frequency Part Numbers	Engines / Vehicles
Bosch	0445116018, 0445110183, 0445120288	Mercedes Actros, VW, Volvo, Ford
Denso	094000-0342, 095000-7950, 23670-30450	Toyota Hilux, Isuzu 4JJ1/4HK1, Hino
Delphi	28353991, EJBR0181A	Volvo D12A, Detroit DDC13, DAF

Key Advantages

220V single-phase power supply, ideal for small workshops
Bosch CP1H common rail pump with PID pressure control
High precision flow sensor oil measurement
Compact 80*75*120 cm footprint, 140 kg net weight

EPS212 Common Rail Injector Test Bench for Solenoid and Piezo Advantage

Broad Compatibility: Supports high-speed solenoid and piezoelectric (Piezo) injectors from major brands like Bosch, Denso, Delphi, and Siemens.
Advanced Pressure Control: Features an intelligent PID algorithm for more precise and stable rail pressure management up to 2000 Bar.
Compact & Versatile Power: Designed for 220V single-phase power, making it perfect for small to medium-sized workshops without 380V access.
Comprehensive Testing: Capable of testing full-load (GET), idle (LL), pre-injection (VE), and emission (EM) conditions with high accuracy.
Enhanced Safety: Built-in dual short-circuit protection in both software and hardware ensures long-term machine reliability and operator safety.

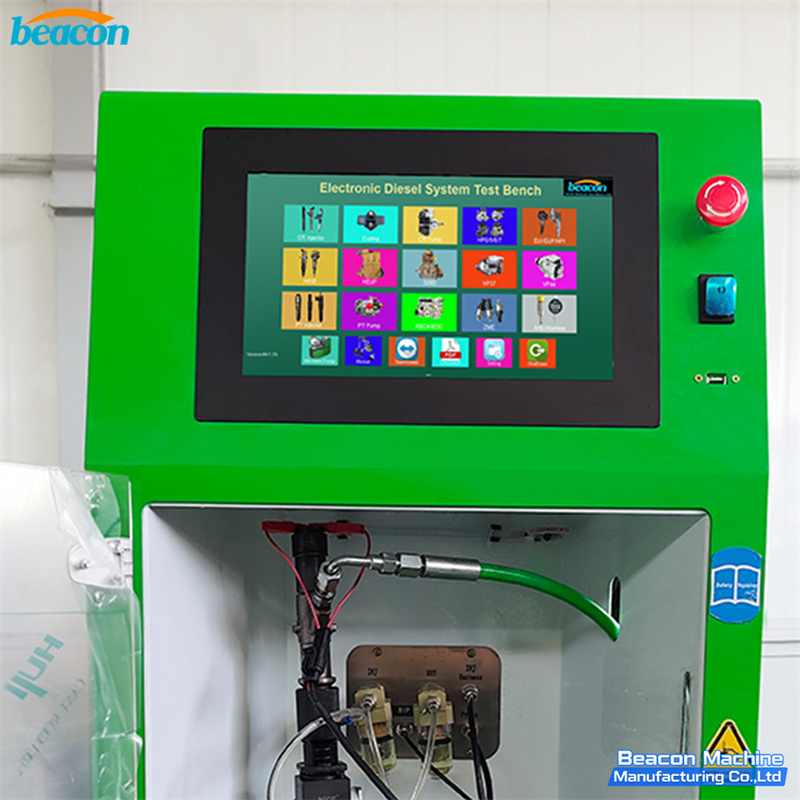

User-Friendly Interface: Equipped with a clear LCD display and a massive database of over 7,000 injector test data points for quick searching and calibration.
High-Quality Components: Uses the original Bosch CP1H common rail pump to provide steady and reliable high-pressure output.

parameter

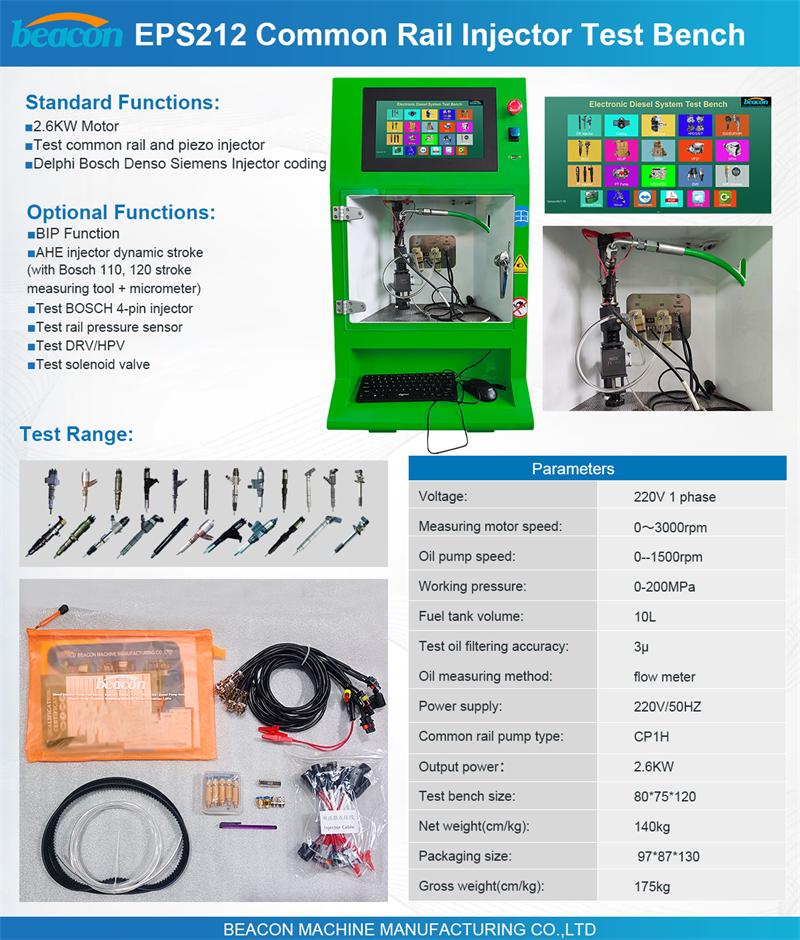

Technical Parameter	Specifications (Model EPS212)
Voltage / Power Supply	220V Single-phase / 50HZ
Output Power	2.6 KW (Standard 3.6KW Config available)
Working Pressure Range	0 - 200 MPa (2000 Bar)
Oil Pump Speed	0 - 1500 rpm
Measuring Motor Speed	0 - 3000 rpm
Oil Measuring Method	Flow Meter (High Precision Sensor)
Common Rail Pump Type	BOSCH CP1H
Fuel Tank Volume	10 Liters
Test Bench Size (cm)	80 * 75 * 120
Net Weight	140 kg
