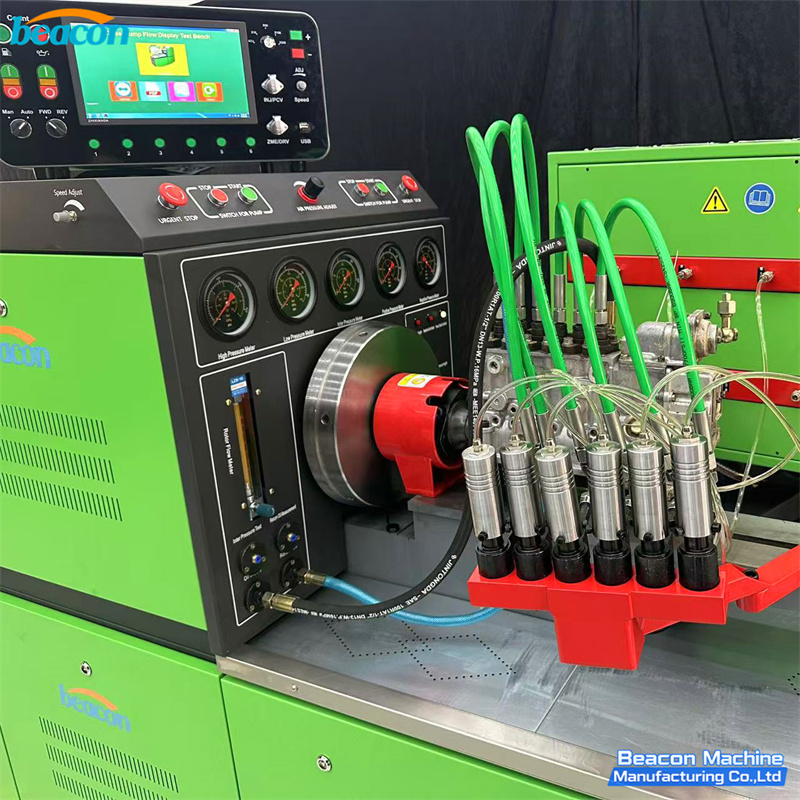

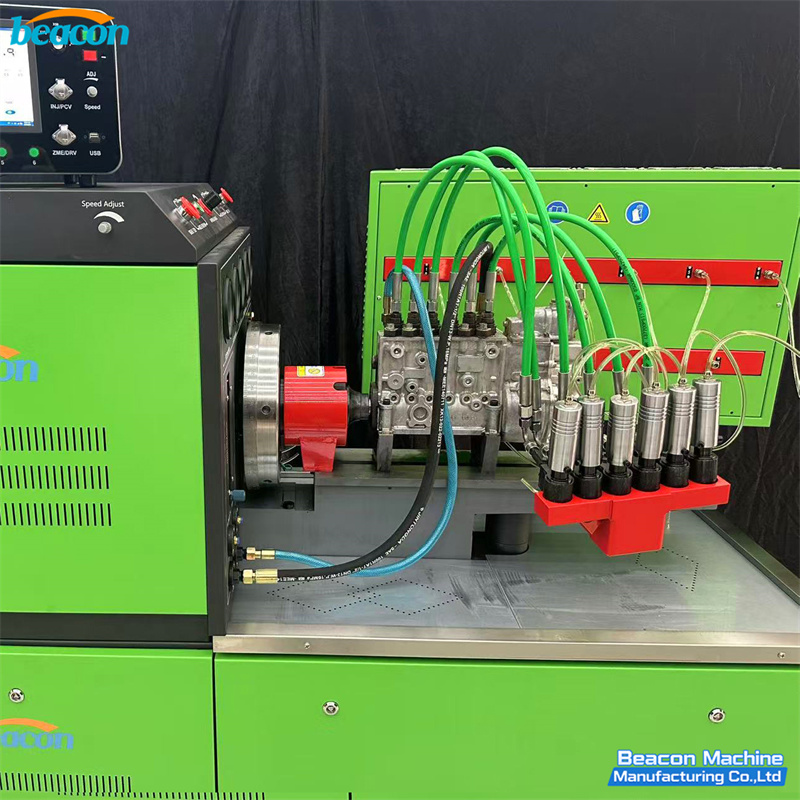

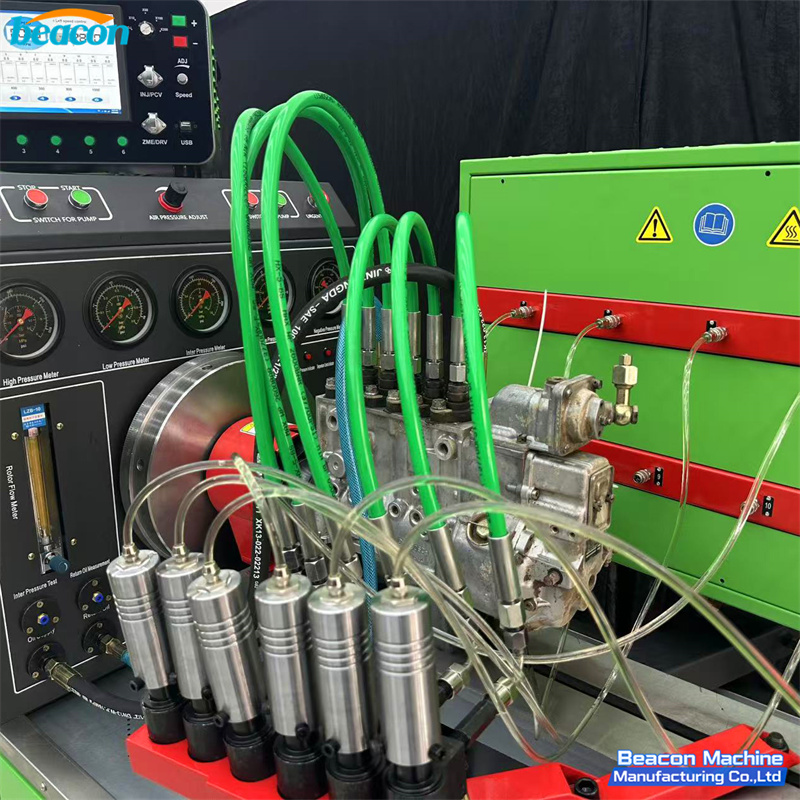

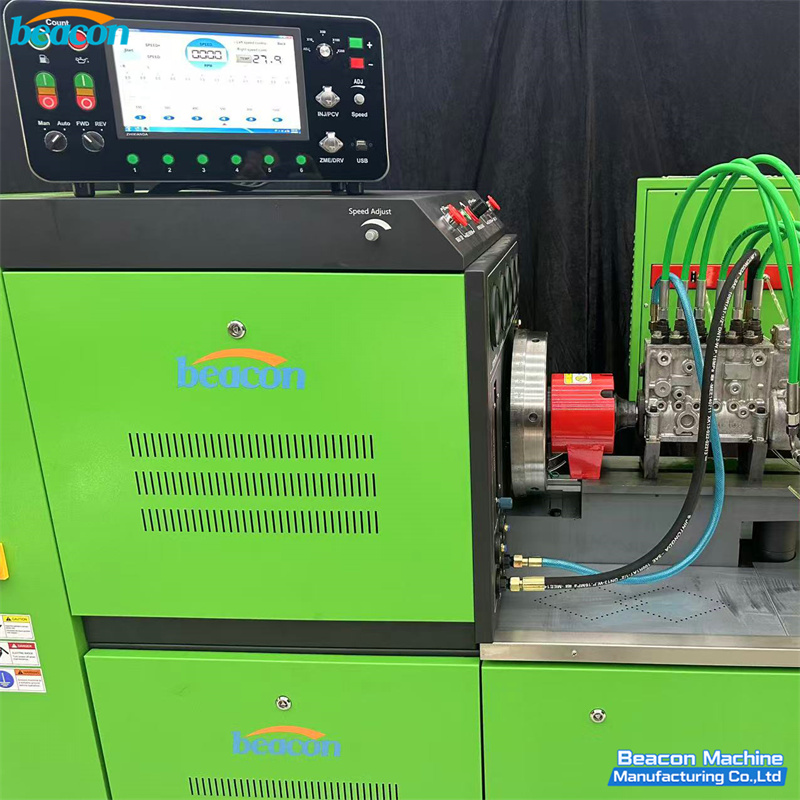

ES816 Diesel Injection Pump Test Bench

ES816 Diesel Injection Pump Test Bench

The ES816 Diesel Injection Pump Test Bench is a professional fuel injection pump testing machine designed for diesel injection pump repair workshops and service centers. Equipped with a 22kW three-phase main motor and frequency-converter speed control, it provides precise, stepless speed regulation from 20 to 4000 r/min, allowing accurate testing of in-line pumps, distributor pumps and VE pumps under real working conditions.

The bench integrates a complete test oil system with high and low pressure supply, automatic oil temperature control and a multi-function controller for measuring cylinder delivery, injection count and rotational speed. It is widely used for checking and adjusting mechanical governors, distributor pumps, delivery valves and electromagnetic actuators, making it an essential tool for professional diesel fuel injection equipment service.

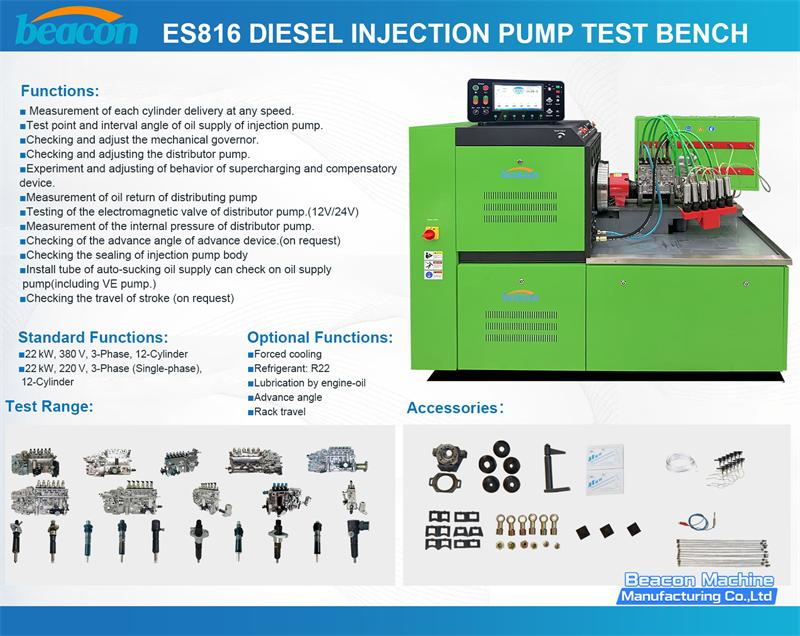

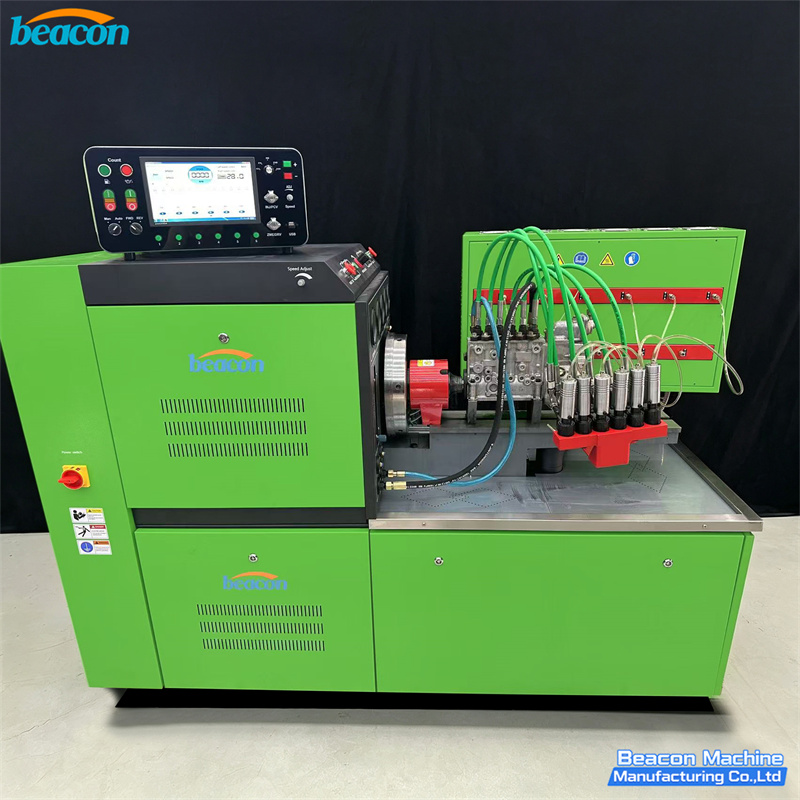

Main Functions

• Measurement of each cylinder delivery at any speed

• Test point and interval angle of oil supply of injection pump

• Checking and adjusting the mechanical governor

• Checking and adjusting the distributor pump

• Experiment and adjusting of behavior of supercharging and compensatory device

• Measurement of oil return of distributing pump

• Testing of the electromagnetic valve of distributor pump (12V/24V)

• Measurement of the internal pressure of distributor pump

• Checking of the advance angle of advance device (on request)

• Checking the sealing of injection pump body

• Install tube of auto-sucking oil supply can check on oil supply pump (including VE pump)

• Checking the travel of stroke (on request)

Test Range

• Advance angle

• Rack travel

Diesel Injection Pump Test Platform

The platform provides comprehensive testing for mechanical and hydraulic diesel injection pumps including inline pumps, distributor pumps and VE-type pumps. Supported pump families include Bosch P7100 / P8000 inline, Bosch VE4 / VE6 rotary, Lucas DPA / DPS rotary, Stanadyne DB4 / DB2 inline, and Zexel VRZ / VRD rotary systems.

Pump Calibration and Governor Testing

The platform delivers high-precision flow measurement, pressure analysis and mechanical governor verification for 12-cylinder inline and rotary pumps. Calibration profiles include idle speed, rated speed, full load and torque curve with frequency conversion motor control for accurate simulation.

FAQ — Frequently Asked Questions

Q1. What diesel injection pump families are supported?
A: Bosch P7100 / P8000 inline, Bosch VE4 / VE6 rotary, Lucas DPA / DPS rotary, Stanadyne DB4 / DB2 inline, Zexel VRZ / VRD rotary.

Q2. How many cylinders can be tested?
A: Up to 12-cylinder inline and rotary pump configurations are supported.

Q3. Does the platform test mechanical governors?
A: Yes. Mechanical governor testing is integrated for throttle shaft and idle spring verification.

Q4. What is the motor configuration?
A: Frequency-conversion motor with industrial-grade speed control for accurate pump simulation.

Q5. Is the platform suitable for professional pump service centers?
A: Yes. The 22kW motor and frequency-converter control support continuous commercial operation in professional workshops.

Supported Mechanical Diesel Injection Pump Families

The ES816 test platform covers inline and rotary mechanical diesel injection pumps including Bosch P7100 / P8000 inline, Bosch VE4 / VE6 rotary, Lucas DPA / DPS rotary, Stanadyne DB4 / DB2 inline, and Zexel VRZ / VRD rotary families. The platform performs delivery calibration, plunger diameter measurement, governor calibration and spray pattern analysis for light commercial, heavy-duty and industrial applications.

Compatible Engine Applications

The mechanical pump platform covers naturally aspirated and turbocharged diesel engines for passenger cars, light commercial vehicles, heavy-duty trucks, construction machinery and generator sets. Common platforms include Mercedes-Benz OM616 / OM617, BMW M21, Volkswagen 1.6D / 1.9D, Peugeot XUD7 / XUD9, Perkins 4.108 / 4.135 / 4.236 and Yanmar 4JH series.

FAQ — Frequently Asked Questions

Q1. Which mechanical pump families does the ES816 cover?
A: Bosch P7100 / P8000 inline, Bosch VE4 / VE6 rotary, Lucas DPA / DPS, Stanadyne DB4 / DB2 and Zexel VRZ / VRD families.

Q2. Can the platform test both inline and rotary pumps?
A: Yes. The platform supports inline and rotary mechanical pump families with dedicated mounting kits.

Q3. What calibrations are available?
A: Delivery calibration, plunger diameter measurement, governor calibration and spray pattern analysis.

Features

• 22kW main motor, 380V three-phase, up to 12 cylinders

• Frequency-converter stepless speed control, 20-4000 r/min

• 10-step speed preset unit for quick testing

• Multi-function controller with digital counting and temperature display

• Automatic test oil temperature stabilization at 40±2℃

• High and low pressure test oil system (0-4MPa / 0-0.4MPa)

• Pneumatic booster checking and feeding device

• DC12V/24V switchable supply for electromagnetic valves

• High pressure static timing device

• Forced cooling and engine-oil lubrication

• Emergency stop button for safe operation

• Optional 220V three-phase (single-phase) version

After-Sales Service and Warranty

• Remote Diagnostics: Online support via TeamViewer and remote desktop tools for software configuration, calibration profile updates and database upgrades.

• Spare Parts Supply: Genuine spare parts available for shipment within 48 hours from the regional service center.

• Training and Onboarding: On-site or remote operator training covering operation, calibration and software upgrades.

• 12 Months Warranty: Full machine warranty covers spare parts and remote support for one year after delivery.
