G1-32 Metering Unit Test & Repair Kit

G1-32 Metering Unit Test & Repair Kit

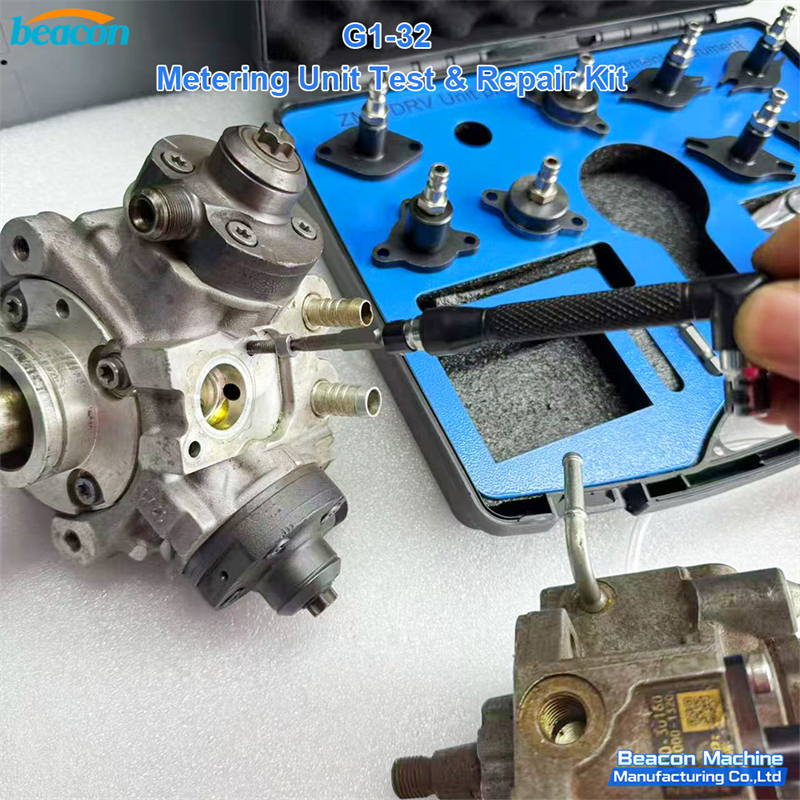

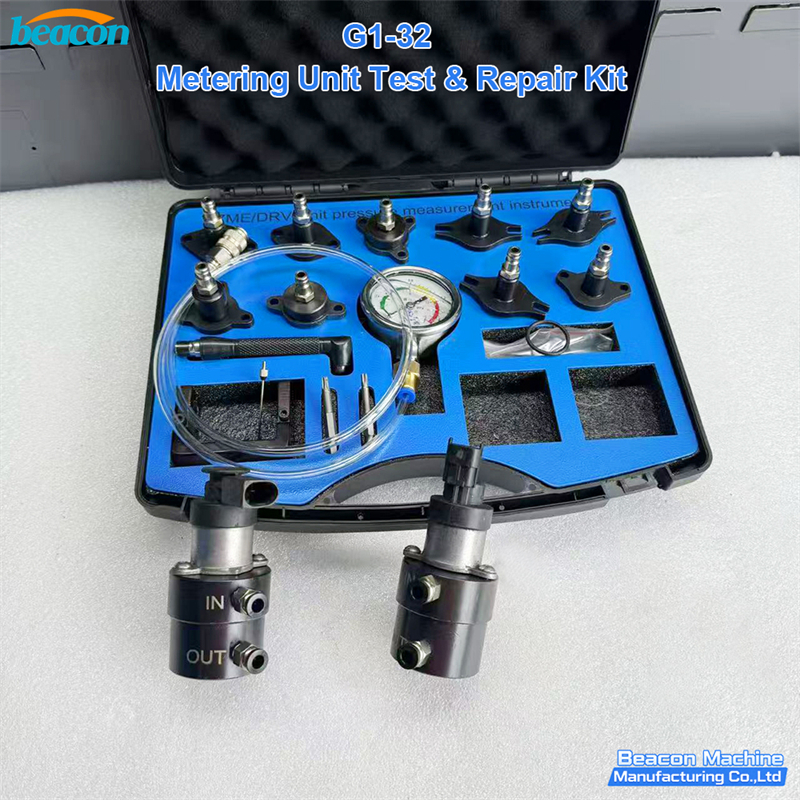

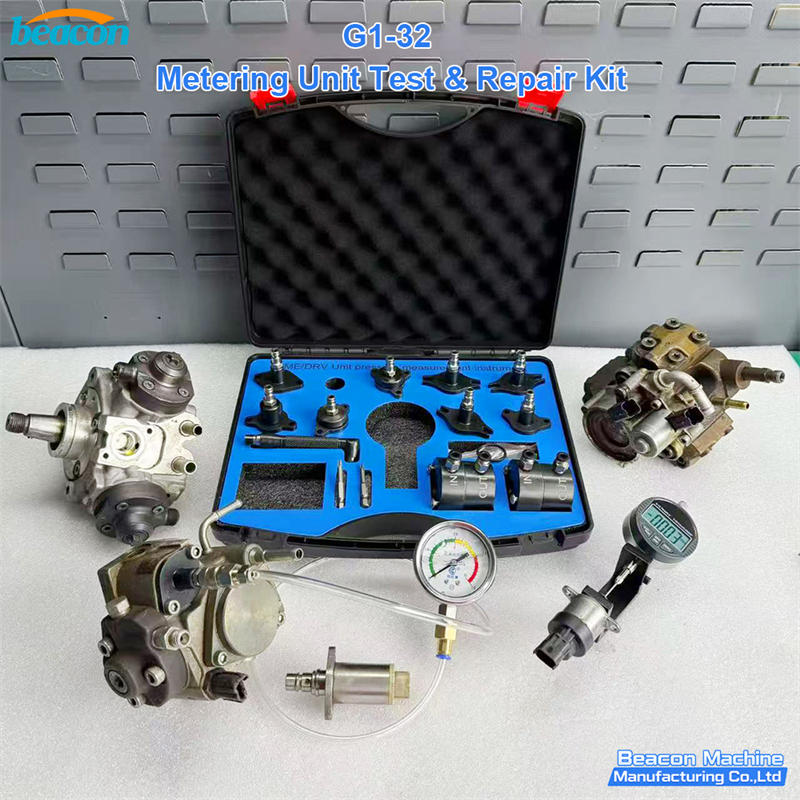

The G1-32 is a workshop tool set designed to test, diagnose and repair the metering unit (also called suction control valve, SCV) found on common rail diesel pumps. The kit includes a precision pressure gauge, a transparent test hose with quick coupler, and nine adapter heads that cover the most common metering unit bodies in the aftermarket.

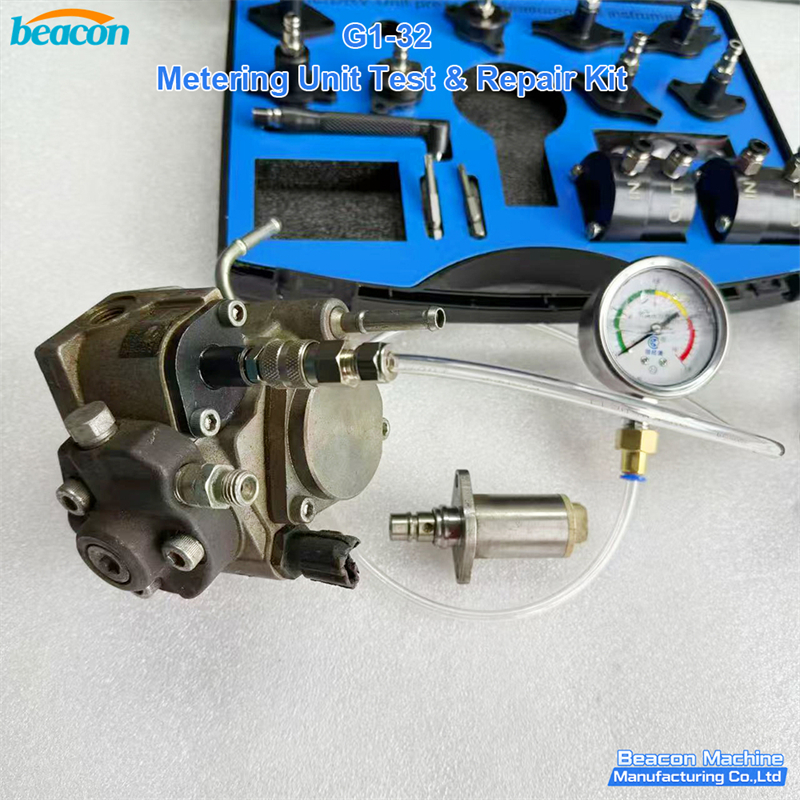

With the G1-32, a technician can verify the opening pressure, leakage rate and response of a metering unit before it is reinstalled on a Bosch CP1 / CP3, Denso HP0 or Delphi DFP type pump. The set runs from shop-air or hand-pump pressure and shows the result directly on the dial gauge, so the test can be completed on the bench in minutes without an engine test bench.

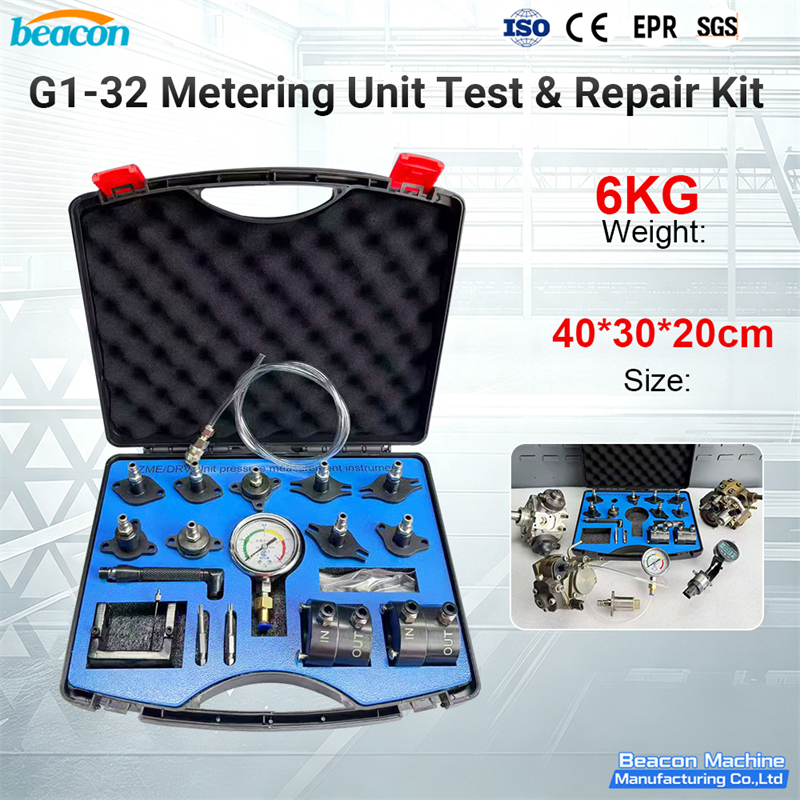

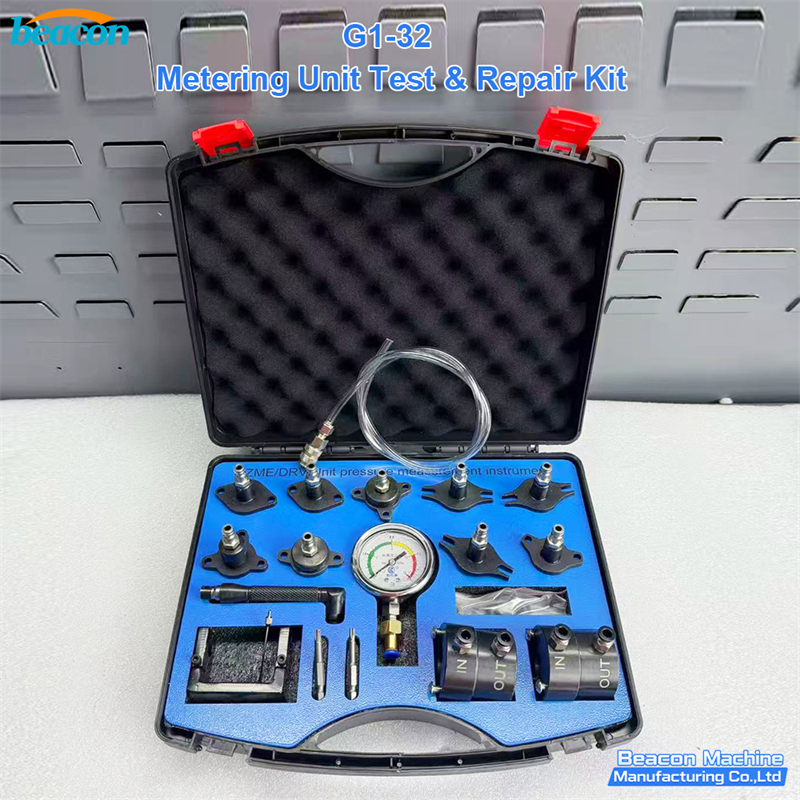

The whole set is packed in a hard-shell carry case with custom foam insert. Each adapter has a labelled slot, which means the workshop never loses parts between jobs. The kit is suitable for repair shops handling Bosch 0445020 / 0445025 series CP1 pumps, Bosch 0445010 / 0445013 series CP3 pumps, Denso HP0 pumps on Toyota and Hino, and Delphi DFP series pumps on GM / Opel diesel applications.

The G1-32 complements any common rail injector test bench: bench-testing the pump volume first, then verifying the metering unit on the bench with this kit, brings pump diagnosis closer to the workshop floor and saves the cost of replacing a complete pump assembly when only the SCV is at fault.

For wholesale orders, technical support and after-sales please contact Beacon Machine Manufacturing Co., Ltd via WhatsApp: +86 18253885138.

Frequently Asked Questions

Q1: Which metering units can the G1-32 test?
A1: The kit ships with 9 adapters covering the metering units used on Bosch CP1 (0445020 series), Bosch CP3 (0445010 series), Denso HP0 and Delphi DFP common rail pumps. Adapters are interchangeable so one kit serves multiple pump families.

Q2: Does the kit need a power supply?
A2: No. The kit is driven by shop air or a hand pump. The dial gauge reads pressure directly. No electrical power is required.

Q3: What does the gauge measure?
A3: The gauge indicates opening pressure, leakage rate and holding pressure of the metering unit during the test cycle. The green / yellow / red dial makes pass / fail judgement easy.

Q4: Is training provided?
A4: Remote diagnostics support is included with every kit. On-site commissioning can be arranged through Beacon after-sales; please contact us on WhatsApp for schedule and conditions.

Q5: Are spare adapters available?
A5: Yes, each adapter is sold separately and can be ordered by quoting the slot number from the foam insert. Beacon stocks adapters for most Bosch, Denso and Delphi metering units.

• Dedicated metering unit (SCV) test and repair kit for common rail diesel pumps

• Includes 9 application-specific adapters covering Bosch CP1 / CP3, Denso HP0 and Delphi DFP pumps

• Precision dial gauge shows opening pressure, leakage and response on a green / yellow / red scale

• Transparent test hose with quick coupler for fast setup and clean operation

• No electrical power required — driven by shop air or hand pump

• Hard-shell carry case with custom foam insert keeps adapters organised

• Compatible with Bosch 0445020 / 0445025 CP1 and 0445010 / 0445013 CP3 series pumps

• Suitable for Denso HP0 metering units on Toyota / Hino diesel applications

• Supports Delphi DFP series pumps on GM / Opel common rail engines

• Workshop-friendly companion to any common rail injector test bench
