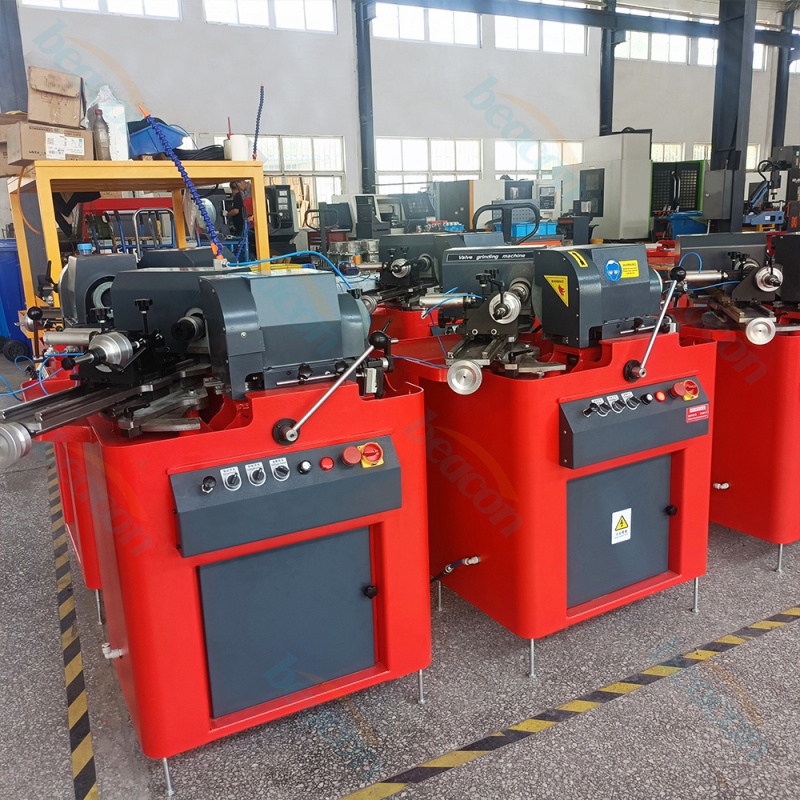

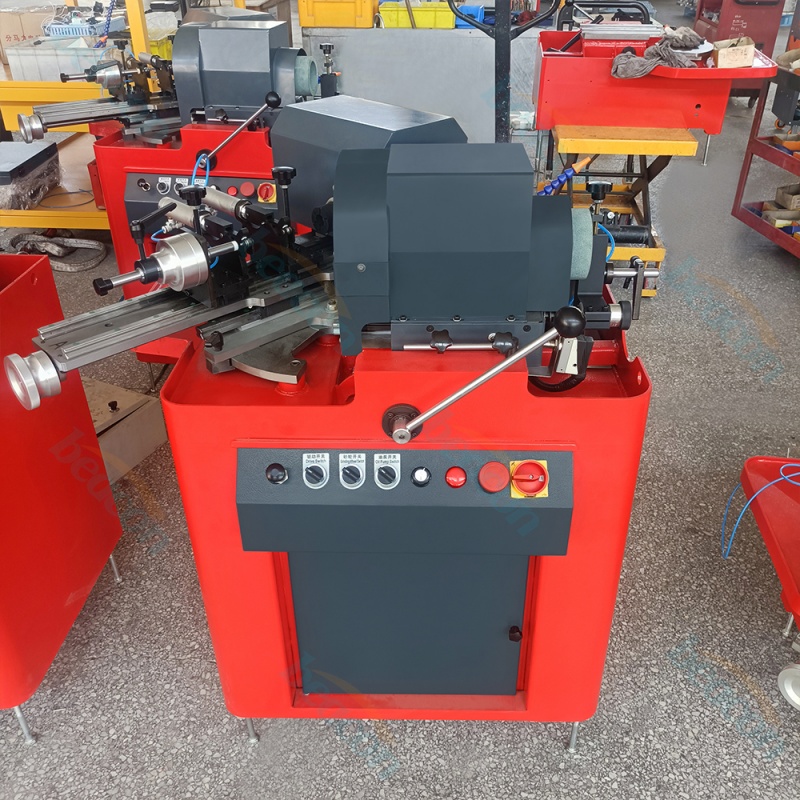

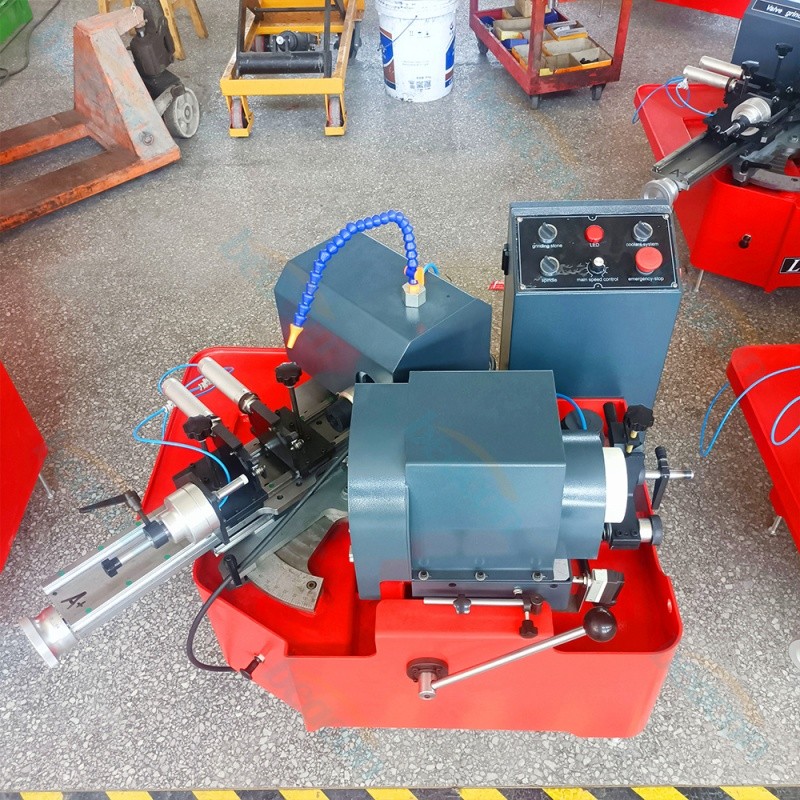

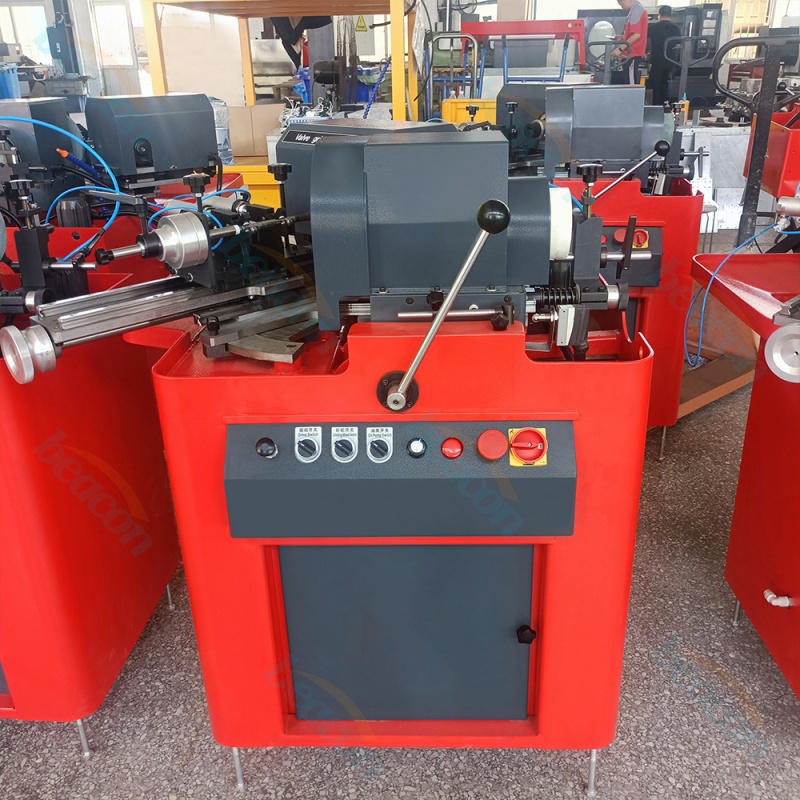

GS-100B High Precision Engine Valve Grinding Machine

The GS-100B Valve Grinding Machine is a specialized, high-efficiency equipment designed for resurfacing engine valves of automobiles, tractors, and motorcycles. It is ideal for both individual custom jobs and small batch production. Featuring a compact design and flexible operation, this machine ensures high machining precision for valve seats and stems. Its integrated cooling system and adjustable angle settings make it a versatile tool for professional engine reconditioning workshops.

GS-100B High Precision Engine Valve Grinding Machine Advantage

High Precision: Specifically engineered to achieve a bright and smooth finish on the valve working ring and end faces.

Wide Application: Suitable for a broad range of engine valves with stem diameters from 3.5mm up to 20mm.

Flexible Angle Adjustment: Features an easy-to-use scale for adjusting the grinding angle between 10° and 57°.

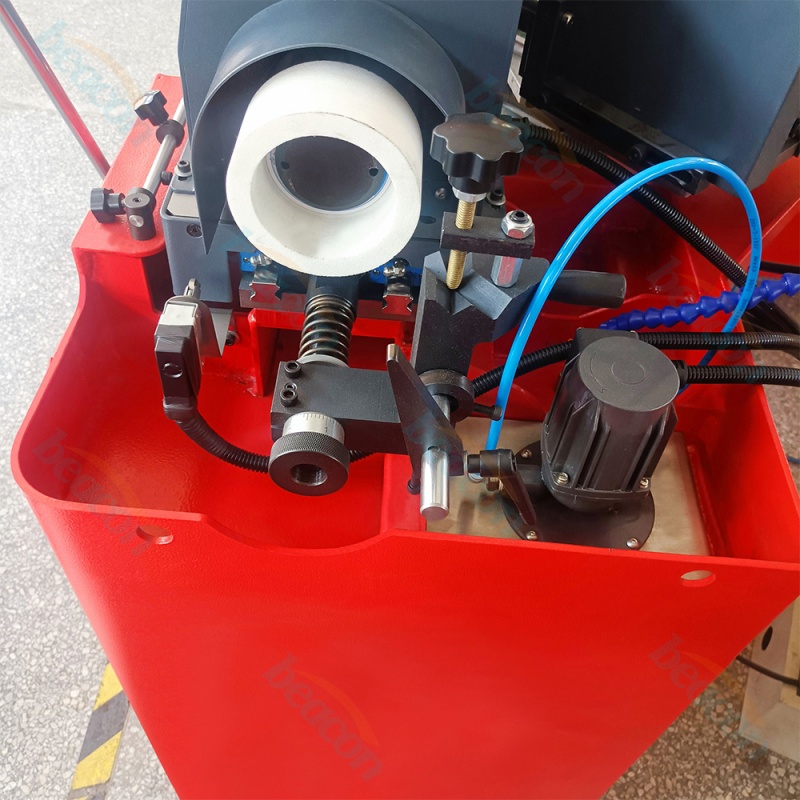

Dual Grinding Capability: Equipped with both a main grinding wheel for valve seats and a cup wheel for valve end chamfering.

Compact & Portable: Small volume design allows for flexible placement and easy operation in limited workshop spaces.

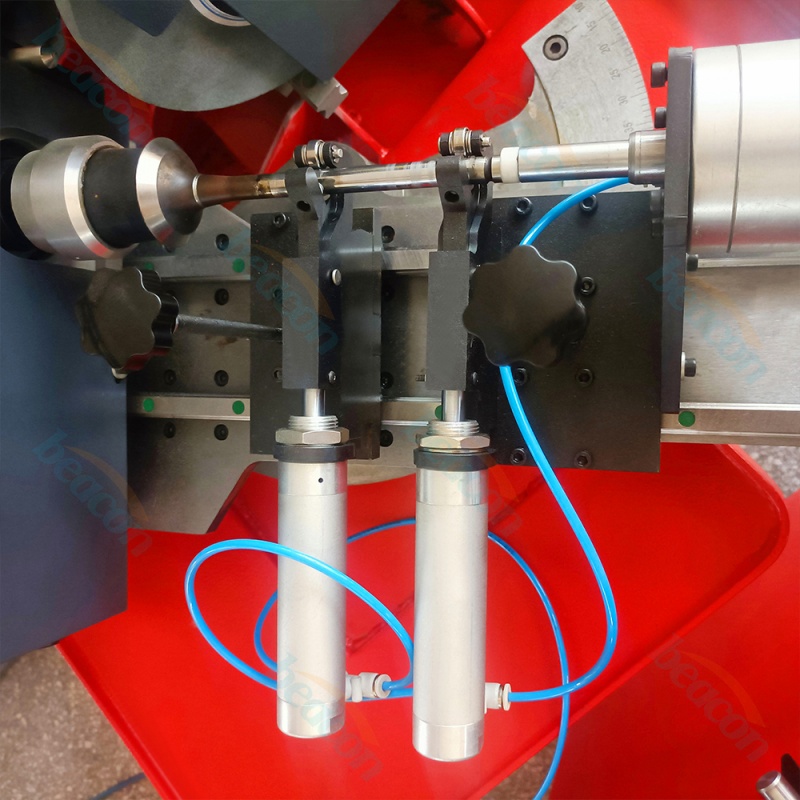

Stable Operation: Includes a dedicated oil pump and V-slot fixing support to ensure stable positioning during the grinding process.

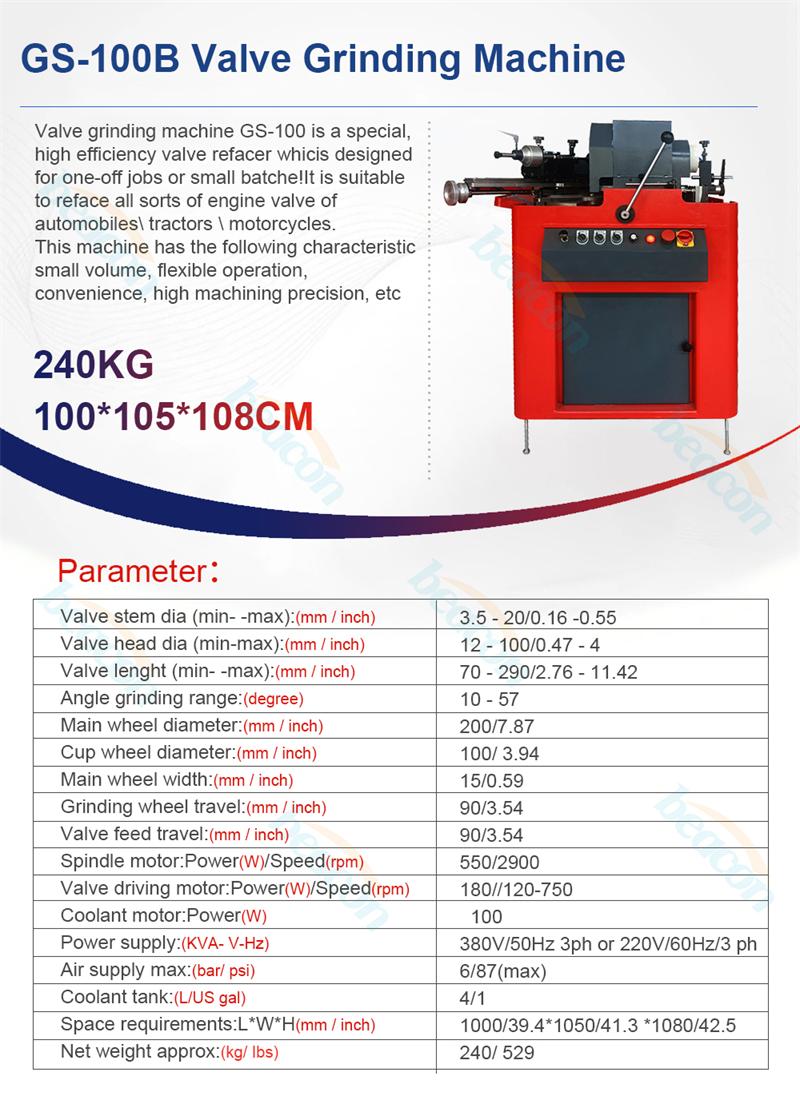

parameter

Technical Parameter	Specifications (GS-100B)
Valve Stem Diameter (Min-Max)	3.5 - 20 mm (0.16 - 0.55 inch)
Valve Head Diameter (Min-Max)	12 - 100 mm (0.47 - 4 inch)
Valve Length (Min-Max)	70 - 290 mm (2.76 - 11.42 inch)
Angle Grinding Range	10 - 57 degrees
Main Wheel Diameter	200 mm (7.87 inch)
Cup Wheel Diameter	100 mm (3.94 inch)
Main Wheel Width	15 mm (0.59 inch)
Grinding Wheel Travel	90 mm (3.54 inch)
