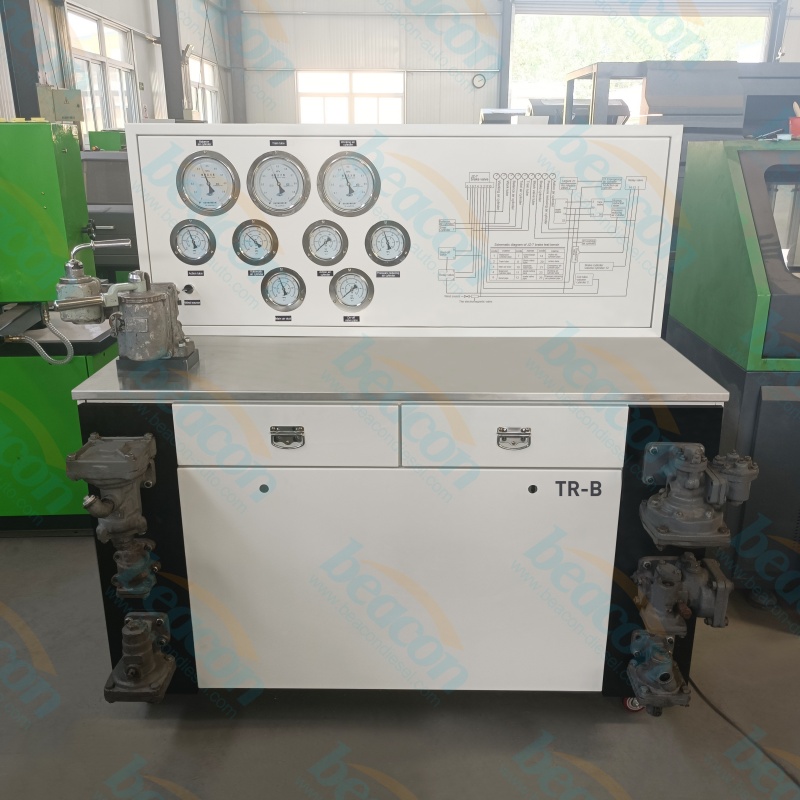

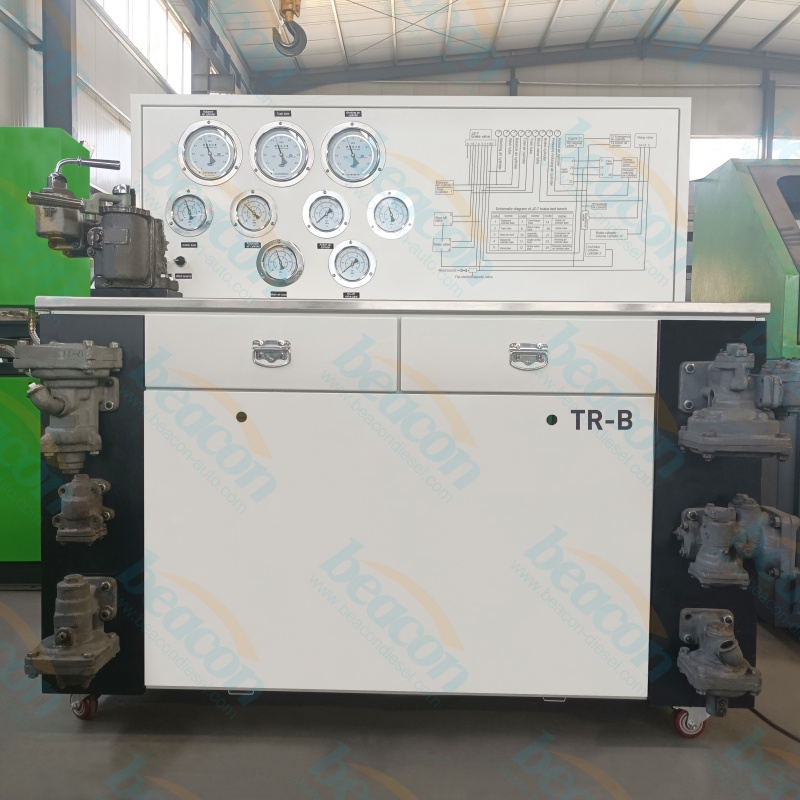

TR-B Railway Train Brake System Test Bench for JZ-7 Brake Valves

TR-B Railway Train Brake System Test Bench for JZ-7 Brake Valves

The TR-B Railway Brake Test Bench is a specialized diagnostic platform designed for the comprehensive performance testing of JZ-7 brake system components. It is capable of verifying the functionality of automatic brake valves, individual brake valves, shut-off valves, relay valves, and distribution valves. By simulating real-world locomotive braking conditions, the TR-B ensures that every valve part meets the rigorous safety standards required for railway operations.

This test bench utilizes a full-pointer pressure gauge display system, transforming complex brake testing processes into intuitive, clear visual data. It significantly improves the reliability of inspections, reduces labor intensity for operators, and effectively prevents missed or false detections during the maintenance of locomotive brake systems.

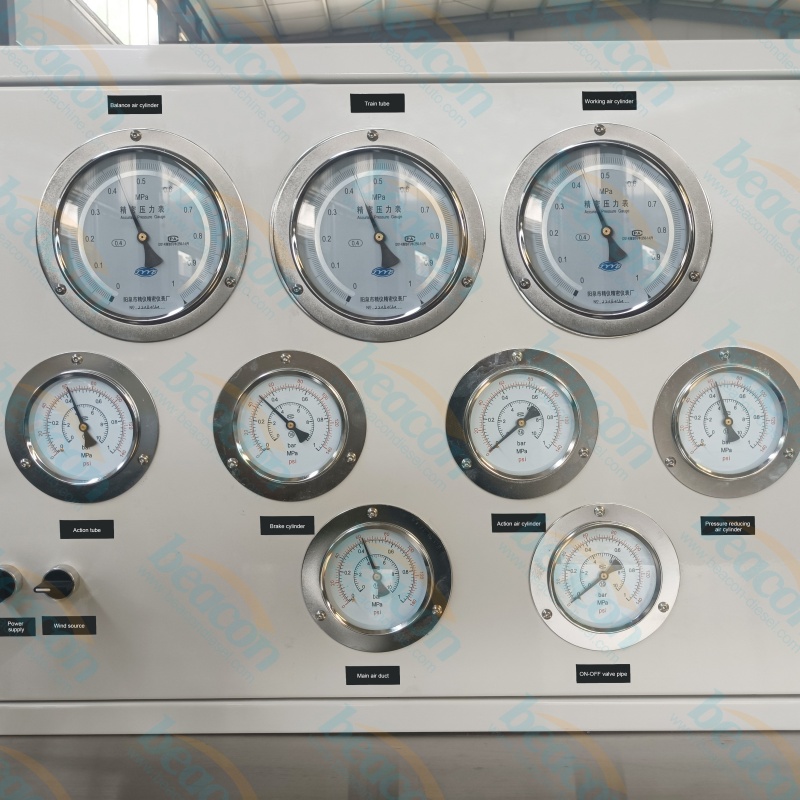

• Intuitive Monitoring: Equipped with 9 precision pressure gauges providing a clear view of the balance cylinder, train pipe, action cylinder, and main air cylinder.

• Comprehensive Valve Testing: Supports complete performance testing for all JZ-7 brake machine parts, including main valves, auxiliary valves, and emergency air release valves.

• High Reliability: Fundamentally improves test accuracy and avoids missed inspections through a centralized and systematic testing process.

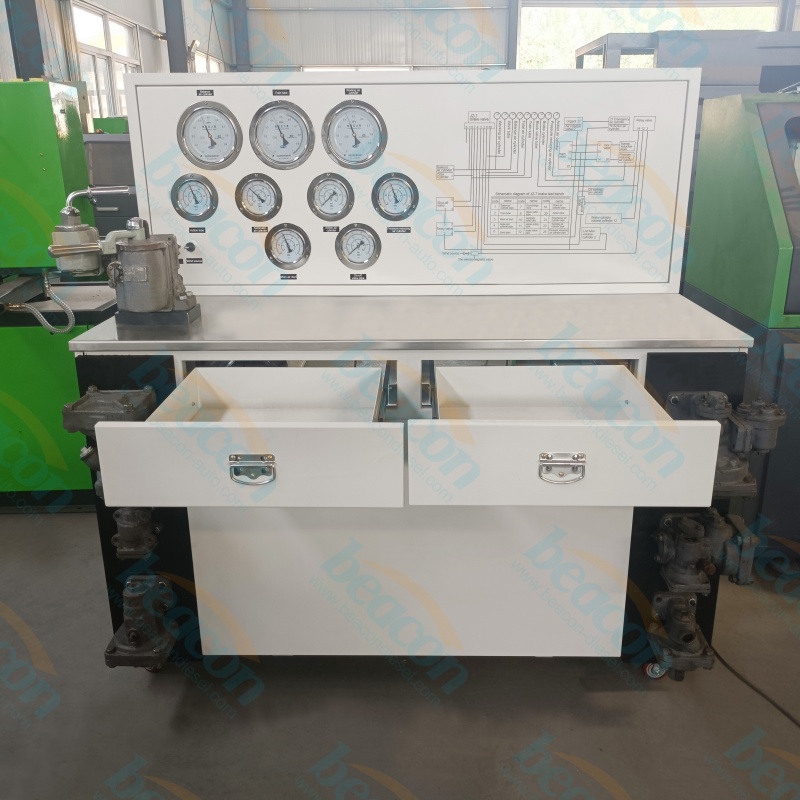

• Professional Design: Features a robust cold-plate bench with a high-quality sprayed surface, designed for long-term industrial use in railway workshops.

• Ease of Operation: Includes independent air source switches and power keys, with manual clamping systems for quick and secure valve installation.

• Improved Qualified Rate: Enhances the overall pass rate of brake components before they are reinstalled onto locomotives, ensuring operational safety.
