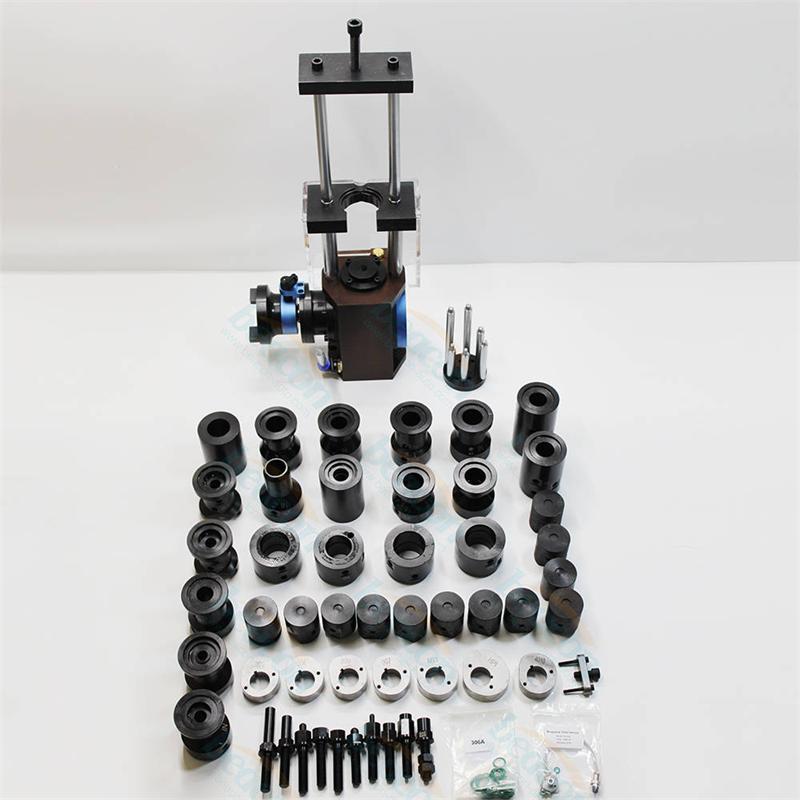

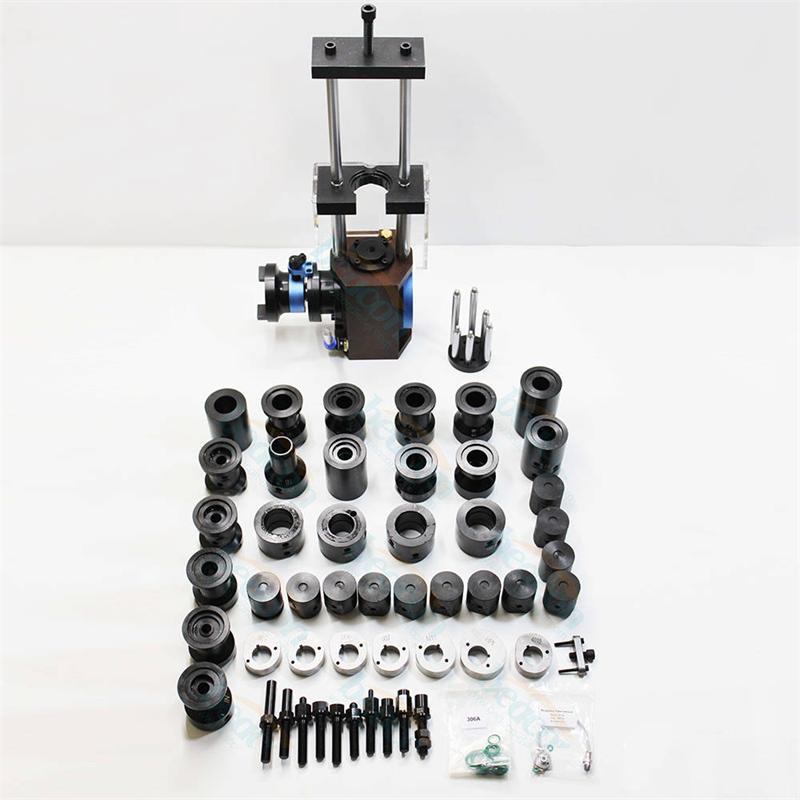

TU-E Electronic Unit Injector EUI EUP Tester Cam Box System

Electronic Unit Injector EUI EUP Tester Cam Box System

Cam Box Function and Mechanical Stroke Calibration

The cam box drives mechanical stroke calibration for electronic unit injector and unit pump families without removing them from the engine. Integrated cam-lobe profile selection, automatic stroke measurement and high-precision stroke displacement sensors ensure accurate EUI EUP diagnostic results across all 6 / 8 / 12 cylinder configurations.

Compatible EUI EUP Platforms and Engines

The cambox system is compatible with Caterpillar C7 / C9 / C12 / C15 3406E / 3408E, Bosch 0414700006 / 0414700007 / 0414701006 unit pumps, Detroit Diesel Series 60 / DD15, Cummins ISX / QSX / QSK, and Delphi EUI EUP applications. The retrofit design allows integration with existing test bench platforms.

FAQ — Frequently Asked Questions

Q1. What is the difference between the TU series cambox variants?
A: TU-C supports Caterpillar EUI EUP, TU-D supports Bosch and Delphi EUP, TU-E supports comprehensive EUI EUP diagnostic platforms with extended cam profile library.

Q2. Does the cambox work with all test bench brands?
A: Yes. The retrofit kit integrates with most professional diesel test bench platforms via standardized mounting and signal interfaces.

Q3. What engine platforms are covered?
A: Caterpillar C7 / C9 / C12 / C15 3406E, Detroit Diesel Series 60 / DD15, Cummins ISX / QSX / QSK, Bosch 0414 series and Delphi EUI EUP pumps.

Q4. Is on-site training included?
A: Yes. On-site or remote operator training is available for installation, calibration and software upgrades.

Q5. What is the warranty period?
A: The full machine is covered by a 12-month warranty including spare parts and remote support.

Supported Cam Box Families and Engine Applications

The cam box supports EUI and EUP test platforms for Caterpillar C7 / C9 / C12 / C15 3406E / 3408E, Detroit Diesel Series 60 / DD15, Cummins ISX / QSX / QSK and Bosch 0414 series unit pumps. The cam-lobe profile can be replaced for different engine families without changing the main test bench.

Cam-Lobe Profile Selection and Mechanical Stroke

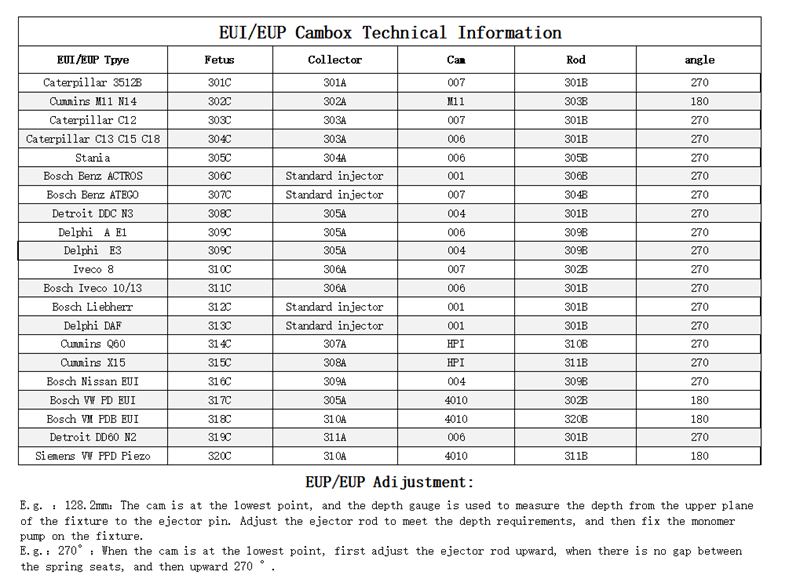

Mechanical stroke calibration is performed by selecting the matching cam-lobe profile for the engine family. Each profile provides 6 / 8 / 12 cylinder options with precise stroke measurement for EUI EUP pumps removed from the engine.

FAQ — Frequently Asked Questions

Q1. Which test bench models is this cam box compatible with?
A: It is compatible with the EUI EUP test bench platform and can be used with EUI / EUP / HEUI pump families.

Q2. Can the cam-lobe profile be replaced?
A: Yes. Cam-lobe profiles can be swapped for different engine families such as Caterpillar C7 / C9 / C12 / C15 and Detroit Diesel Series 60.

Q3. Is the cam box suitable for professional service centers?
A: Yes. The industrial-grade design supports continuous commercial operation in professional diesel workshops.

After-Sales Service and Warranty

• Remote Diagnostics: Online support via TeamViewer and remote desktop tools for software configuration, calibration profile updates and database upgrades.

• Spare Parts Supply: Genuine spare parts available for shipment within 48 hours from the regional service center.

• Training and Onboarding: On-site or remote operator training covering operation, calibration and software upgrades.

• 12 Months Warranty: Full machine warranty covers spare parts and remote support for one year after delivery.
