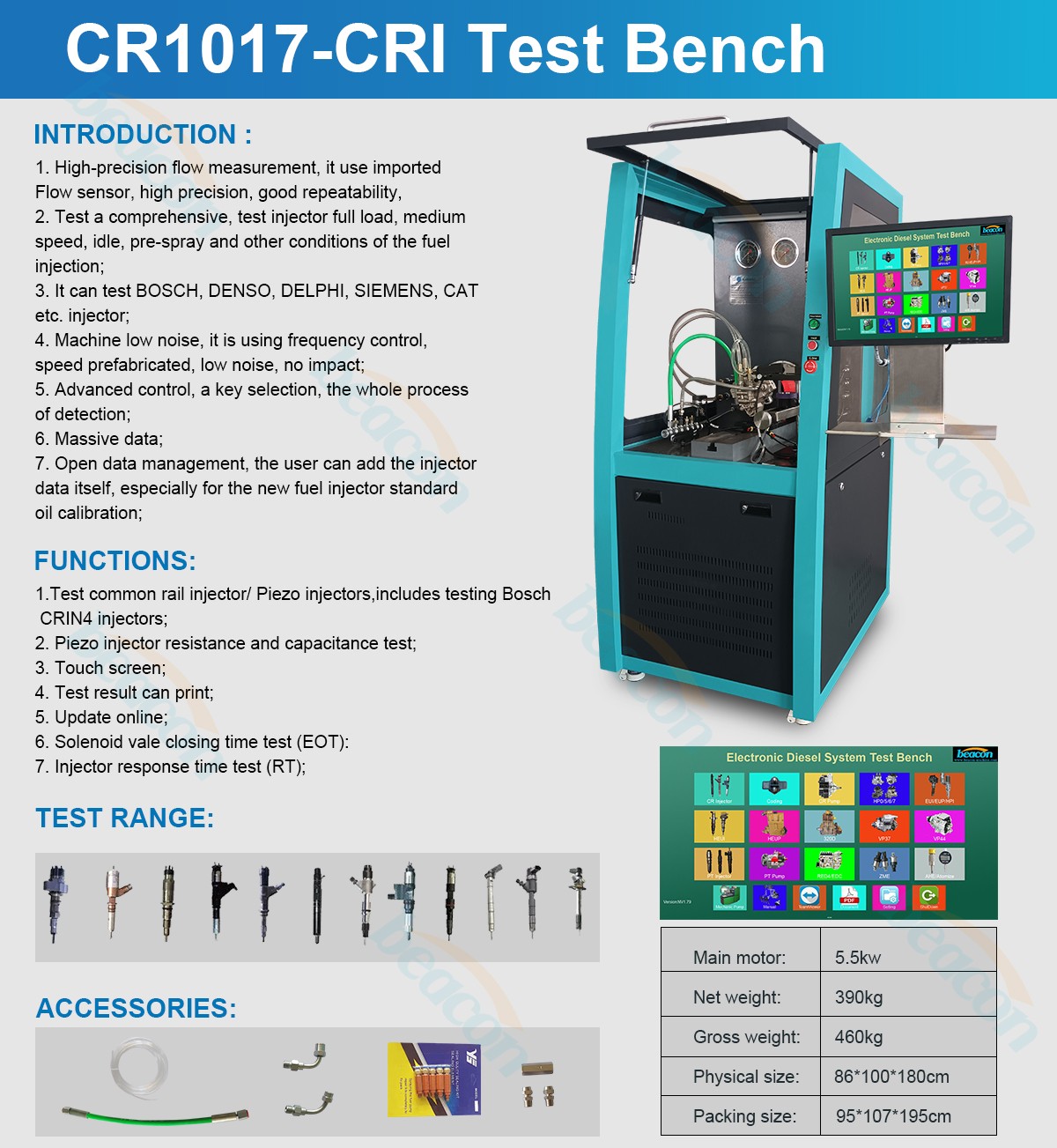

CR1017 CRI Professional Common Rail Diesel Injector Test Bench

CR1017-CRI Professional Common Rail Diesel Injector Test Bench

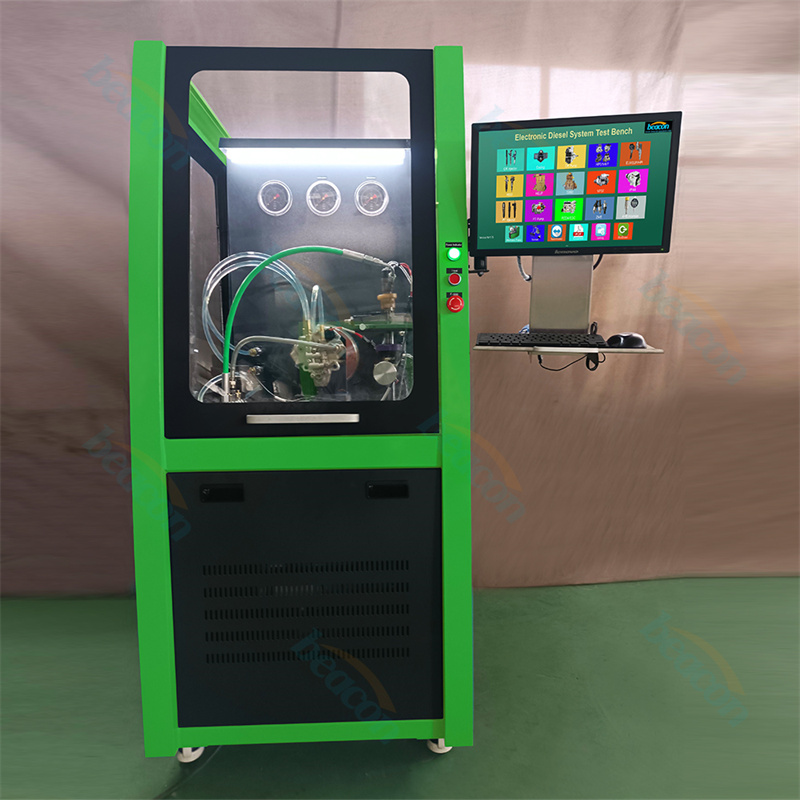

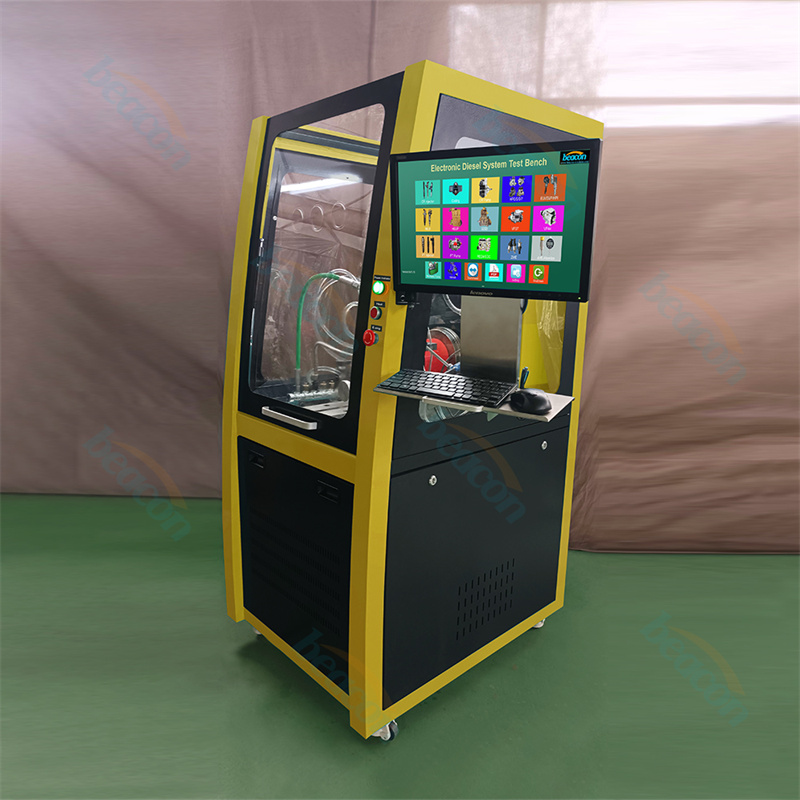

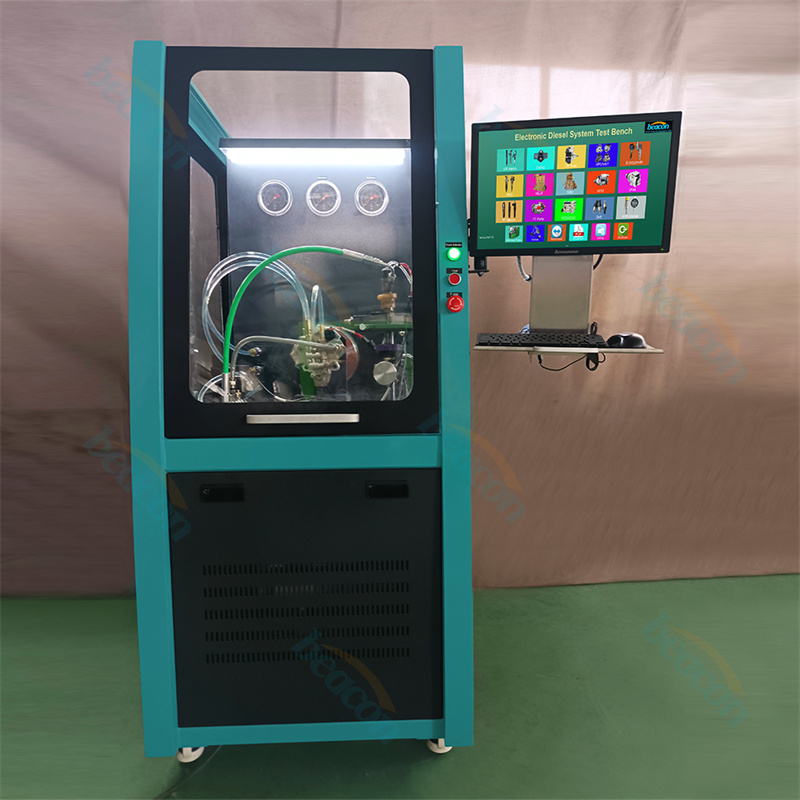

The CR1017-CRI Common Rail Diesel Injector Test Bench is a high-performance diagnostic station designed for professional diesel workshops. Powered by a 5.5KW motor with an adjustable speed range of 0-4000 r/min, it provides a stable and precise environment for testing various common rail injectors. This versatile bench supports standard electromagnetic and piezoelectric injectors from Bosch, Denso, Delphi, and Siemens. Additionally, it features advanced capabilities such as testing Bosch 4-pin injectors and XPI injectors. With its robust plywood case packaging and industrial-grade components, the CR1017-CRI ensures accurate maintenance and calibration for modern high-pressure fuel systems.

Supported High-Frequency Injectors, Engines and Pumps

The CR1017 CRI common rail diesel injector test bench is built for the most searched injector types: Bosch 4-pin injectors, CRI piezo, DRV/HPV, solenoid valve and Cummins XPI injectors (Cummins ISX, QSX15). With an optional Bosch CP4 pump it reaches 2800 bar maximum pressure, covering Mercedes Actros, Volvo D13, Kenworth T880, Peterbilt 579 and Freightliner Cascadia applications.

Key Advantages

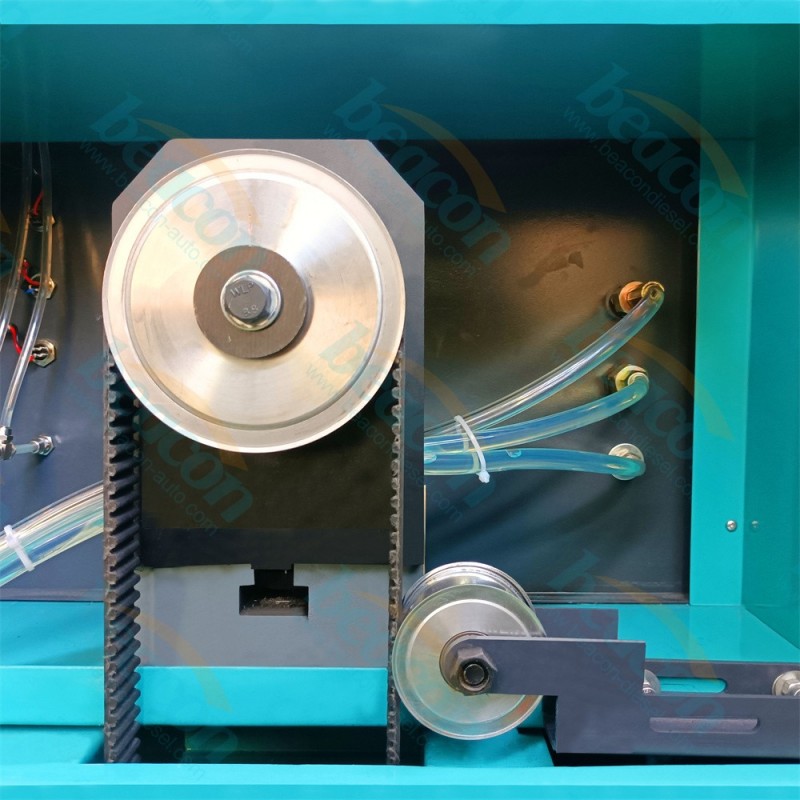

• 5.5 KW main motor, 0-4000 r/min adjustable speed
• 12V / 80V / 50V injector open voltage options
• Optional CP4 pump for 2800 bar maximum pressure
• CRI/Piezo, DRV/HPV and solenoid valve test functions

• High Performance Power: Equipped with a 5.5KW main motor, providing sufficient torque and stable speed control for heavy-duty testing.

• Versatile Injector Support: Capable of testing Bosch 4-pin injectors, XPI injectors, and standard CRI/Piezo injectors.

• Extensive Pressure Range: Standard configuration provides high-pressure testing, with an optional upgrade to Bosch CP4 pump to reach up to 2800 bar.

• Comprehensive Testing Functions: Supports testing of DRV/HPV valves, solenoid valves, and full injection performance diagnostics.

• Advanced Measurement: High-precision flow sensors and an intuitive software interface ensure laboratory-grade measurement accuracy.

• Reliable Construction: Features industrial-grade design with dimensions of 86100180 cm, optimized for workshop space and operator safety.
