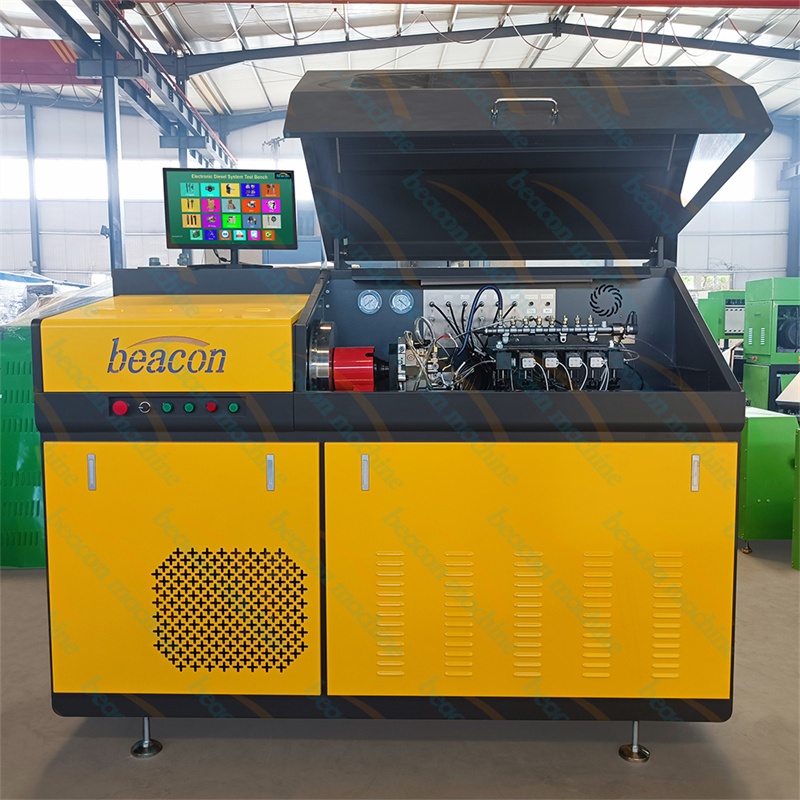

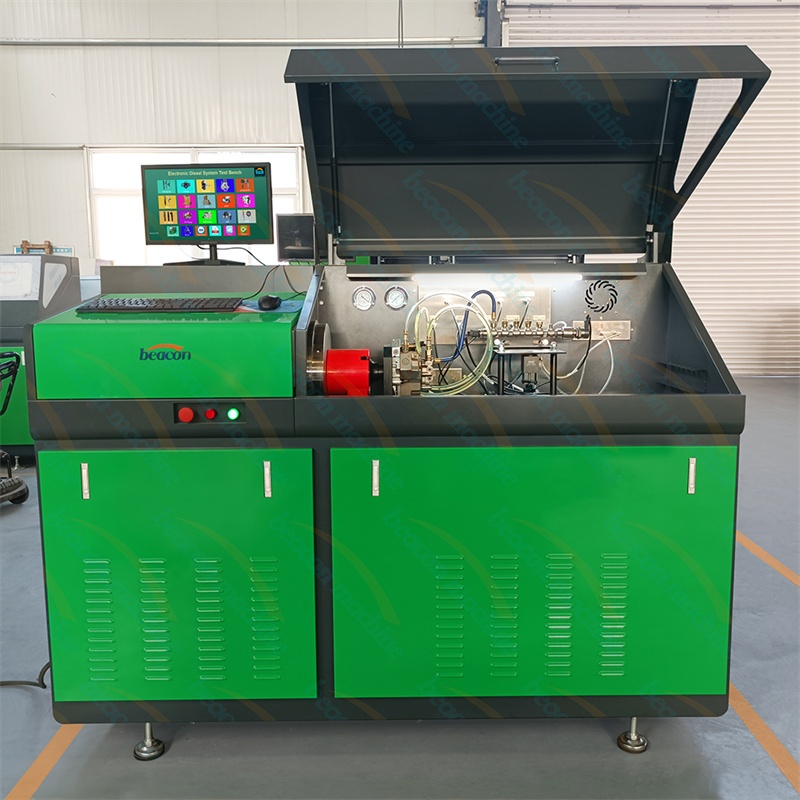

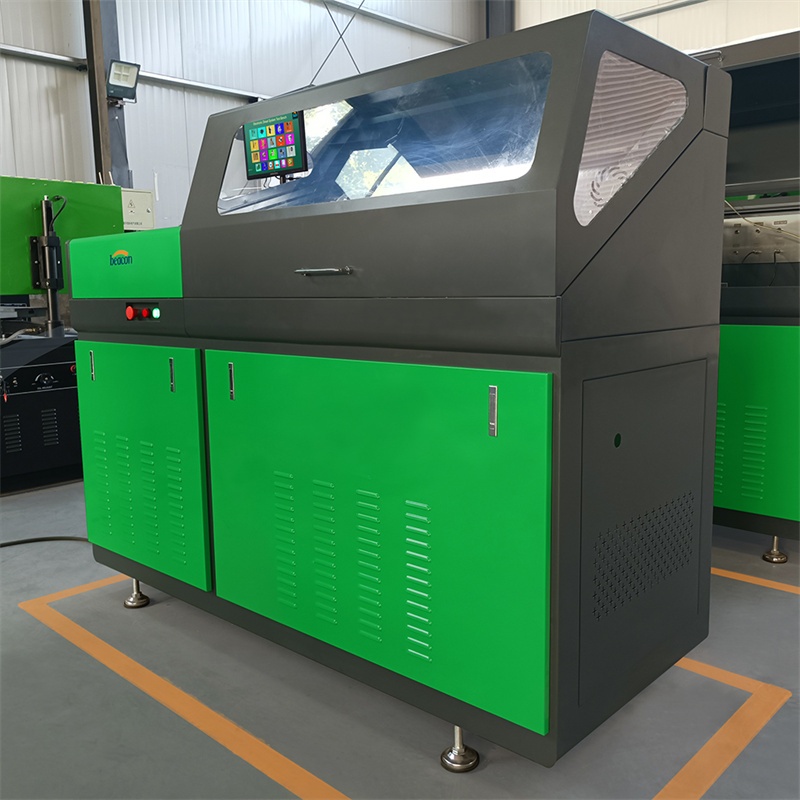

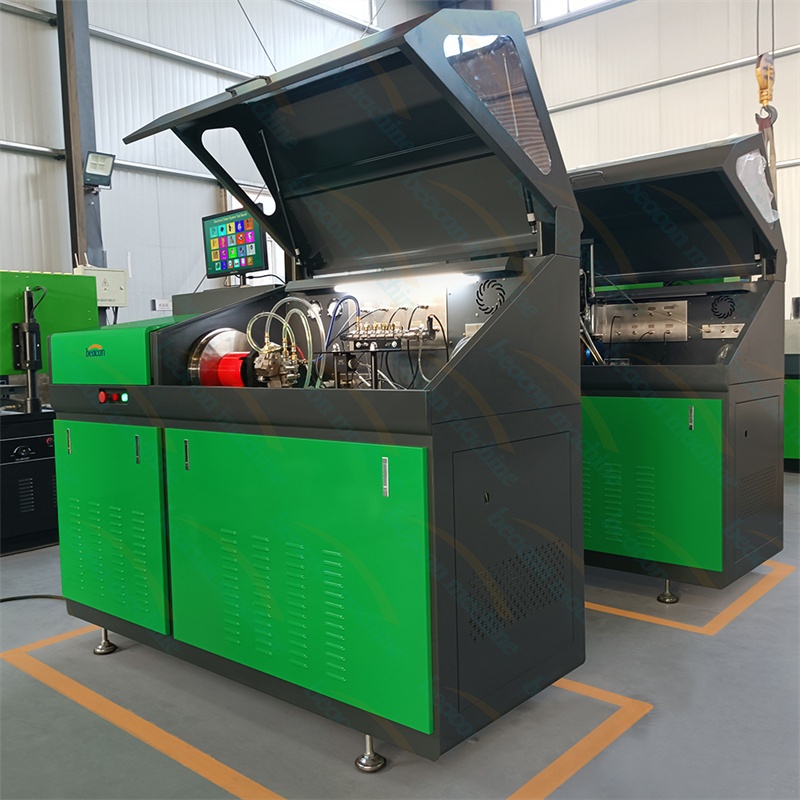

Common Rail Injector Tester CR708 Diesel Injector Test Bench for Diesel Car Engine Systems

Common Rail Injector Tester CR708 Diesel Injector Test Bench for Diesel Car Engine Systems

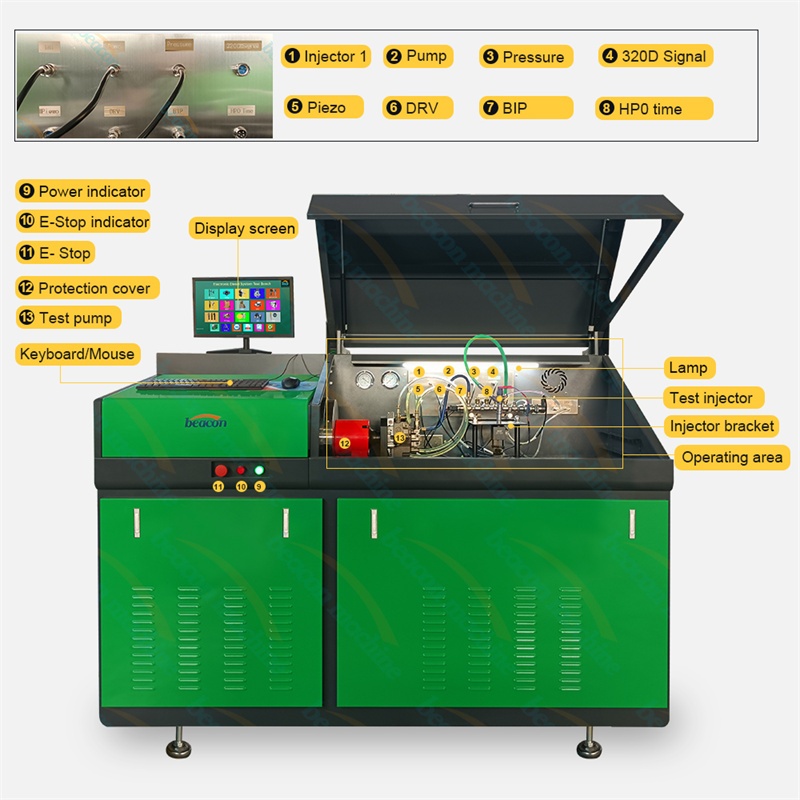

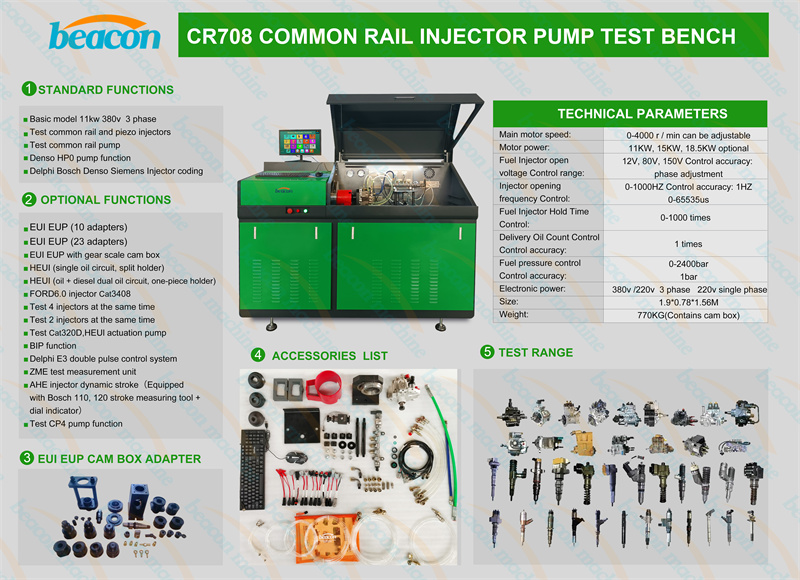

Main features

1、 Basic model 11kw 380v 3-phase

2、 Test common rail and piezoelectric injectors

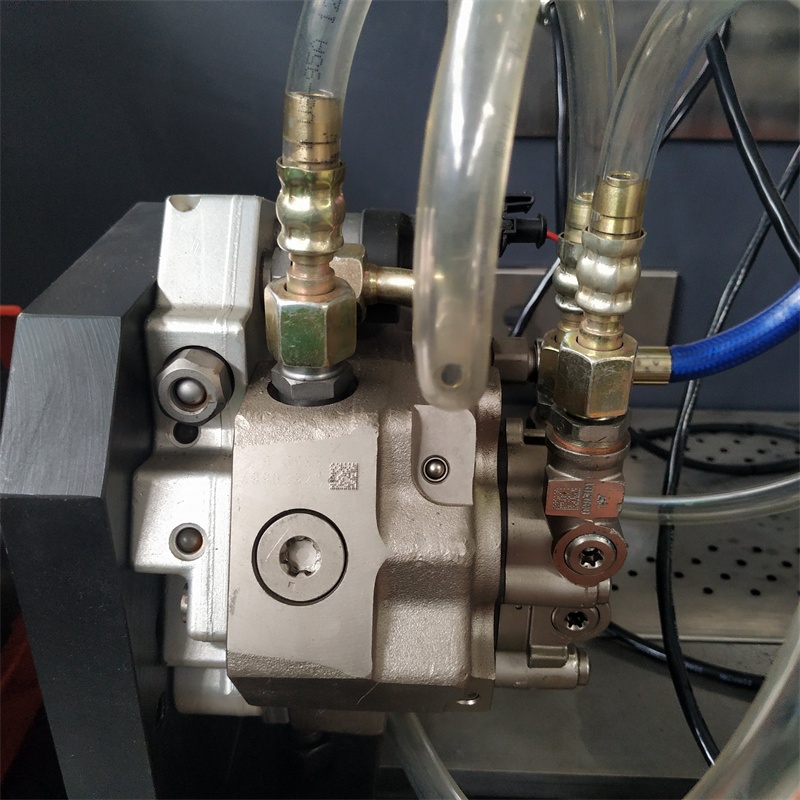

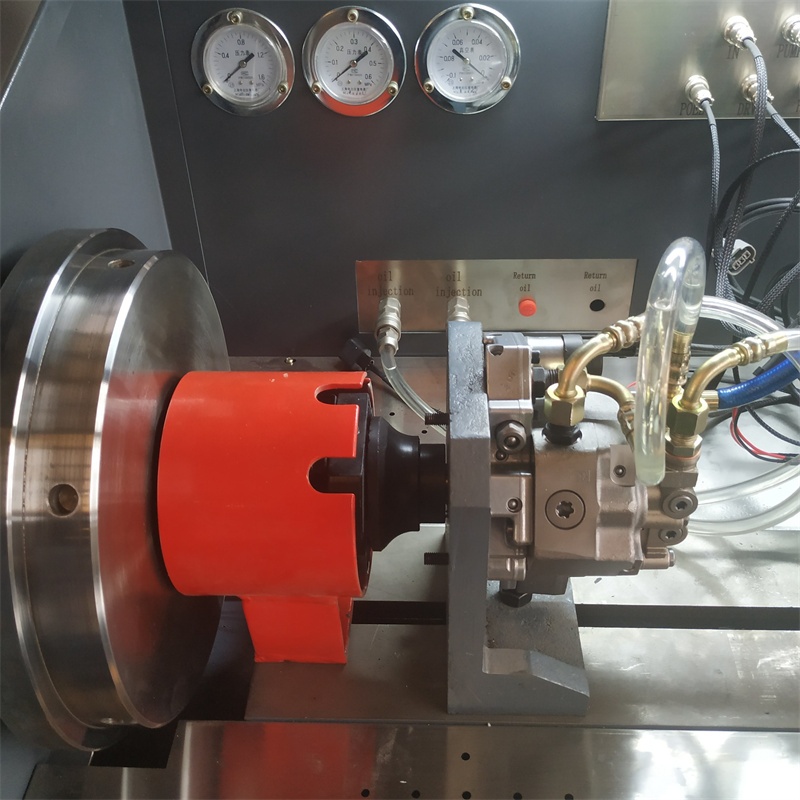

3、 Test the common rail pump

4、 Denso HP0 pump function

5、 Delphi Bosch Denso Siemens injector code

Optional function：

1、 EUI EUP with gear scale cam box

2、 HEUI (single oil circuit, split holder)

3、 HEUI (oil + diesel dual oil circuit, conjoined gripper)

4 、HEUI 3412 ISUZU function

5、 FORD6.0 Injector Carter 3408

6、 Measure six at the same time (without additional flow sensor)

7 、Measure four at the same time (without additional flow sensor)

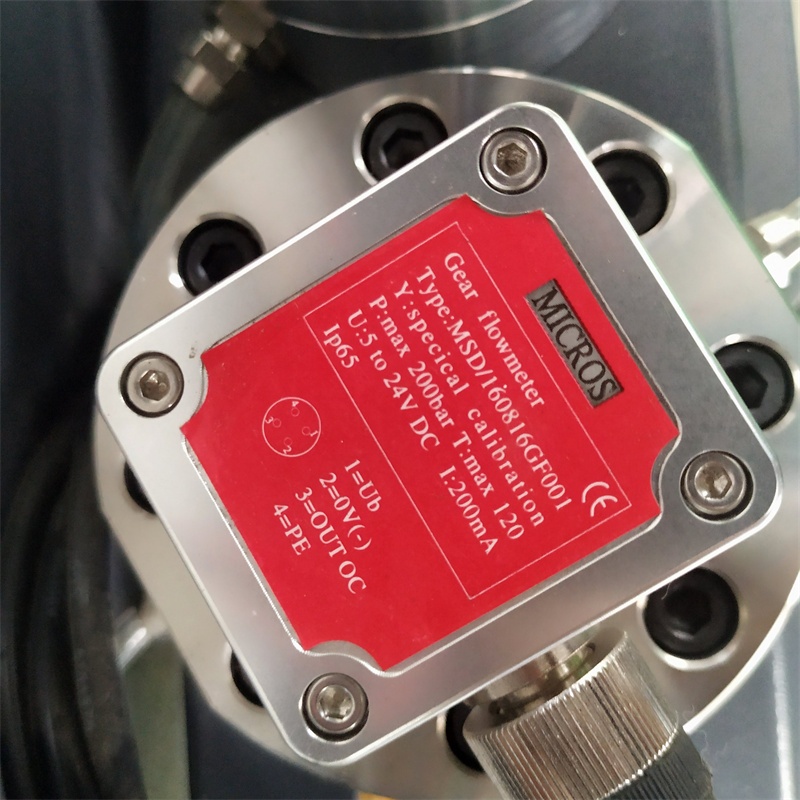

8 、Simultaneous measurement of six (additional flow sensor)

9 、Simultaneous measurement of four (additional flow sensor)

10、 Simultaneous measurement of two (additional flow sensor)

11 、Delphi, Denso, Bosch, Siemens coding

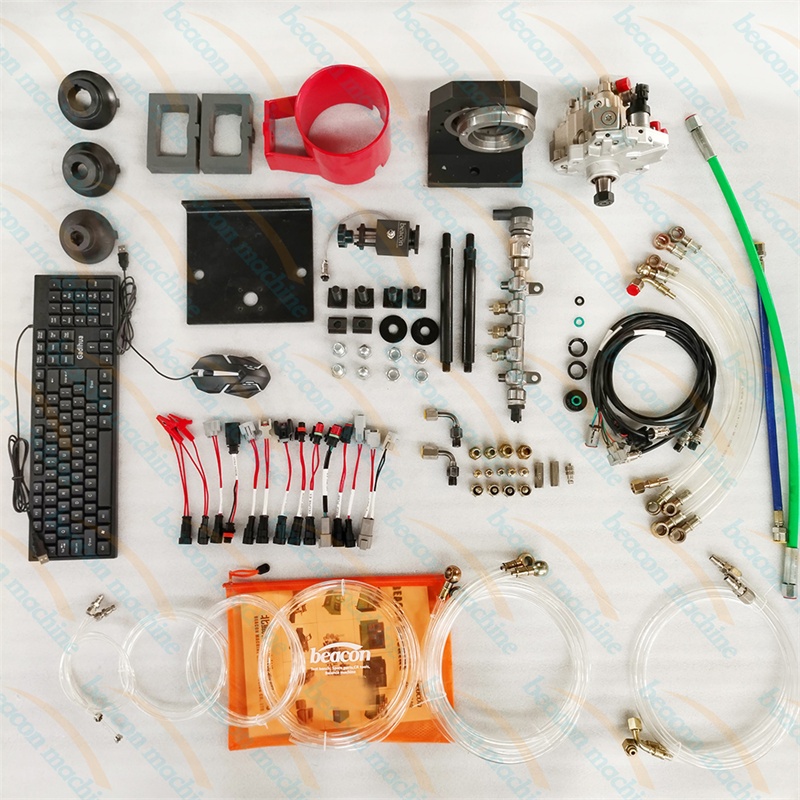

Accessories


Details

CR708 Compatible Injector OEM Reference

The CR708 common rail injector tester covers OEM injector part numbers across major brands. Use this list to confirm coverage before quoting customers.

CR708 Compatible Engines & Vehicles by Brand

Grouped by brand for quick customer lookup. CR708 covers both the injector side and the pump side across passenger, commercial, and heavy-duty applications.

Bosch (Common Rail & Piezo)

• CP1 / CP3 common rail pumps (standard)

• Euro 6 piezo piezo injectors: 0445116018, 0445120288

• PD Pumpe-Duse unit injectors (TU-C adapter): VW T5 2.5/1.9 TDI, Golf, Jetta, Passat, Audi A4/A6, Skoda Octavia

Cummins (EUI EUP & PT)

• Heavy duty: QSK19 / QSK38 / QSK50 / G50 / K50 (2867147 / 2867148 / 2867149)

• Pickup / on-highway: X15 / QSX15 (4903451), ISM11 / QSM11 / M11 / N14 PT (4954877)

• Construction & industrial: NTA855 PT (3054218 / 4077076)

Caterpillar (HEUI & EUI)

• Engines: C7 / C9 / C-9 / 3126 / 3236 / 3406 / C13 / C15 (HEUI dual oil)

• 3406E / C175 (heavy duty EUI)

• 320D pump with dedicated holder

Denso (HPO / HP Pump & HPI XPI)

• HPO pump: Komatsu SAA6D140E-3 (094000-0342), large excavator / construction machinery

• HP5 / HP6 / HP7 pump testing (holder G16-8)

• HPI XPI: Scania / ISG (2872405 / 2894920 / 2897320)

Ford (HEUI)

• 6.0 Powerstroke HEUI injectors (4C3Z9E527AA / BRM) with dual oil circuit + FORD 6.0 holder

Volkswagen / Audi (PD Pumpe-Duse)

• T5 Transporter / Caravelle / Multivan / Shuttle 2.5 TDI R5

• Golf IV / Bora / Jetta / Passat 1.9 / 2.0 / 2.5 TDI

• Audi A3 8L1 / A4 / A6 1.9 TDI

• Skoda Octavia / Fabia / Superb

CR708 Common Rail Injector Tester - Frequently Asked Questions

1. Can the CR708 test piezo injectors?

Yes. CR708 is a piezo-capable common rail injector tester. It supports Bosch piezo injectors such as 0445116018 and 0445120288 used in Euro 6 passenger cars and light commercial vehicles.

2. Which Cummins injectors can the CR708 test?

CR708 covers Cummins QSK19 / QSK38 / QSK50 / G50 / K50 (2867147 / 2867148 / 2867149), X15 / QSX15 (4903451), and NTA855 PT (3054218 / 4077076 / 4954877). For HEUI C7 C9 3126, add the dual oil circuit option.

3. Can the CR708 test Ford 6.0 Powerstroke injectors?

Yes, with the HEUI dual oil circuit option plus the FORD 6.0 holder. CR708 / CR815 / CR825 / CR917S / CR919 all support Ford 6.0 Powerstroke HEUI injectors.

4. Does the CR708 support VW PD Pumpe-Duse unit injectors?

Yes, with the TU-C cam box. CR708 with TU-C tests VW 1.9 / 2.0 / 2.5 TDI PD injectors including 0414720210, 0414720037, EJBR0221Z, 0414799017 used in T5 Transporter, Golf, Jetta, Passat, Audi A4/A6, and Skoda Octavia.

5. What is the difference between CR708 and CR919?

CR708 is the basic / mid-range model (11kW 380V 3-phase), ideal for shops focused on common rail and piezo injectors plus basic EUI EUP. CR919 is the full-function model that adds CAT HEUI dual oil circuit, Komatsu HPO, Scania HPI XPI, and more engine coverage out of the box. If your customers frequently test Ford 6.0 Powerstroke, CAT C7/C9, or Komatsu SAA6D140E-3, consider CR919.

High-Frequency OEM Injector Coverage

The platform supports thousands of injector part numbers across Bosch, Denso, Delphi, Siemens/Continental and VDO. Representative high-frequency references include Bosch 0445110295 / 0445110376 / 0445110698 / 0445116018 / 0445110561, Bosch 095000-0760 / 095000-5471 / 095000-5476 / 095000-6480 / 095000-7561, Denso 23670-0L020 / 23670-0R010 / 23670-30010 / 23670-30150 / 23670-30390, Delphi EJBR01501Z / EJBR02201Z / R00201Z / R00301D, Siemens/Continental 5WS40156 / A2C59517051, and Cummins 0445120007 / 0445120124 / 0445120129 / 0445120215.

Compatible Engines and Vehicle Applications

The diagnostic workflow covers commercial, off-road and passenger diesel platforms including Caterpillar C7 / C9 / C12 / C15 3406E, Cummins ISBe / ISDe / ISX / QSK / X15, Mercedes-Benz Actros OM471 / OM473 / OM926, Volvo D11 / D13, Scania DC13, MAN D2676, Detroit DD15, Komatsu PC200-8 / PC360-8 / WA380-6 / HD785-7, and Bosch CP1 / CP2 / CP3 / CP4 high-pressure pumps.

Introduction

 BC-CR708 common rail test bench is mainly test for common rail pump and Injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured value.

Now our the machine is our newest system , the system include huei ,eui eup function

System application

The system is suitable for detection of BOSCH, DENSO, DELPHI and

SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors, It also can test 6 common rail injectors in one time.

• Remote Diagnostics Support: Online remote assistance is available for installation, calibration and software upgrades.

• 12 Months Warranty: Full machine warranty covers spare parts and remote support for one year after delivery.

After-Sales Service and Warranty

• Remote Diagnostics: Online support via TeamViewer and remote desktop tools for software configuration, calibration profile updates and database upgrades.

• Spare Parts Supply: Genuine spare parts available for shipment within 48 hours from the regional service center.

• Training and Onboarding: On-site or remote operator training covering operation, calibration and software upgrades.

• 12 Months Warranty: Full machine warranty covers spare parts and remote support for one year after delivery.
